DO21-ST0Legacy | Firmware updates supported

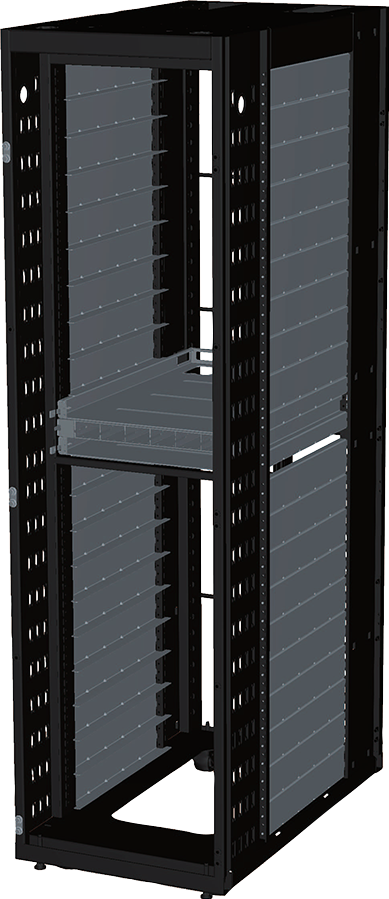

OCP Rack - 41OU 14.4kW
  • 41OU OCP 2.0 Rack
  • 1 set 1OU power shelf, 14.4 kW
  • 2 sets switch trays
  • 18OU+20OU available node spaces
Save
This model has been saved to favorite!
  • Overview
  • Specifications
  • Support
  • Related Resources

Specifications

Dimensions (WxHxD, mm)
2210 x 600 x 1067 mm
Open Rack Version
OCP 2.0
Part Numbers
6NDO21ST0MR-00
No. of Bus Bars
1
Total Capacity
41OU
Power Shelf
(Qty / Max. Watts / Location)
1 set (1OU) / 14.4 kW / at 22OU
Switch Tray
2 sets (1U) / at 21 and 23OU
Available Node Space
18OU + 20OU

[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#3] All trademarks and logos are the property of their respective owners.
