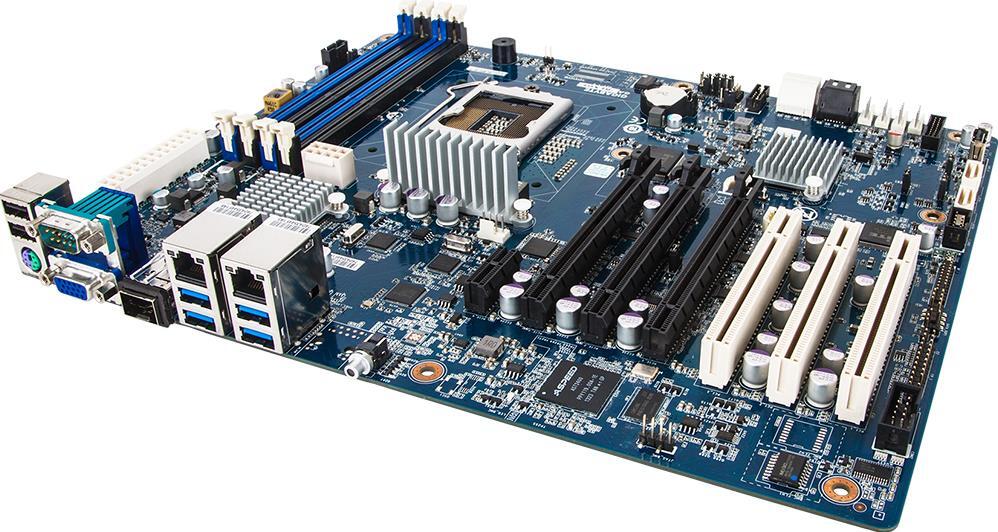

GA-6LXGLLegacy | Software updates supported

ATX
305W x 244D (mm)

Supports Intel^® Xeon^® processor E3-1200 V3 product family
Supports 4^th gen Intel^® Core™ i3 processors

1 x LGA 1150

Intel^® C224

4 x DIMM slots
Supports ECC UDIMM modules only
Supports single rank and dual rank UDIMM modules
Up to 32GB
1333/1600 MHz

2 x GbE LAN ports (Intel^® I210)
1 x 10GbE SFP+ LAN ports (Intel^® 82599)

Integrated in Aspeed^® AST2400-VB
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

-

-

4 x SATA III 6Gb/s ports
2 x SATA II 3Gb/s ports

Intel^® SATA RAID 0/1/10/5

1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x1 (Gen2 x1 bus) slot
3 x PCI slots

or (via PCIe switch):

2 x PCIe x16 (Gen3 x8 bus) slots
1 x PCIe x1 (Gen2 x1 bus) slot
3 x PCI slots

or (via PCIe switch):

1 x PCIe x16 (Gen3 x8 bus) slot
2 x PCIe x16 (Gen3 x4 bus) slots
1 x PCIe x1 (Gen2 x1 bus) slot
3 x PCI slots

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x PMBus Select jumper
1 x PMBus connector
1 x BIOS upgrade ROM
1 x Battery socket
1 x Case open intrusion header
1 x S3 Power On Select jumper
1 x BIOS recovery jumper
1 x Skip supervisor password jumper
1 x ME recovery jumper
1 x Clear CMOS jumper
1 x TPM header
4 x SATA III 6Gb/s ports
2 x SATA II 3Gb/s ports
4 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x USB 2.0 vertical Type A port
1 x SATA port 1 DOM support jumper
1 x SATA port 0 DOM support jumper
1 x ME recovery jumper
1 x IPMB connector
1 x Back plane board header
1 x SGPIO header
1 x Front panel header
1 x Serial header
1 x BMC upgrade ROM
1 x CPU fan header
1 x BMC readiness LED

4 x USB 3.0
2 x USB 2.0
1 x PS/2
1 x VGA
1 x Serial
2 x RJ45
1 x SPF+
1 x ID button with LED

1 x TPM header

Windows Server 2008 R2 (x64)
Windows Server 2008 SP1 (x32)
Windows Server 2012 (x64)

Red Hat Enterprise Linux 5.9 (x86/x64)
Red Hat Enterprise Linux 6.4 (x86/x64)

SUSE Linux Enterprise Server 11.3 (x86/x64)

VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2

-

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

1 x Driver CD
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)

Retail: 9M6LXGLMR-00
Bulk: 9M6LXGLNR-00
