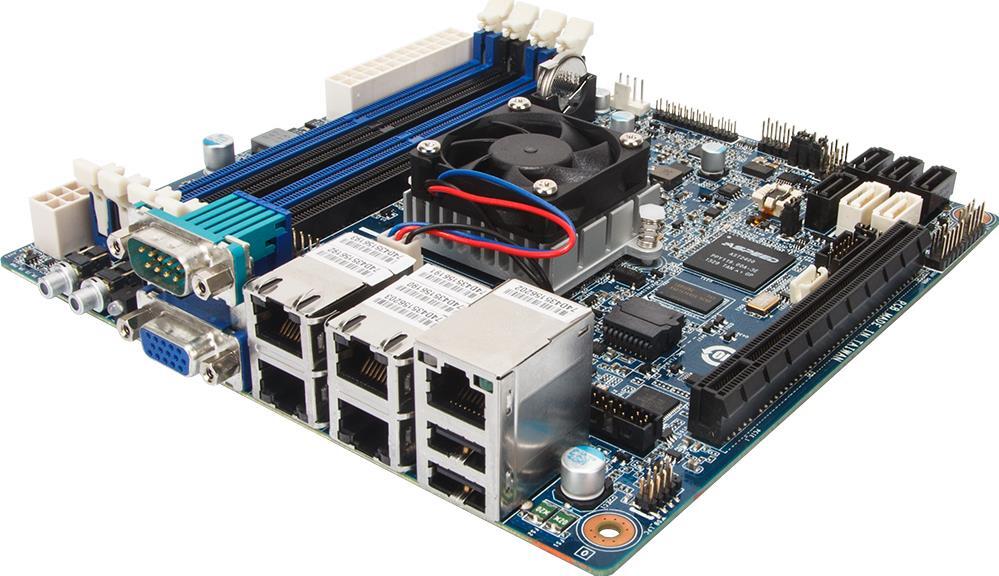

GA-9SISLLegacy | Software updates supported

Mini-ITX
170W x 170D (mm)

Intel^® Atom™ Processor C2750
8 cores / 8 threads
2.4 - 2.6 GHz
4MB L2 cache
20W max. TDP

1 x BGA 1283

-

4 x DIMM slots
Supports unbuffered ECC or non-ECC UDIMM modules
Supports single rank and dual rank UDIMM modules
Supports 1.35V and 1.5V modules
Up to 64GB
1600/1333MHz

4 x GbE LAN ports (Intel^® I354)
1 x 10/100 management LAN

Integrated in Aspeed^® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

-

-

2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports

-

1 x PCIe x16 (Gen2 x16 bus) slot

1 x 24-pin ATX main power connector
1 x 8-pin 12V auxiliary power connector
1 x CPU fan header
1 x System fan header
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
1 x CMOS battery
1 x HDD back plane board header
1 x LED header
1 x Skip supervisor password jumper
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x BMC jumper
1 x PMBUS header
1 x JTAG header
1 x Front panel header
1 x Front panel header (proprietary)
1 x SATA port DOM support jumper
1 x IPMB connector
1 x TPM header
1 x LPC header

1 x Power button with LED
1 x ID button with LED
1 x Status LED
1 x Serial
1 x VGA
5 x RJ45
2 x USB 2.0

1 x TPM header

Windows Server 2008 Enterprise R2 SP1 (x64)
Windows Server 2012 R2 (x64)

Red Hat Enterprise Linux 6.4 (x64)

SUSE Linux Enterprise Server 11.3 (x64)

Aspeed^® AST2400 management controller
Avocent^® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
-Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)

1 x 24-pin ATX main power connector
1 x 8-pin 12V auxiliary power connector

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

1 x Driver CD
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)

Retail: 9M9SISLMR-00
