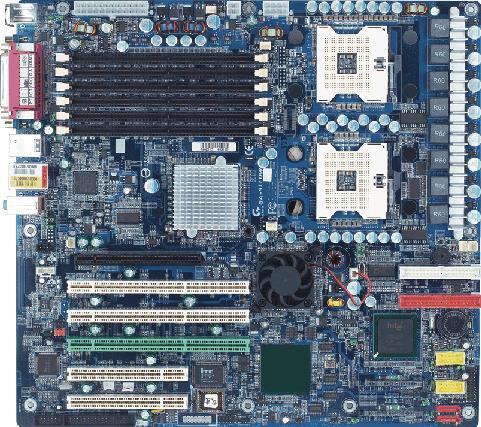

GA-9ITDW-CNLegacy | Software updates supported
- Intel® E7525 MCH with PCI-Express x 16 bridge, Intel® ICH5R IO controller hub supports PCI -X 2.0, Intel® 6700 PXH 64Bit PCI-X Hub
- Intel®new dual Xeon™(Nocona) processor with front side bus 800MHz and Hyper Threading technology
- ECC/registered DDRII 400 memory in 6 DIMMs
- PCI-E X16 graphic slot X 1, PCI-X 64bit/133MHz X 1, PCI-X 64bit/66~100MHz X 2, PCI 32bit/33MHz X 2
- Broadcom® BCM5751T Gigabit Ethernet
- ITE® IT8712F-A Super I/O
- ATX 12”x13” ETAX form factor
Specifications
CPU
- Dual Intel® Xeon™ (Nocona) support up to 3.8GHz
- Supports 800MHz/Socket 604
Chipset
- Intel® E7525 MCH
- Intel® ICH5R IO controller hub
- Intel ®6700PXH 64 bit PCI-X hub
LAN
- Build in Broadcom®BCM5751T Gigabit Ethernet
Audio
- AC' 97
IDE / SCSI
- Intel® ICH5R chipset supports 2 x SATA
RAID
- Intel®ICH5R software RAID supports RAID 0, 1
Expansion Slots
- 1 x PCI-X slot support 64/133MHz
- 2 x PCI-X slot support 64/66M~100MHz (Green slot for ZCR card)
- 2 x PCI slot supports 32/33MHz
- 1 x PCI-E slot by x16
Rear I/O
- 2 x PS/2
- 4 x USB 2.0 connectors
- 1 x LAN RJ45
- 1 x IEEE1394A
- 1 x Audio
- 1 x Parallel port
