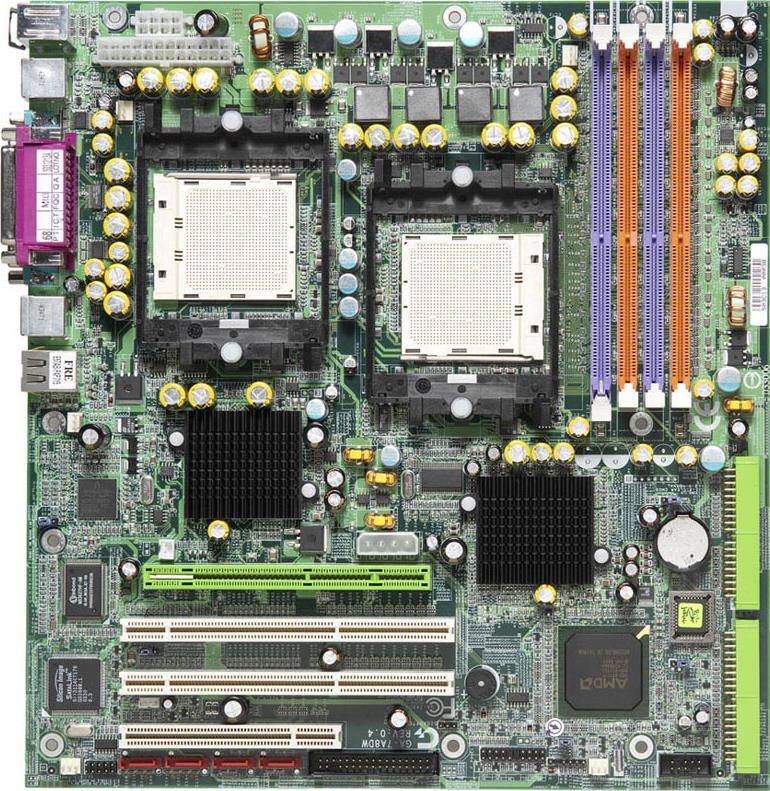

GA-7A8DWLegacy | Software updates supported
- Support AMD Dual K8 Sledge Hammer (Socket 940,FSB up to 800MHz)
- AMD 8151 AGP bridge, 8131 PCI-X tunnel, and 8111 chipsets
- Max.8GB registered (ECC) DDR-400memory in 4DIMM slots
- One AGP 8X slot ,two 64bit/133MHz PCI-X slots, one 32-bit/33MHz PCI slots
- One Broadcom 5705 Gigabit Ethernet design to fulfill large Ethernet bandwidth.
- SiI3114 four ports SATA with RAID 0,1, 0+1
- X86 architecture 64 bit /32 bit OS & application compatible.
- Hyper-Transport Technology enable ultra high speed(a peak aggregate bandwidth of 12.8 GB/s) interconnection.
- AGP 8X slot design reserve flexibility for high end workstation user enjoy high quality and 3D graphic solution.
- SATA new storage technology with data mirror , striping RAID function.
- Dimension: 12”x11.3” design to fit ATX chassis screw hole.
Specifications
CPU
- Supports Dual AMD® Opteron Processor
- 800MHz Hyper Transport bus
Chipset
- AMD® 8111
- AMD® 8131
- AMD® 8151(AGP8X bridge controller)
LAN
- Build in Broadcom® BCM 5705 single chip Gigabit Ethernet controller
- Wake On LAN (WOL)
- Adapter Fault Tolerance (AFT)
- Adaptive Load Balancing (ALB)
- EtherChannel* (FEC/GEC)
Video
- N.A
IDE / SCSI
- Silicon Image® SiI3114 4 ports SATA Controller
- Support RAID 0,1,0+1
RAID
- SiI3114 support RAID0,1,0+1
Expansion Slots
- 2 x PCI-X 133/100/66 MHz
- 1 x PCI 32/33 MHz
- 1 AGP 4x/8X Pro slot
Rear I/O
- 2 x PS/2 (Keyboard and Mouse Connectors)
- 4 x USB (Rear)
- 2 x COM (1xRear, 1xBy.Cable)
- 1 x LPT
- 1 x LAN RJ45
