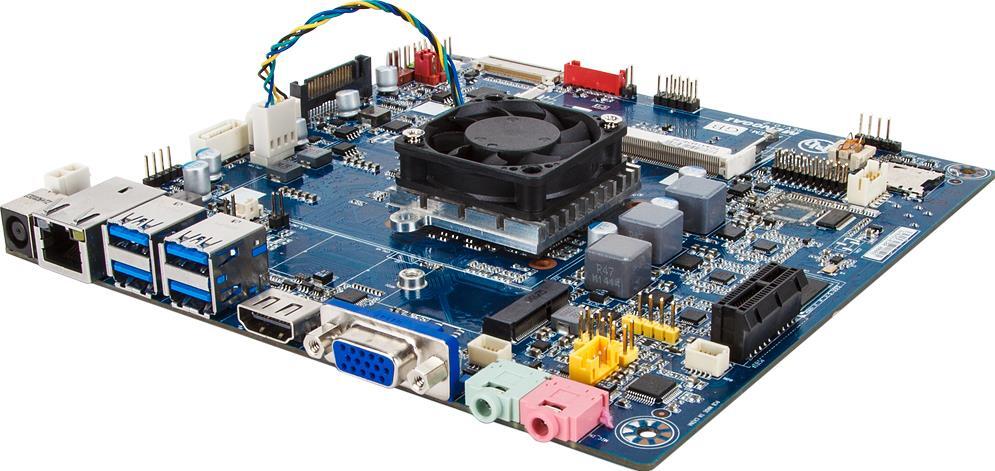

MZBSWAILegacy | Software updates supported
Intel Celeron N3150
Build to Order
- Thin Mini-ITX form factor
- Intel® Celeron® N3150 processor
- 1 x DDR3L SO-DIMM, up to 8GB 1600MHz
- 1 x GbE LAN port (Realtek RTL8111)
- 1 x M.2 slot
- 2 x SATA III 6Gb/s ports
- 1 x PCIe x1 (2.0 x1 bus) slot
- Overview
- Specifications
- Support
Specifications
Form Factor
Thin Mini-ITX
170W x 170D (mm)
Operating Properties
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Intel Celeron N3150 processor
4 cores, 4 threads
1.6 - 2.08 GHz
2MB L2 cache
6W max. TDP
Socket
1 x BGA 1170
Memory
1 x SO-DIMM slot
Supports 1.35V DDR3L memory
Up to 8GB
1600MHz
LAN
1 x GbE LAN port (Realtek® RTL8111HS)
Video
Intel HD graphics supports triple display
- 1 x HDMI up to 3840 x 2160 @ 30Hz
- 1 x VGA up to 2048 x 1536 @ 60Hz
- 1 x LVDS up to 1920 x 1200 @ 60Hz
Audio
Realtek ALC887
SATA
2 x SATA III 6Gb/s ports
RAID
-
Expansion Slots
1 x PCIe x1 (2.0 x1 bus) slot
1 x M.2 slot:
- E-key
- PCIe 2.0 x1 signal
- Supports NGFF-2230 cards
Internal I/O
1 x 2-pin ATX 12V power connector
2 x SATA III 6Gb/s ports
1 x SATA power connector
1 x LVDS 18/24bit connector
1 x CPU fan header
1 x System fan header
3 x USB 2.0 headers (for up to 3 x USB 2.0 ports)
1 x Front panel header
1 x Front audio header
1 x Serial header
1 x LPT header
1 x Digital microphone header
1 x Backlight switch header
1 x FPD power jumper
1 x LCD selection jumper
1 x Clear CMOS jumper
1 x MON jumper
Rear I/O
1 x DC-in
1 x RJ45
4 x USB 3.0
1 x HDMI v1.4
1 x VGA
1 x Line-out
1 x MIC-in
TPM
-
OS Compatibility
Windows 10 (x64)
Windows 8.1 (x64)
Windows 8 (x64)
Windows 7 (x32/x64)
PSU Connectors
1 x 2-pin ATX 12V power connector
Power Supply
1 x DC-in 12-19V
Packaging Content
1 x MZBSWAI
1 x I/O shield (44.45mm)
1 x I/O shield (25.54mm)
1 x SATA power cable
1 x screw
Ordering Information
9MZBSWAINR‐SI
