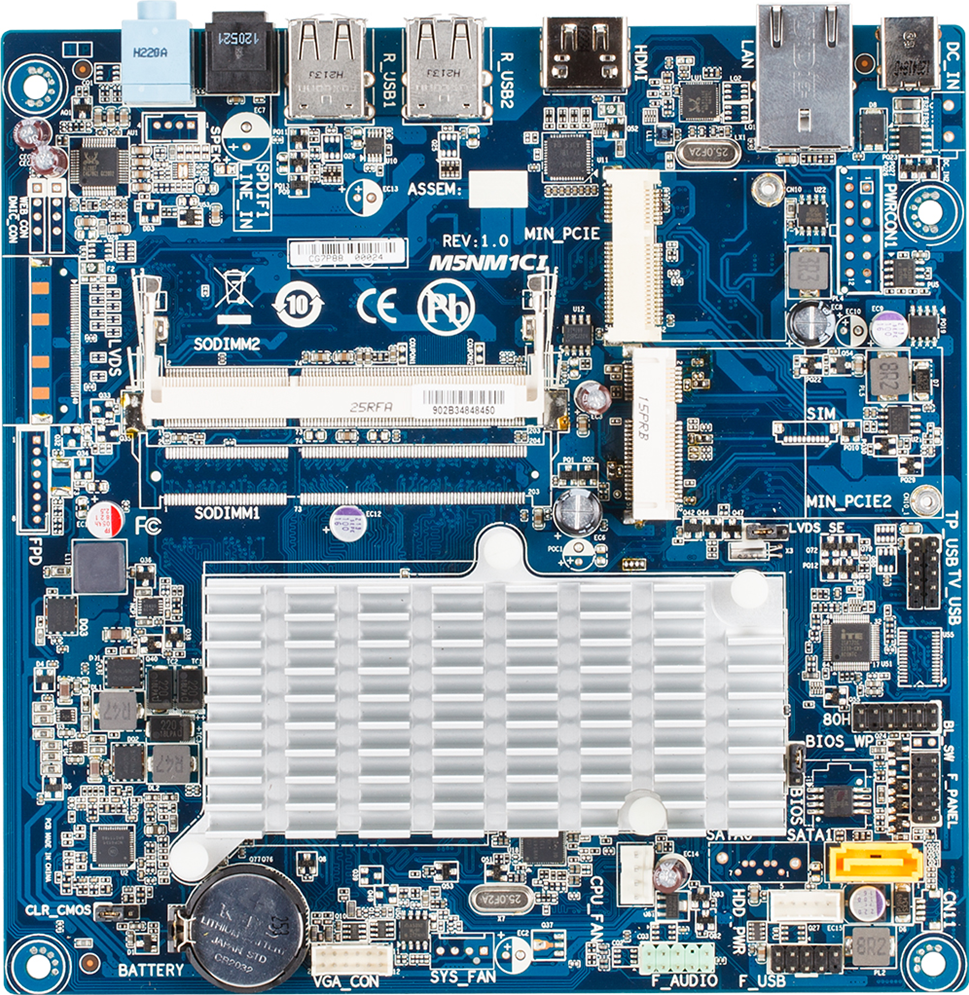

M5NM1CILegacy | Software updates supported
Intel® NM10 chipset
- Thin Mini-ITX form factor
- Intel® Atom™ D2550 1.86GHz processor
- 2 x SO-DIMM, up to 8GB 1333MHz
- 1 x GbE LAN
- 2 x SATA II 3Gbs ports
- Specifications
- Support
Specifications
Form Factor
Thin Mini-ITX form factor
170 x 170 mm
6.7" x 6.7"
170 x 170 mm
6.7" x 6.7"
CPU
BGA 559 socket
Intel® Atom™ D2550 (1.86GHz, dual core, BD support, 10W TDP)
Intel® Atom™ D2550 (1.86GHz, dual core, BD support, 10W TDP)
Chipset
Intel® NM10 chipset
Memory
2 x SO-DIMM slots
Up to 8GB DDR3 memory
1333MHz
Up to 8GB DDR3 memory
1333MHz
LAN
1 x GbE LAN
Realtek RTL8111E
Realtek RTL8111E
Video
Intel® GMA3650
Supports DirectX 9
Supports DirectX 9
Audio
Realtek ALC887
- Support High Definition Audio
- Support speaker 2 Channel: 3W / 4ohm 2ch
- Support 7.1 Channel Jack
SATA
2 x SATA II 3Gbs
RAID
-
Expansion Slots
1 x mSATA
1 x Mini-PCIe (half size)
1 x Mini-PCIe (half size)
Internal I/O
2 x USB 2.0
2 x COM
1 x Front audio header
1 x System fan
1 x CPU fan
1 x Front panel header
1 x ATX DC In (4 Pin)
1 x ATX DC In (24 Pin)
2 x COM
1 x Front audio header
1 x System fan
1 x CPU fan
1 x Front panel header
1 x ATX DC In (4 Pin)
1 x ATX DC In (24 Pin)
Rear I/O
4 x USB 2.0
1 x HDMI-Out
1 x SPDIF-Out
1 x Audio jack
1 x RJ45
1 x DC-In
1 x HDMI-Out
1 x SPDIF-Out
1 x Audio jack
1 x RJ45
1 x DC-In
Power Supply
DC-In 19V
