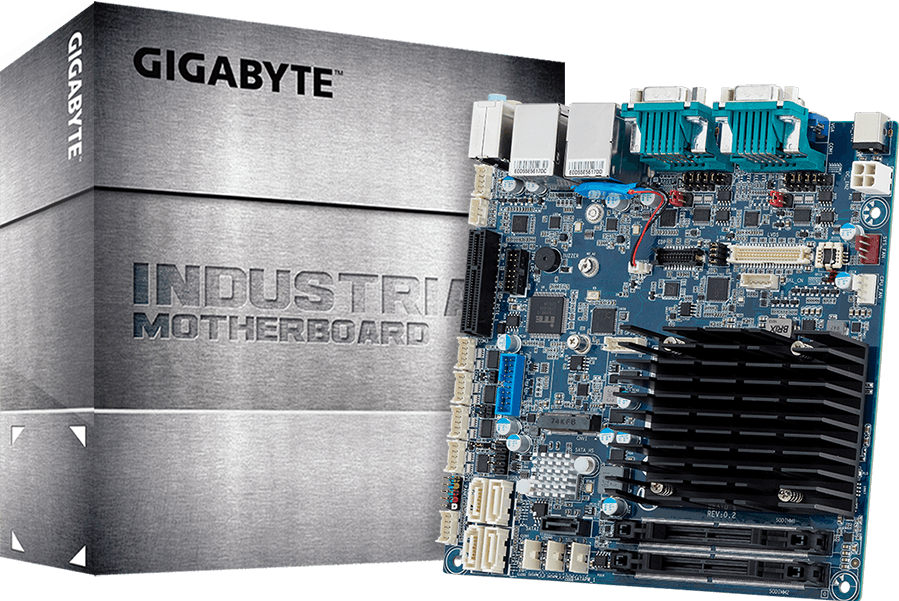

Intel® Celeron® J4105
- Mini-ITX form factor
- Intel® Celeron® Processor J4105
- Dual Channel DDR4, up to 2400Mhz, 2 x SO-DIMMs
- HDMI 2.0a, D-Sub, eDP (in option), LVDS ports for multiple display
- 2 x GbE LAN ports
- 4 x RS232 COM ports
- 2 x RS232/422/485/5V/12V COM ports
- 5 x SATA III 6Gb/s with one SATA DOM supported
- 1 x M.2 NGFF-2280 SATA SSD socket
- 1 x M.2 E-key socket for CNVi interface module
- High quality audio codec
- 1 x PCIe x4 (Gen2 x 2) expansion slot
- Overview
- Specifications
- Support
Specifications
Form Factor
Mini-ITX
170W x 170D (mm)
170W x 170D (mm)
Operating Properties
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Intel® Celeron® Processor J4105
14nm, 4 cores, 4 threads
1.5 - 2.5 GHz
4MB L2 cache
TDP 10W, fan-less design
14nm, 4 cores, 4 threads
1.5 - 2.5 GHz
4MB L2 cache
TDP 10W, fan-less design
Socket
1 x BGA 1090
Memory
2 x DDR4 1.2V SO-DIMM slots
Up to 2400Mhz
Max. memory capacity 8GB
Up to 2400Mhz
Max. memory capacity 8GB
Flash Memory
-
LAN
2 x GbE LAN ports (Realtek® RTL8111HS)
Video
Intel® HD Graphics 600
1 x HDMI port, supporting a maximum resolution of 3840x2160@60 Hz
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x eDP connector, supporting a maximum resolution of 3840x2160@60 Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200@60 Hz
* eDP connector is alternative with LVDS port, only one can be worked at the same time
1 x HDMI port, supporting a maximum resolution of 3840x2160@60 Hz
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x eDP connector, supporting a maximum resolution of 3840x2160@60 Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200@60 Hz
* eDP connector is alternative with LVDS port, only one can be worked at the same time
Audio
Realtek® ALC269Q
SATA
5 x SATA 6Gbps
- 4 x from Marvell 88SE9230
- 1 x from J4105 with SATA DOM supported
- 4 x from Marvell 88SE9230
- 1 x from J4105 with SATA DOM supported
RAID
Marvell® SATA RAID 0/1/10
Expansion Slots
1 x PCIe x4 (Gen2 x 2)
1 x M.2 slot:
- M-key
- SATA 6Gb/s
- Supports NGFF-2280 cards
1 x M.2 slot:
- E-key
- Supports NGFF-2230 CNVi cards only
1 x M.2 slot:
- M-key
- SATA 6Gb/s
- Supports NGFF-2280 cards
1 x M.2 slot:
- E-key
- Supports NGFF-2230 CNVi cards only
Internal I/O
1 x 4-pin ATX 12V power connector
1 x eDP connector (in option)
1 x LVDS connector
1x Backlight control connector
5 x SATA 6Gb/s connectors
3 x SATA power connectors
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front audio header
1 x Speaker out header
1 x USB 3.0 headers
1 x USB 2.0 headers
4 x COM headers (RS232)
1 x TPM header (TPM module kit is in option)
2 x LAN LED headers
1 x Case open header
1 x GPIO header
1 RAID LED header
1 x AT mode jumper
1 x Buzzer
1 x eDP connector (in option)
1 x LVDS connector
1x Backlight control connector
5 x SATA 6Gb/s connectors
3 x SATA power connectors
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front audio header
1 x Speaker out header
1 x USB 3.0 headers
1 x USB 2.0 headers
4 x COM headers (RS232)
1 x TPM header (TPM module kit is in option)
2 x LAN LED headers
1 x Case open header
1 x GPIO header
1 RAID LED header
1 x AT mode jumper
1 x Buzzer
Rear I/O
1 x DC in jack
3 x Audio jacks(Line in, Line out, Mic in)
2 x COM (RS232 /422 /485 and RI/5V/12V)
1 x HDMI 2.0a (HDCP 2.2)
1 x D-Sub
2 x RJ45
2 x USB 2.0
2 x USB 3.0 type A ( ( 1 x USB3.0 Type A + 1 x USB3.0 Type C in BOM option)
3 x Audio jacks(Line in, Line out, Mic in)
2 x COM (RS232 /422 /485 and RI/5V/12V)
1 x HDMI 2.0a (HDCP 2.2)
1 x D-Sub
2 x RJ45
2 x USB 2.0
2 x USB 3.0 type A ( ( 1 x USB3.0 Type A + 1 x USB3.0 Type C in BOM option)
TPM
1 x TPM header
OS Supported
Win 10 64bit
PSU Connectors
1 x 12 DC-in or
1 x 12V power connector (2 x 2 pin)
1 x 12V power connector (2 x 2 pin)
Packaging Content
Capacity: 20pcs
Carton size: 550x451x330 (mm)
Content:
1 x IO Shield
2 x SATA power cables (300mm)
Carton size: 550x451x330 (mm)
Content:
1 x IO Shield
2 x SATA power cables (300mm)
Ordering Information
Motherboard: 9MZGLKAINR-SI
Optional kit:
TPM 1.2 module: 9CMUFLNR-00
TPM 2.0 module: 9CTM000NR-00
Optional kit:
TPM 1.2 module: 9CMUFLNR-00
TPM 2.0 module: 9CTM000NR-00
