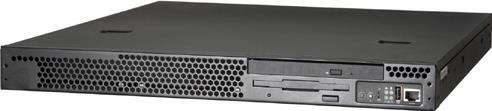

GS-SR157LLegacy | Firmware updates supported
- Intel®Pentium 4 LGA775 support Hyper-Threading and EM64T technology
- Two SATA internal fixed storage devices support RAID 0,1 features
- Advanced IPMI1.5 managerment function with GIGABYTE™Server Managemment Utility for remote management and console redirection
- Well DIMM slot placement to get better thermal condition
- Four phase voltage design for processor with better reliability and MTBF
- Specifications
- Support
- Related Resources
Specifications
CPU
- Supports Single Intel®Pentium 4 CPU
- Supports 800MHz FSB
- Socket LGA 775
Chipset
- Intel®E7221
- Intel®ICH6R
- Intel®6702 PXH-V
LAN
- Dual Intel®82541 PI GbE
Video
- Built in Intel® E7221 MCH
RAID
- Build in Intel®ICH6R support SATA RAID 0,1
Peripheral Drives
- 1 x Standard FDD
- 1 x Slim 24x CD-ROM
Expansion Slots
- 1 x PCI-X 64/66~100MHz (Full-height)
- 1 x PCI-X 64/66~100MHz (Low-profile)
Power Supply[#1]
- Maximum 350W single Power Supply supported
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
