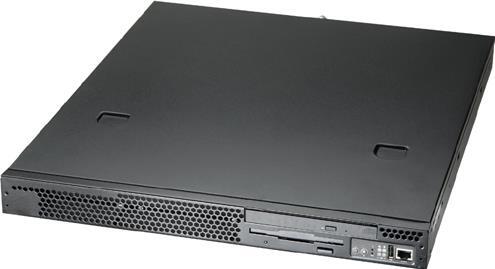

GS-R114LLegacy | Firmware updates supported
- Supports Intel® new generation Pentium® 4/D LGA775 processor up to FSB 800/1066 MHz
- Intel® E7230 and ICH7R, the next generation chipsets with maximum 8GB DDR2 533/667 supported
- Two internal SATA 3.0Gb/s HDD with Host RAID 0,1 function
- On board ATI® ES1000 16MB graphic controller
- One PCI-E x8 and one PCI-X 133MHz full height slots
- Advanced IPMI 1.5/2.0 management function with GIGABYTE Server Management Tool (GSMT)
- 16.8"W * 1.7"H * 19.7"D 1U chassis
- Specifications
- Support
- Related Resources
Specifications
CPU
- Single Intel® Pentium® 4/D LGA775 processor
- FSB 800/1066 MHz
Chipset
- Intel® 7230 MCH
- Intel® ICH7R
- Intel® 6702 PXH-V
LAN
- Dual Intel®82573 GbE
- Supports ASF 2.0to protect remote transactions
Video
- ATI®ES1000 with 16MB DDR SDRAM
RAID
- Onboard Intel®ICH7R Controller supports SATAII RAID 0,1
Peripheral Drives
- 1 x Slim FDD
- 1 x Slim 24x CD-ROM
Expansion Slots
- 1x PCI-E x8
- 1 x PCI-X 64Bit/133MHz
- 2 x PCI-X 64Bit/100MHz (Optional)
- PIC-X Full-Height Slots
Power Supply[#1]
- 350W
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
