• Supports Intel® Core™ 14th/ 13th /12th processors
  • Unparalleled Performance:Hybrid 6+2+1 Phases Digital VRM Solution
  • Dual Channel DDR4:2*DIMMs XMP Memory Module Support
  • Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
  • EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design
  • Fast Networks:2.5GbE LAN
  • Extended Connectivity:HDMI, D-Sub
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
OVERVIEW
PERFORMANCE
CONNECTIVITY
PERSONALIZATION
ULTRA DURABLE

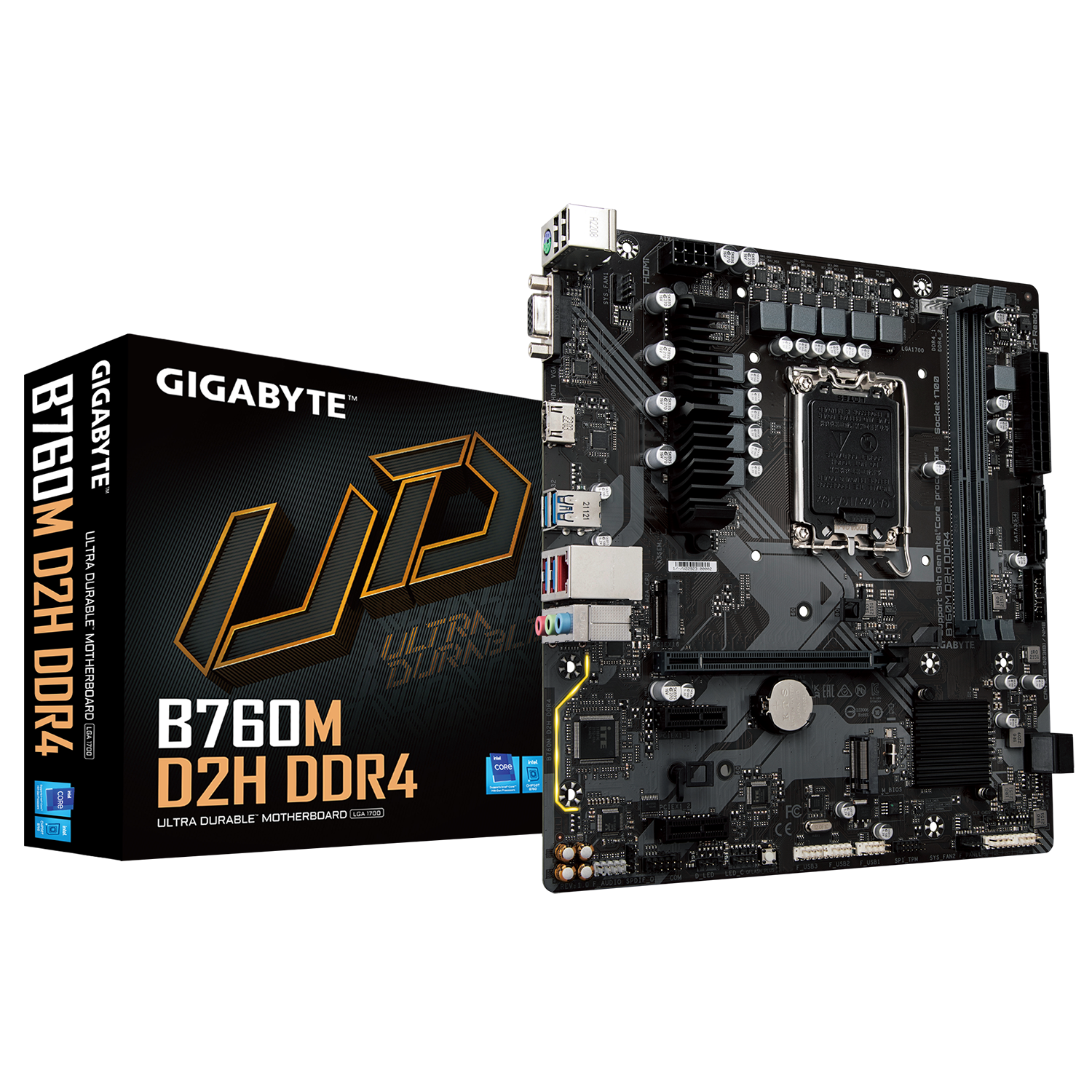

B760M D2H DDR4
OVERVIEW
PERFORMANCE
CONNECTIVITY
PERSONALIZATION
ULTRA DURABLE
Performance
Connectivity
1
8 Solid Pin CPU Power Connector
2
PCIe 4.0 Design
  1. 1*PCIe 4.0 x16 slot
  2. 2*PCIe 4.0 x4 M.2 Connectors
3
Audio Solution
  1. 8-ch HD Audio
  2. Audio Noise Guard
  3. High-End Audio Capacitors
4
6+2+1 Hybrid Digital VRM Design
5
Support 13th and 12th Gen. Intel® Core™ Processors
6
Dual Channel DDR4, 2 DIMMs
7
PCIe EZ-Latch
1
D-Sub
2
HDMI
3
USB3.2 Gen 1
4
2.5 GbE LAN
5
RGB FUSION
  1. 1*Addressable LED Header
  2. 1*RGB LED Header
6
4*SATA 3
7
Multi-key
  1. Multiple function set by BIOS
  2. Reset/RGB Switch/Direct to BIOS/Safe Mode
8
Q-Flash Plus onboard Button
UNPARALLELED PERFORMANCE
PERFORMANCE
Hybrid Digital VRM Design
PCIe 4.0 Design
DDR4 XMP
Dual PCIe 4.0 x4 M.2
PerfDrive
Smart Fan 6
6+2+1 Phases Hybrid Digital VRM Design
• 6+2+1 Phases Low RDS(on) MOSFETs
• Premium Choke and Capacitors to improve transient response and minimize oscillation
GIGABYTE B760 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
1. PCIe 4.0 x16 slot
2. PCIe 4.0 M.2 slot
Support for DDR4 XMP Up to 5333MHz and Beyond*
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE otherboard.

* XMP Profile support may vary depending on memory module.
Please see the complete validated memory support list. Product features may vary by model.

GIGABYTE PerfDrive
PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.
Max Turbo
Optimization
Spec Enhance
E-Core™ Disable
Max Turbo allows Intel® 13th Gen. Core™ CPU to run at Maximum Turbo Boost speed.
The Optimization mode enables Intel® 13th Gen. Core™ CPU to balance between high performance and low temperature.
The Spec Enhance mode enables Intel® 13th Gen. Core™ CPU to run at high performance under a lower temperature setting.
The E-Core™ Disable mode allocates CPU resources to P-core exclusively to boost its gaming performance, while diminishing the overall power consumption of processors.
* Features and function vary depending on Motherboard and CPU specifications, image is for reference only.
CONNECTIVITY
CONNECTIVITY
2.5GbE LAN
Hi-Fi Audio
CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network and storage.
First adopter on 2.5GbE LAN onboard
2X Faster than ever
  • Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
  • Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet

  • High-End Audio Capacitors
    GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
    Audio Noise Guard
    GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
    PERSONALIZATION
    PERSONALIZATION
    UEFI BIOS
    GIGABYTE Control Center
    Multi-Key
    PERSONALIZATION
    GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
    Friendly User Interface
    The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
    My Favorites
    Add constantly used items into the favorite menu for quick access.
    Storage Information
    Show all kinds of storage information including SATA, PCIE and M.2 interface.
    Changelog
    List all changes before saving and exiting bios. Quickly review overall settings modification.
    Intuitive Load Line Curve
    Clearly show each loadline calibration setting in an intuitive curve graph.
    GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
    1. Unified software platform for all Gigabyte supported products
    2. Intuitive user interface for an eased experience
    3. Modularized control components only for installed hardware
    4. Auto update function to keep system up to date and support future products
    Multi-key
    A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.
    • RGB Switch
      Turn off all lighting effect on motherboard.
    • Direct-To-BIOS
      Boot into BIOS menu directly without pressing any keyboard button.
    • Safe Mode
      Boot into BIOS safe mode to change specific option without losing other BIOS settings.
    * Photo for reference only.
    ULTRA DURABLE
    ULTRA DURABLE
    DIY Friendly
    Q-Flash Plus
    PCIe EZ-Latch
    Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
    * Photo for reference only.
    STEP 1.
    Plug 24pin & 8pin power supply cable on motherboard
    STEP 2.
    Download motherboard BIOS file and rename to "gigabyte.bin", save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
    STEP 3.
    Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
