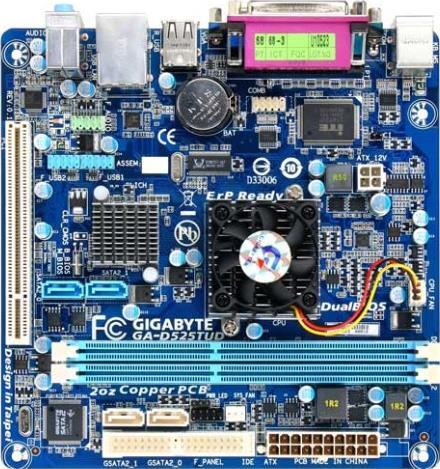

GA-D525TUD (Rev. 1.4)

Rev. 1.4Rev. 1.x
Intel® Atom D525+ NM 10
DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. Built in with an Intel® Dual-core Atom™ D525 processor (1.8 GHz)
      * Do not disassemble the onboard CPU/chipset and the heatsinks/fan by yourself to avoid damage to these components.
    2. 1M L2 cache
  • Chipset
    1. Intel® NM10
  • Memoria
    1. 2 x 1.5V DDR3 DIMM sockets supporting up to 4 GB of system memory
      * Due to Windows 32-bit operating system limitation, when the 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    2. Support for DDR3 800 MHz memory modules
    (Please refer "Memory Support List" for more information.)
  • Audio
    1. Realtek ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To enable 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  • LAN
    1. 1 x Realtek RTL8111F chip (10/100/1000 Mbit)
  • Puertos de Expansión
    1. 1 x PCI slot
  • Interfaz de Almacenamiento
  • Chipset:
    1. 2 x SATA 3Gb/s connectors (SATA2_0, SATA2_1) supporting up to 2 SATA 3Gb/s devices
    GIGABYTE SATA2/JMicron JMB363 chip:
    1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    2. 2 x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2 SATA 3Gb/s devices
      * When installing Windows XP onto the hard drive connected to the JMicron JMB363 controller, be sure to connect the optical drive to a SATA port controlled by the Intel chipset.
    3. Support for SATA RAID 0, RAID 1, and JBOD
  • USB
  • Chipset:
    1. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
  • Conectores Internos de E/S
    1. 1 x 20-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x IDE connector
    4. 4 x SATA 3Gb/s connectors
    5. 1 x CPU fan header
    6. 1 x system fan header
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 2 x USB 2.0/1.1 headers
    10. 1 x serial port header
    11. 1 x chassis intrusion header
    12. 1 x power LED header
  • Conectores del Panel Trasero
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x parallel port
    4. 1 x serial port
    5. 1 x D-Sub port
    6. 4 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 3 x audio jacks (Line In/Line Out/Microphone)
  • Controlador de E/S
    1. iTE I/O Controller Chip
  • Monitorización H/W
    1. System voltage detection
    2. CPU temperature detection
    3. CPU/System fan speed detection
    4. CPU fan speed control
  • BIOS
    1. 2 x 4 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Características Únicas
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune
      * Available functions in EasyTune may differ by motherboard model.
    8. Support for SMART Recovery
    9. Support for Auto Green
    10. Support for ON/OFF Charge
    11. Support for Q-Share
  • Software Incluido
    1. Norton Internet Security (OEM version)
  • Sistema Operativo
    1. Support for Microsoft® Windows® 7/Vista/XP
  • Diseño
    1. Mini-ITX Form Factor; 17.0cm x 17.0cm
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesador
      1. Built in with an Intel® Dual-core Atom™ D525 processor (1.8 GHz)
        * Do not disassemble the onboard CPU/chipset and the heatsinks/fan by yourself to avoid damage to these components.
      2. 1M L2 cache
    • Chipset
      1. Intel® NM10
    • Memoria
      1. 2 x 1.5V DDR3 DIMM sockets supporting up to 4 GB of system memory
        * Due to Windows 32-bit operating system limitation, when the 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
      2. Support for DDR3 800 MHz memory modules
      (Please refer "Memory Support List" for more information.)
    • Audio
      1. Realtek ALC887 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * To enable 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    • LAN
      1. 1 x Realtek RTL8111F chip (10/100/1000 Mbit)
    • Puertos de Expansión
      1. 1 x PCI slot
    • Interfaz de Almacenamiento
    • Chipset:
      1. 2 x SATA 3Gb/s connectors (SATA2_0, SATA2_1) supporting up to 2 SATA 3Gb/s devices
      GIGABYTE SATA2/JMicron JMB363 chip:
      1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
      2. 2 x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2 SATA 3Gb/s devices
        * When installing Windows XP onto the hard drive connected to the JMicron JMB363 controller, be sure to connect the optical drive to a SATA port controlled by the Intel chipset.
      3. Support for SATA RAID 0, RAID 1, and JBOD
    • USB
    • Chipset:
      1. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
    • Conectores Internos de E/S
      1. 1 x 20-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 1 x IDE connector
      4. 4 x SATA 3Gb/s connectors
      5. 1 x CPU fan header
      6. 1 x system fan header
      7. 1 x front panel header
      8. 1 x front panel audio header
      9. 2 x USB 2.0/1.1 headers
      10. 1 x serial port header
      11. 1 x chassis intrusion header
      12. 1 x power LED header
    • Conectores del Panel Trasero
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x parallel port
      4. 1 x serial port
      5. 1 x D-Sub port
      6. 4 x USB 2.0/1.1 ports
      7. 1 x RJ-45 port
      8. 3 x audio jacks (Line In/Line Out/Microphone)
    • Controlador de E/S
      1. iTE I/O Controller Chip
    • Monitorización H/W
      1. System voltage detection
      2. CPU temperature detection
      3. CPU/System fan speed detection
      4. CPU fan speed control
    • BIOS
      1. 2 x 4 Mbit flash
      2. Use of licensed AWARD BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    • Características Únicas
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Xpress BIOS Rescue
      4. Support for Download Center
      5. Support for Xpress Install
      6. Support for Xpress Recovery2
      7. Support for EasyTune
        * Available functions in EasyTune may differ by motherboard model.
      8. Support for SMART Recovery
      9. Support for Auto Green
      10. Support for ON/OFF Charge
      11. Support for Q-Share
    • Software Incluido
      1. Norton Internet Security (OEM version)
    • Sistema Operativo
      1. Support for Microsoft® Windows® 7/Vista/XP
    • Diseño
      1. Mini-ITX Form Factor; 17.0cm x 17.0cm
    • Otras Descripciones
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
      * Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
      * Todas las marcas y logos son propiedad de sus propios dueños.
      * Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
