  • Soporte para procesadores de 7ma y 6ta Generación Intel® Core™
  • Dual Channel DDR4, 4 DIMMs
  • Intel® USB 3.1 with USB Type-C™-The World's Next Universal Connector
  • 3-Way Graphics Support with Exclusive Ultra Durable Metal Shielding over the PCIe Slots
  • Dual PCIe Gen3 x4 M.2 Connectors with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
  • 3 SATA Express Connectors for up to 16Gb/s Data Transfer
  • 115dB SNR HD Audio with Built-in Rear Audio Amplifier
  • Killer™ E2400 and Intel® Gaming Networks
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • GIGABYTE UEFI DualBIOS™ Technology

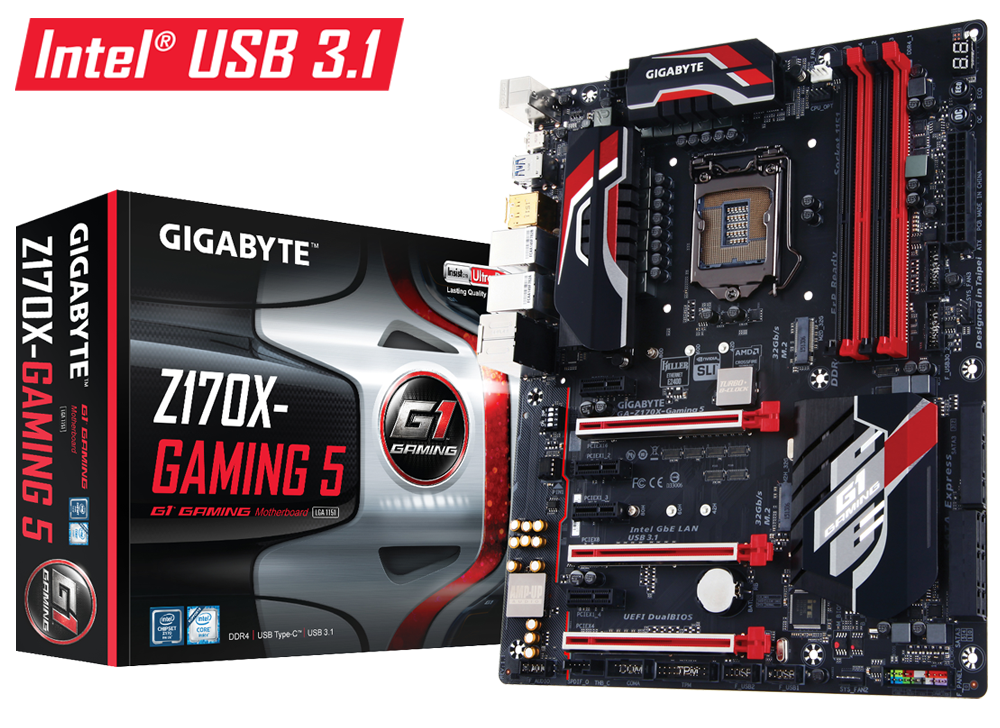

GIGABYTE Z170X-Gaming 5 Unboxing Video
  • The Intel® USB 3.1 controller utilizes 2 PCIe Gen3 lanes, offering a total of up to 16Gb/s, which means you have extra bandwidth to take full control of the 10Gb/s USB 3.1 ports. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Standard-A connector for better compatibility over a wider range of devices.

  • USB Tipo-C™, la conexión del Futuro
    Siguiente Conector Universal
    USB Reversible Tipo-C™ Con USB 3.1
    El USB Tipo-C™ es un nuevo conector reversible que cuenta con características útiles, tales como USB 3.1, soporte de 10 Gb/s de velocidad de transferencia, entrega de energía 2.0*, soporte de energía para encender monitores o recargar dispositivos móviles, y DisplayPort 1.2*, para soporte de monitores 4K. Gracias al controlador Intel® Thunderbolt™ 3, este puerto es el mejor USB Tipo-C™.


    * Las especificaciones pueden variar dependiendo el modelo.


  • Realtek ALC1150 115dB SNR HD Audio
    The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

    The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.



  • Additional Sound Blaster X-Fi MB3

    GIGABYTE G1™ Gaming motherboards also include Sound Blaster X-Fi MB3 software suite. Sound Blaster X-Fi MB3 software suite is a powerful audio platform offering premium audio quality, effects and features for gamers. It features SBX Pro Studio™ suite of technologies, which is designed to give you the fullest audio experience.


  • GIGABYTE Exclusive : Upgradable OP-AMP
    Customizable
    + Users can choose audio quality based on individual listening preferences.
    + Wide availability of additional OP-AMPs.


    Low Cost way to dramatically improve audio quality
    + Improve audio dynamics and overall sound-quality with little cost.
    + No need for expensive speakers or high-end audio equipment.



    Exclusive onboard 'Gain Boost' selector switches
    + Select either standard 2.5x or high-amplification 6x mode.
    + 6x mode is ideal for high impedance speakers and headphones


  • High End Audio Capacitors
    GIGABYTE G1™ Gaming motherboards use high end, Japanese branded Nichicon audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.


  • USB DAC-UP


    The above photos are for reference only.

    Clean, low-noise power for your Digital-to-Analog Audio converter

    GIGABYTE USB DAC-UP provides clean, noise-free power delivery to your Digital-to-Analog Converter. DACs can be sensitive to fluctuations in power from the other USB ports, which is why GIGABYTE USB DAC-UP takes advantage of an isolated power source that minimizes potential fluctuations and ensures the best audio experience possible.



  • Killer™ E2400 Gaming Network / Intel® Gigabit LAN
    Killer™ E2400 is a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and media performance compared to standard solutions.
    Intel® Gigabit LAN networking, a popular choice with gamers, delivers several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.

    Killer™ E2400 Gaming Network
  • Killer Youtube Video
  • 2-Way SLI™/3-Way CrossFire™ Multi-Graphics
    Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.







  • Industry Leading Ultra Durable™ PCIe Metal Shielding
    The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.





  • Dual PCIe Gen3 x4 M.2
    With two PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.

    The above photos are for reference only.

  • Turbo B-Clock:
    Built-in Advanced Performance Tuning IC

    Thanks to the onboard TURBO B-Clock Tuning IC, GIGABYTE Motherboards enable Overclockers to have the ability to change their BCLK Frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 200MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.
  • Next Generation SATA Express
    SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.



    The above photos are for reference only. Features may vary by model.


  • All New GIGABYTE™ App Center Including EasyTune™, Cloud Station™ Utilities and More…

    GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.


    APP Center

    GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE apps installed on your system.





    Easy Tune™
    Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.
    Cloud Station™
    GIGABYTE™ Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.
  • Long Lifespan Durable Black™ Solid Caps
    GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on GIGABYTE motherboards.


    Long Lifespan Durable Black™ Solid Caps
  • 15 Gold Plated CPU Socket Design
    GIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket*, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.
    15μ Gold Plated CPU Socket Design
  • EKWB Water Cooling Ready
    Designed and engineered in co-operation with GIGABYTE®, this monoblock uses award winning EK-Supremacy EVO cooling engine to ensure best possible CPU cooling. This water block directly cools Intel LGA-1151 socket type CPU and power regulation (MOSFET) module as water flows directly over all critical areas. It is a very high flow water block that can be easily used with the system using weaker water pumps. Unlike other solution on the market, this is a true one-piece, sturdy and reliable liquid cooling product which requires only two connector fittings for proper operation.

    Note: EKWB water block and it’s accessories are not included with the motherboard and are not covered by the motherboard warranty. For more information about EK’s water block, please visit: https://shop.ekwb.com/ek-fb-ga-z170x-monoblock-nickel

  • 4K Ultra HD Support
    4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
  • HDMI™ - The Next Generation Multimedia Interface
    HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
* Todos los materiales aquí provistos son sólo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
