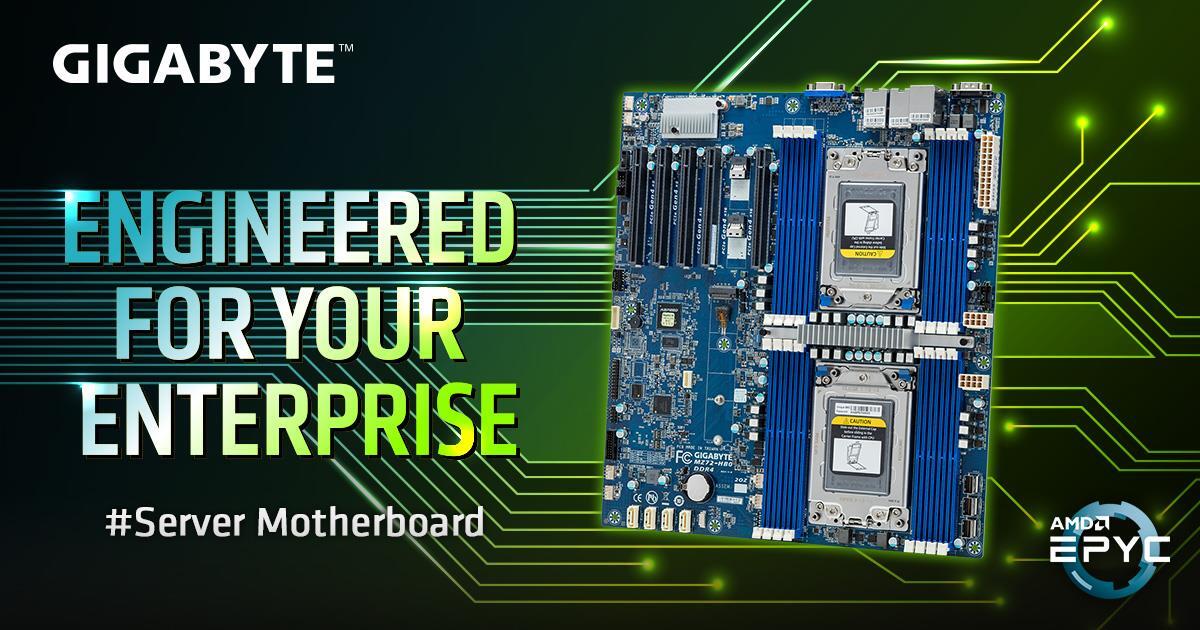

MZ71-CE1

(rev. 1.x)

E-ATX
305W x 330D (mm)

AMD EPYC™ 7002 series processor family
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
CPU TDP up to 280W

Compatible with AMD EPYC™ 7001 series processor family

2 x LGA 4094
Socket SP3

System on Chip

16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200 MHz

2 x 1GbE LAN ports (1 x Broadcom^® BCM5720)
1 x 10/100/1000 management LAN

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

N/A

N/A

4 x 7-pin SATA 6Gb/s ports
*3 x SlimSAS with 12 x SATA 6Gb/s or 3 x NVMe PCIe Gen3 x4 ports

* NOTE:
Default setting is SATA, please go to BIOS Setup section, Advances>PCI Subsystem setting for advanced configuration manually

N/A

*Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot, from CPU_0
Slot_4: 1 x PCIe x16 (Gen3 x16 bus) slot, from CPU_0
Slot_3: 1 x PCIe x16 (Gen3 x16 bus) slot, from CPU_1
Slot_2: 1 x PCIe x16 (Gen3 x8 bus) slot, from CPU_0
Slot_1: 1 x PCIe x16 (Gen3 x8 bus) slot, from CPU_1

* NOTE: PCIe Gen4 x16 supported if using AMD EPYC™ 7002 series processor family

1 x M.2 slot:
- M-key
- PCIe Gen3 x4*, from CPU_0
- Supports 2280/22110 cards

* NOTE: PCIe Gen4 x4 supported if using AMD EPYC™ 7002 series processor family

2 x NVMe ports:
- SlimSAS 4i type
- PCIe Gen3 x4, from CPU_0

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
5 x SlimSAS connectors
4 x SATA 7-pin connectors
1 x M.2 slot
2 x CPU fan headers
4 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper

2 x USB 3.0
1 x VGA
1 x COM_1
2 x RJ45
1 x MLAN
1 x ID button with LED

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP4 (x64) or later
SUSE Linux Enterprise Server 15 SP1 (x64) or later

Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.1.0 or later

Aspeed^® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• JAVA Based Serial Over LAN
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

1 x MZ71-CE1
1 x I/O shield
1 x Quick start guide
2 x SATA 6Gb/s cables
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton

10 x MZ71-CE1
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm

Retail: 9MZ71CE1MR-00
Bulk: 9MZ71CE1NR-00

Part Numbers:
- I/O shield: 12AIO-MZ72H0-00R
- SATA 6Gb/s cable: 25CF4-500541-K1R
