Intel 945 + ICH7 chipset

  • Support Intel® next generation Core™2 Duo/Pentium™ D Processor
  • Dual Channel DDR2 667 for advanced system performance
  • Features PCI Express x16 for outstanding graphics performance
  • Features SATA 3Gb/s interface
  • Optimized Gigabit LAN connection
  • Features 8-channel Intel High Definition Audio
  • Supports Windows Vista Premium

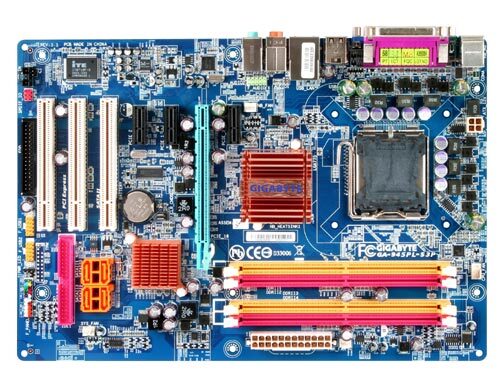

* GA-945PL-S3P (rev. 6.6) is able to boot with Intel® Core™2 Duo supporting FSB 1333MHz (OC)
  • Windows Vista Premium Logo Certified
    Windows Vista Premium promises to deliver a streamlined computing experience designed to fundamentally change how users view, find and organize their digital information. With GIGABYTE AM2+/ AM2 solutions enabling support for Vista Premium, GIGABYTE offers a fresh and unique desktop experience that will be more informative, intuitive and completely new....more
  • Speed
    The Speed compliant motherboards of GIGABYTE S-series provide intelligent over-clocking and over-voltage software settings through both hardware and software design...more
  • Smart
    The Smart featured motherboards of GIGABYTE S-series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features!...more
  • Safe
    Safe is the key feature of GIGABYTE S-series motherboards with the following elements: Excellent hardware design reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!...more
  • Intel Core™2 Duo Processor
    Leading the silicon process technology from 90nm to 65nm, the Intel new-generation CPU transistors deliver more energy-efficient performance than anyone. Based on the Intel's next generation Micro Architecture, the Intel Core ™2 Duo processor with two cores and shared L2 caches provides the best capability-per-watt solutions. The cutting-edge processor the significant performance boosts and better energy efficient platform
  • Intel® 945 Express Chipset
    The new Intel® 945 Express chipset delivers significant performance gains with variety of new generation architectures including the latest dual core processor, dual-channel DDR2 main memory, PCI-Express interface, Intel® Matrix Storage technology for improving storage reliability and performance.
  • 64bit Ready with Intel® EM64T
    Enter the new 64-bit computing era through Intel® Extended Memory 64 Technology. 64 bit operating system allows twice the amount of data access compare to 32-bit OS, thus enhances system productivity and memory responsiveness. It is also backward compatible to legacy 32bit mode or runs at 64bit compatible mode.
  • Superior Dual channel DDR2 667 Architecture
    Get a jump in memory performance with the advanced technology of DDR2! Through GIGABTYE engineering, we had overcome the chipset limitations of DDR2 667/533 delivering superior performance for the most demanding applications.
  • SATA 3Gb/s storage interface
    SATA 3Gb/s doubles bus bandwidth from 1.5Gb/s to 3Gb/s. SATA 3Gb/s facilitates bandwidth aggregation for multiple devices, enabling max through put as well as, higher cache through put performance in single drive configurations.
  • Gigabit LAN connectivity
    The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents
  • 8 channel Intel® High Definition Audio (by cable)
    Intel® High Definition Audio enables 8 channel premium digital sound in the PC for an immersive surround sound experience. In addition, Intel HD Audio delivers multiple audio channels in your PC so you can listen to two different streams simultaneously in two separate rooms
  • RoHS compliant
    As a member of the global community to look after the environment, Gigabyte complies with the European Union's Restriction of use of certain Hazardous Substances (RoHS) directive which limits the use of lead, mercury, cadmium and other hazardous substances in electronic products. From components and material selection to production processes, make up of accessories, packaging/color boxes etc; GIGABYTE has carefully examined and designed this product to be 100% RoHS compliant. GIGABYTE will continue to develop RoHS compliant PC components and commit valuable resources to promoting and advancing RoHS directive goals and objectives.

* De termen HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress en de HDMI logo's zijn handelsmerken of gedeponeerde handelsmerken van HDMI Licensing Administrator, Inc.
* Alle materialen zijn alleen voor uw referenctie. GIGABYTE behoudt zich het recht om zonder aankondiging de inhoud te wijzigen of te herzien.
* Alle handelsmerken en logo's zijn eigendom van hun respectieve houders.
* Door de standaard PC-architectuur, wordt een bepaalde hoeveelheid geheugen gereserveerd voor gebruik van het systeem en dus is de werkelijke geheugengrootte kleiner dan de aangegeven hoeveelheid.
