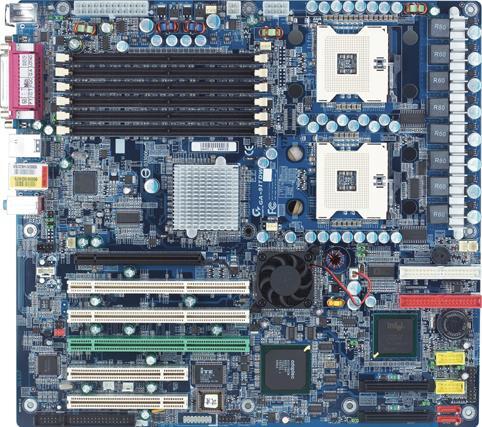

GA-9ITDWLegacy | Software updates supported
- Intel® E7525 MCH with PCI-Express x 16 bridge, Intel® ICH5R IO controller hub supports PCI -X 2.0, Intel® 6700 PXH 64Bit PCI-X Hub
- Intel®new dual Xeon™(Nocona) processor with front side bus 800MHz and Hyper Threading technology
- ECC/registered DDR2 400 memory in 6 DIMMs
- PCI-E X16 graphic slot X 1, PCI-X 64bit/133MHz X 1, PCI-X 64bit/66~100MHz X 2(Green one support Adaptec ZCR), PCI 32bit/33MHz X 2
- AIC 7902 dual channel U320 SCSI controller supports Host RAID RAID 0, 1 and 10 data protection
- Adaptec® 7902W chipset supports host RAID 0,1, 10
- Broadcom® BCM5751 Gigabit Ethernet
- ITE® IT8712F-A Super I/O
- ATX 12”x13” ETAX form factor
Specifications
CPU
- Supports Dual New Intel® Xeon™(Nocona) CPUs up to 3.6 GHz
- Supports 800 Mhz FSB
- Socket 604
Chipset
- Intel® E7525 MCH
- Intel® ICH5R IO controller hub
- Intel ®6700PXH 64 bit PCI-X hub
- AIC® 7902 dual channel U320 SCSI controller
LAN
- Build in Broadcom®BCM5751 Gigabit Ethernet
Audio
- ALC 655
IDE / SCSI
- Intel® ICH5R chipset
- Adaptec® 7902W chipset
RAID
- Adaptec® 7902W chipset supports host RAID 0,1, 10
Expansion Slots
- 1 x PCI-E X16 graphic slot
- 1 x PCI-X 64bit/133MHz slot
- 2 x PCI-X 64bit/66~100MHz Slots(Green one support Adaptec ZCR)
- 2 x PCI 32bit/33MHz Slots
Rear I/O
- 1 x Keyboard and 1 x mouse PS/2 port
- 4 x USB 2.0 connectors
- 1 x Gigabit Ethernet LAN port
- 1 x IEEE1394A port
- Audio connector (Line in/Line out/ Mic in)
- 1 x D-sub 25pin LPT connector
