MZBAYVALegacy | Software updates supported

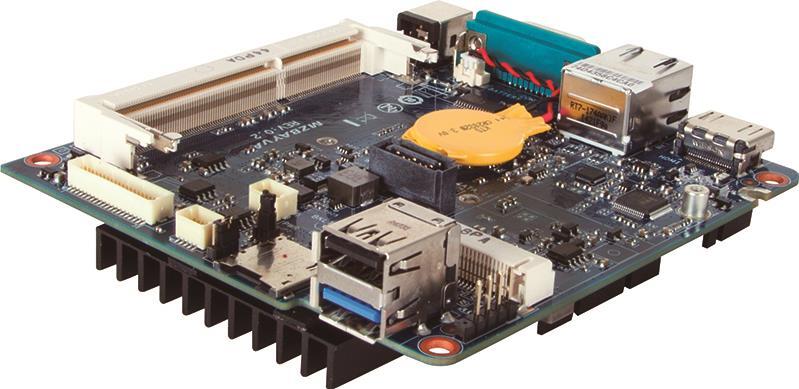

Intel Scorpion Ridge Digital Signage Motherboard
- 100(W) x 108.5(D) mm small form factor
- Intel® Atom™ processor E3815
- 1 x SO-DIMM DDR3L slot
- 1 x GbE LAN (Realtek RTL8111G)
- 1 x SATA II 3Gb/s port
- Android / Linux support
- Overview
- Specifications
- Support
Specifications
Form Factor
Proprietary
100(W) x 108.5(D) mm
100(W) x 108.5(D) mm
Operating Properties
Operating temperature: 0°C to 50°C
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Intel Atom processor E3815
Single core, 22nm
1.46GHz
512KB cache
5W TDP
Single core, 22nm
1.46GHz
512KB cache
5W TDP
Socket
1 x BGA 1170
Memory
1 x SO-DIMM slot
DDR3L memory
Up to 8GB
1066Mhz
DDR3L memory
Up to 8GB
1066Mhz
Flash Memory
4GB of eMMC memory
LAN
1 x GbE LAN port (Realtek RTL8111G)
Video
Intel HD Graphics
SATA
1 x SATA II 3Gb/s port
Expansion Slots
1 x Full-size Mini-PCIe slot
Internal I/O
1 x RTC header
1 x System fan header
1 x LPC (80h) header
1 x LVDS connector
1 x USB 2.0 header
1 x SATA power connector
1 x System power connector
1 x System fan header
1 x LPC (80h) header
1 x LVDS connector
1 x USB 2.0 header
1 x SATA power connector
1 x System power connector
Rear I/O
1 x RJ45
1 x USB 3.0
1 x USB 2.0
1 x DC-in
1 x MicroSD card slot
1 x Serial
1 x HDMI v1.4
TPM
-
OS Supported
Windows 7 (x32/x64)
Windows 8.1 (x32/x64)
Android 4.4
Fedora 20
Windows 8.1 (x32/x64)
Android 4.4
Fedora 20
PSU Connectors
-
Power Supply
AC 100~240V
12V DC-In
12V DC-In
Packaging Content
1 x Mini-PCIe card bracket
2 x M2x4L H=0.8 screws
2 x M2x4L H=0.8 screws
Ordering Information
Bulk: 9MZBAYVPNR-SI
Box dimensions: 411x383x200mm
Optional 30W/12V power adapter: 25EP2-500303-A3S
Box dimensions: 411x383x200mm
Optional 30W/12V power adapter: 25EP2-500303-A3S
