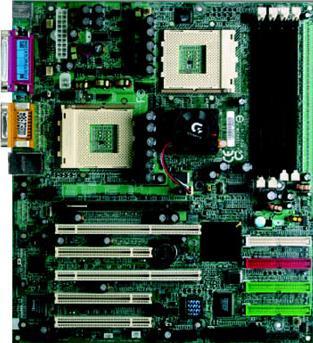

GA-7DPXDWPLegacy | Software updates supported
- AMD 760MPX Chipset-AMD 762™, 768™ B2
- Dual AMD®MP Athlon Class Processors (Socket 462/266Mhz FSB)
- Max. 3.5GB Registered (ECC) DDR-266 Memory
- Max. 2GB Un-buffered (ECC) DDR-266 Memory
- AGP 4x, Pro, AC97 Codec, 2PCI 64-Bit/66Mhz, 3PCI 32-Bit/33Mhz
- Promise® PDC 20276 Dual ATA-133 Channels with IDE RAID 0,1
- Intel® 82550PM 10/100 Mbps Fast Ethernet
- ATX 12”Wx10.6”D, ATX + 12V Auxiliary Power, VRM 9.0
- CPU Overheat hardware Protection
Specifications
CPU
- Dual AMD®MP Athlon Class Processors
- Socket 462/266Mhz FSB
Chipset
- AMD®-760™ MPX Chipset
- AMD 762 System Controller (Northbridge)
- AMD 768 B2 Peripheral Bus Controller (Southbridge)
LAN
- Intel® 82550PM 10/100 Mbps Ethernet LAN controllers onboard
IDE / SCSI
- Promise® PDC 20276 RAID Controller
- Dual ATA-133 IDE Channels
- Dual ATA-100 IDE Channels
RAID
- Dual ATA-133 IDE Channels with RAID 0,1
Expansion Slots
- 2 x PCI 64/66MHz
- 3 x PCI 32/33MHz
Rear I/O
- 2 x PS/2
- 2 x USB
- 2 x COm
- 1 x LPT
- 1 x LAN RJ45
