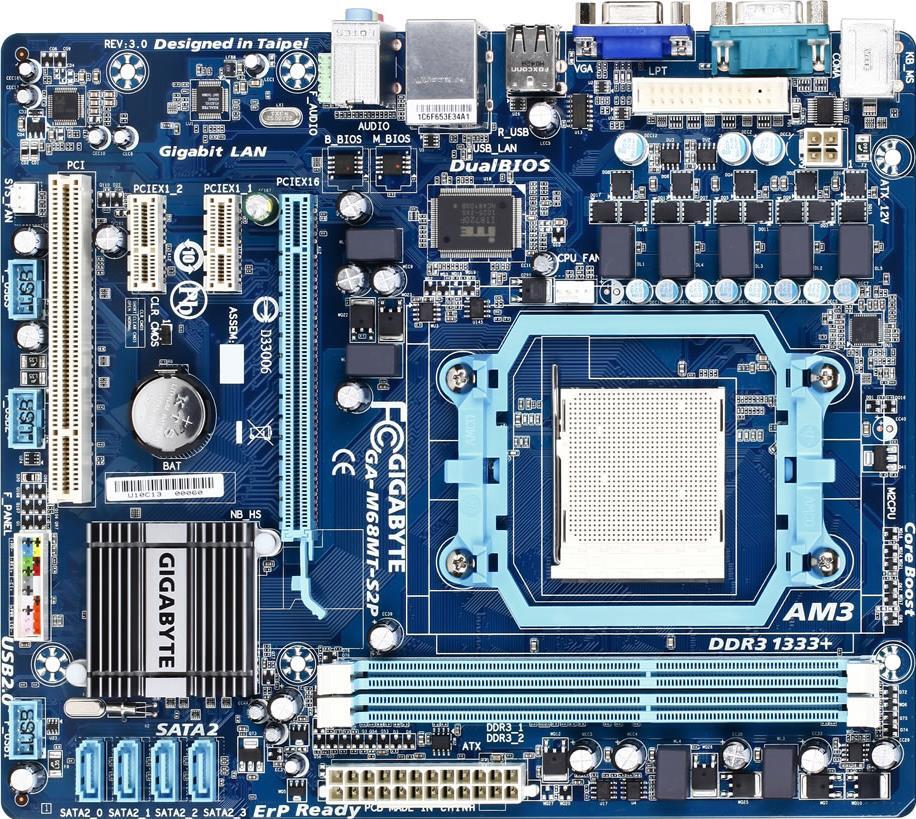

GA-M68MT-S2P (Rev. 3.0)

Rev. 3.0Rev. 2.3Rev. 3.1
NVIDIA® GeForce 7025 / nForce 630a chipset
OverzichtSpecificatiesSupportNieuws&AwardsMeer informatieWhere to Buy

Specificaties

  • CPU
    1. Support for AM3 processors: AMD Phenom™ II processor/ AMD Athlon™ II processor
  • Hyper Transport Bus
    1. 2000 MT/s
  • Chipset
    1. NVIDIA® GeForce 7025/nForce 630a chipset
  • Memory
    1. 2 x 1.5V DDR3 DIMM sockets supporting up to 8GB of system memory (Note 1)
    2. Dual channel memory architecture
    3. Support for DDR3 1600(OC)/1333/1066/800 MHz memory modules
  • Onboard Graphics
  • Integrated in the Chipset:
    1. 1 x D-Sub port
  • Audio
    1. Realtek ALC889 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel (Note 2)
  • LAN
    1. Onboard Realtek RTL8211CL (10/100/1000Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
    2. 2 x PCI Express x1 slots
    3. 1 x PCI slot
  • Storage Interface
  • Chipset
    1. 4x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
    2. Support for RAID 0, RAID 1, RAID 5, RAID 10 and JBOD
  • USB
  • Chipset:
    1. Up to 10 USB 2.0/1.1 ports (4 on the back panel, 6 via the USB brackets connected to the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 4 x SATA 3Gb/s connectors
    4. 1 x CPU fan header
    5. 1 x system fan header
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 3 x USB 2.0/1.1 headers
    9. 1 x parallel port connector
    10. 1 x clearing CMOS jumper
  • Back Panel Connectors
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x serial port
    4. 1 x D-Sub port
    5. 4 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks (Line In / Line Out / MIC In)
  • I/O Controller
    1. iTE IT8720 chip
  • H/W Monitoring
    1. System voltage detection
    2. CPU / System temperature detection
    3. CPU / System fan speed detection
    4. CPU / System warning temperature
    5. CPU / System fan failure warning
    6. CPU fan speed control (Note 3)
  • BIOS
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Unique Features
    1. Supports @BIOS
    2. Supports Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Supports Download Center
    5. Supports Xpress Install
    6. Supports Xpress Recovery2
    7. Supports EasyTune(Note 4)
    8. Support for Auto Green
    9. Support for On/Off Charge
  • Bundle Software
    1. Norton Internet Security (OEM version)
  • Operating System
    1. Support for Microsoft Windows 7/Vista/XP
  • Form Factor
    1. Micro ATX form factor; 24.4cm x 20.5cm
  • Note
  • (Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    (Note 2) To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    (Note 3) Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
    (Note 4) Available functions in EasyTune may differ by motherboard model.
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
