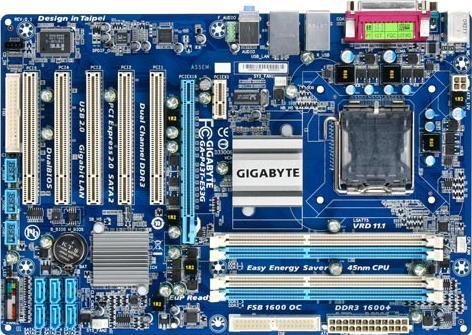

GA-P43T-ES3G (Rev. 1.3)

Rev. 1.3Rev. 1.0
Intel® P43 + ICH10 Chipset
OverzichtSpecificatiesSupportNieuws&AwardsWhere to Buy

Specificaties

  • CPU
    1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor/Intel® Celeron® processor in the LGA775 package (Go to GIGABYTE's website for the latest CPU support list.)
    2. L2 cache varies with CPU
  • Front Side Bus
    1. 1600(O.C.)/1333/1066/800 MHz FSB
  • Chipset
    1. North Bridge: Intel® P43 Express Chipset
    2. South Bridge: Intel® ICH10
  • Memory
    1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR3 1600/1333/1066 MHz memory modules
    4. Support for non-ECC memory modules
    (Go to GIGABYTE's website for the latest memory support list.)
  • Audio
    1. Realtek ALC888/892 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
    5. Support for CD In
  • LAN
    1. 1 x Realtek RTL8111D chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
    2. 1 x PCI Express x1 slot
    3. 5 x PCI slots
  • Storage Interface
  • South Bridge:
    1. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
    JMicron JMB368 chip:
    1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    iTE IT8718 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • USB
  • South Bridge
    1. Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 6 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 2 x system fan headers
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x CD In connector
    11. 1 x S/PDIF Out header
    12. 3 x USB 2.0/1.1 headers
    13. 1 x power LED header
    14. 1 x chassis intrusion header
    15. 1 x clearing CMOS jumper
  • Back Panel Connectors
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x parallel port
    4. 1 x serial port
    5. 1 x coaxial S/PDIF Out connector
    6. 6 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 3 x audio jacks (Line In/Line Out/Microphone)
  • I/O Controller
    1. iTE IT8718
  • H/W Monitoring
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System fan fail warning
    6. CPU/System fan speed control
  • BIOS
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Unique Features
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune
    8. Support for Easy Energy Saver
    9. Support for Smart Recovery
    10. Support for Q-Share
  • Bundle Software
    1. Norton Internet Security (OEM version)
  • Operating System
    1. Support for Microsoft® Windows® 7/Vista/XP
  • Form Factor
    1. ATX Form Factor; 30.5cm x 21cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • CPU
      1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor/Intel® Celeron® processor in the LGA775 package (Go to GIGABYTE's website for the latest CPU support list.)
      2. L2 cache varies with CPU
    • Front Side Bus
      1. 1600(O.C.)/1333/1066/800 MHz FSB
    • Chipset
      1. North Bridge: Intel® P43 Express Chipset
      2. South Bridge: Intel® ICH10
    • Memory
      1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
      2. Dual channel memory architecture
      3. Support for DDR3 1600/1333/1066 MHz memory modules
      4. Support for non-ECC memory modules
      (Go to GIGABYTE's website for the latest memory support list.)
    • Audio
      1. Realtek ALC888/892 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF Out
      5. Support for CD In
    • LAN
      1. 1 x Realtek RTL8111D chip (10/100/1000 Mbit)
    • Expansion Slots
      1. 1 x PCI Express x16 slot, running at x16
      2. 1 x PCI Express x1 slot
      3. 5 x PCI slots
    • Storage Interface
    • South Bridge:
      1. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
      JMicron JMB368 chip:
      1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
      iTE IT8718 chip:
      1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
    • USB
    • South Bridge
      1. Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 1 x floppy disk drive connector
      4. 1 x IDE connector
      5. 6 x SATA 3Gb/s connectors
      6. 1 x CPU fan header
      7. 2 x system fan headers
      8. 1 x front panel header
      9. 1 x front panel audio header
      10. 1 x CD In connector
      11. 1 x S/PDIF Out header
      12. 3 x USB 2.0/1.1 headers
      13. 1 x power LED header
      14. 1 x chassis intrusion header
      15. 1 x clearing CMOS jumper
    • Back Panel Connectors
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x parallel port
      4. 1 x serial port
      5. 1 x coaxial S/PDIF Out connector
      6. 6 x USB 2.0/1.1 ports
      7. 1 x RJ-45 port
      8. 3 x audio jacks (Line In/Line Out/Microphone)
    • I/O Controller
      1. iTE IT8718
    • H/W Monitoring
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU overheating warning
      5. CPU/System fan fail warning
      6. CPU/System fan speed control
    • BIOS
      1. 2 x 8 Mbit flash
      2. Use of licensed AWARD BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    • Unique Features
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Xpress BIOS Rescue
      4. Support for Download Center
      5. Support for Xpress Install
      6. Support for Xpress Recovery2
      7. Support for EasyTune
      8. Support for Easy Energy Saver
      9. Support for Smart Recovery
      10. Support for Q-Share
    • Bundle Software
      1. Norton Internet Security (OEM version)
    • Operating System
      1. Support for Microsoft® Windows® 7/Vista/XP
    • Form Factor
      1. ATX Form Factor; 30.5cm x 21cm
    • Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * De termen HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress en de HDMI logo's zijn handelsmerken of gedeponeerde handelsmerken van HDMI Licensing Administrator, Inc.
      * Alle materialen zijn alleen voor uw referenctie. GIGABYTE behoudt zich het recht om zonder aankondiging de inhoud te wijzigen of te herzien.
      * Alle handelsmerken en logo's zijn eigendom van hun respectieve houders.
      * Door de standaard PC-architectuur, wordt een bepaalde hoeveelheid geheugen gereserveerd voor gebruik van het systeem en dus is de werkelijke geheugengrootte kleiner dan de aangegeven hoeveelheid.
