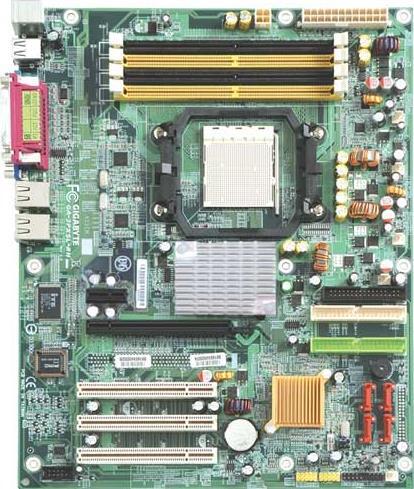

GA-3PXSL-RHLegacy | Firmware updates supported
- Support AMD® Opteron™ 1000 series processor for socket AM2
- nVidia® Geforce 6150 and nForce 430 chipset
- Max 16GB ECC/Non-ECC unbuffered DDRII 533/ 667 memroy
- One PCI-E x16, One PCI-E x1 and 3 PCI slots
- RAID 0, 1, 0+1, 5
- One Marvell® 8056 GbE controller and one Marvell 88E1116 GbE PHY
- Specifications
- Support
- Related Resources
Specifications
CPU
- Supports AMD® Opteron™ 1000 series (Socket AM2)
- Single/Dual Core in AM2 socket
Chipset
- nVidia® Geforce 6150
- nVidia® nForce 430
LAN
- Marvell® 8056GbE
- Marvell® 88E1116 GbE PHY
Video
- Integrated in NVIDIA®GeForce 6150 up to 256MB (shared)
SATA
- Build in NVIDIA®nForce 430 chipset
RAID
- Supports RAID 0, 1, 0+1,5
Expansion Slots
- 1 x PCI-E x16
- 1 x PCI-E x1
- 3 x PCI supports 32/33MHz
Rear I/O
- 2 x PS/2
- 6 x USB 2.0 (4 by cable)
- 1 x Parallel
- 2 x COM (1 by cable)
- 1 x VGA
- 2 x LAN RJ45
