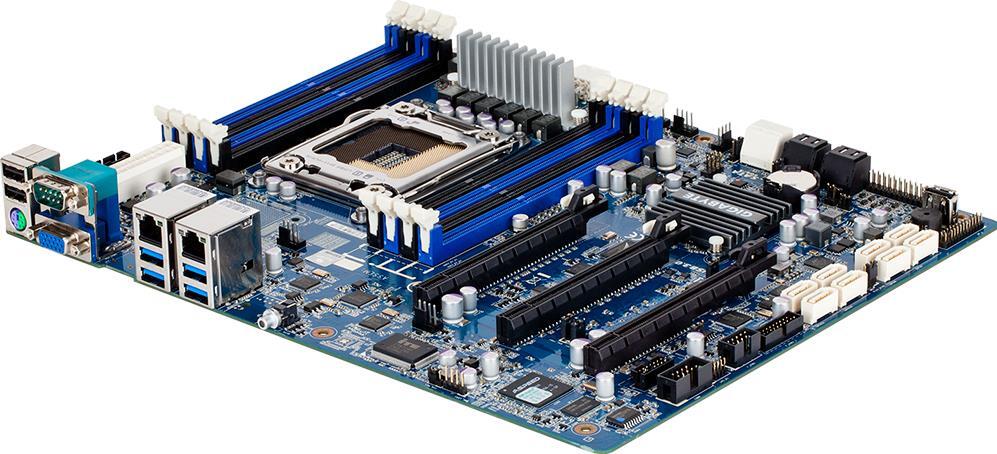

GA-6PXSVLLegacy | Firmware updates supported

ATX
305W x 244D (mm)

Supports:

• Intel^® Xeon^® E5-2600 V2 processors
• Intel^® Xeon^® E5-1600 V2 processors
• Intel^® Xeon^® E5-2600 processors
• Intel^® Xeon^® E5-1600 processors

1 x LGA 2011
Mounting pitch: narrow ILM (56x94mm)
Recommended cooling device dimension: 70x106mm
Compatible coolers (for reference only):

• Noctua NH-U9DX i4
• Noctua NH-U12DX i4
• Dynatron R27
• Dynatron R25
• Dynatron R24
• Dynatron T318A
• Dynatron R23
• Dynatron T318
• Dynatron R13
• Dynatron R19
• Dynatron R14
• Dynatron R12

Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard

Intel^® C602

8 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz

*Supported by Intel^® Xeon^® E5-2600 V2 processors only

Download the detailed memory configuration table for the E5-1600/2600 V2 processors
Download the detailed memory configuration table for the E5-1600/2600 processors

2 x GbE LAN ports (Intel^® 82574L)

Integrated in Aspeed^® AST2400-VB
2D Video Graphic Adapter with PCIe bus interface
128MB memory
1920x1200@60Hz 32bpp

-

-

2 x SATA III 6Gb/s supporting SATA DOM
8 x SATA III 6Gb/s from Marvell^® 88SE9230 controller
4 x SATA II 3Gb/s

Intel^® SATA RAID 0/1/10/5
Marvell^® SATA RAID 0/1/10

2 x PCIe x16 (Gen3 x16 bus) slots
or (via PCIe switch):
1 x PCIe x16 (Gen3 x16 bus) slot
2 x PCIe x16 (Gen3 x8 bus) slots

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connectors
1 x CPU fan headers
4 x System fan headers
1 x USB 2.0 vertical Type A
1 x USB 3.0 header
1 x USB 2.0 header
10 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
2 x SATA port DOM support jumpers
1 x SATA SGPIO header
1 x Front panel header
1 x HDD back plane board header
1 x TPM header
1 x Serial header
1 x LPC header
1 x Chassis intrusion header
1 x PMBus connector
1 x PMBus selector jumper
1 x BIOS recovery jumper
1 x Skip supervisor password jumper
1 x ME recovery jumper
1 x Clear CMOS jumper
1 x BMC_FRB1 jumber
1 x LAN3_ACT header
1 x BMC LED header
1 x BIOS write protect jumper
1 x PCIe switch jumper

4 x USB 3.0
2 x USB 2.0
1 x PS/2
1 x Serial
1 x VGA
2 x RJ45
1 x ID button with LED

1 x TPM header

Windows Server 2008 SP2 (x86)
Windows Server 2008 R2 SP1 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows 7 (x86/x64)

Red Hat Enterprise Linux 5.7 (x86/x64)
Red Hat Enterprise Linux 6.1 (x86/x64)

-

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connectors

1 x Driver CD
1 x I/O shield
2 x SATA cables (500mm)

Retail: 9M6PXSVLMR-SI
