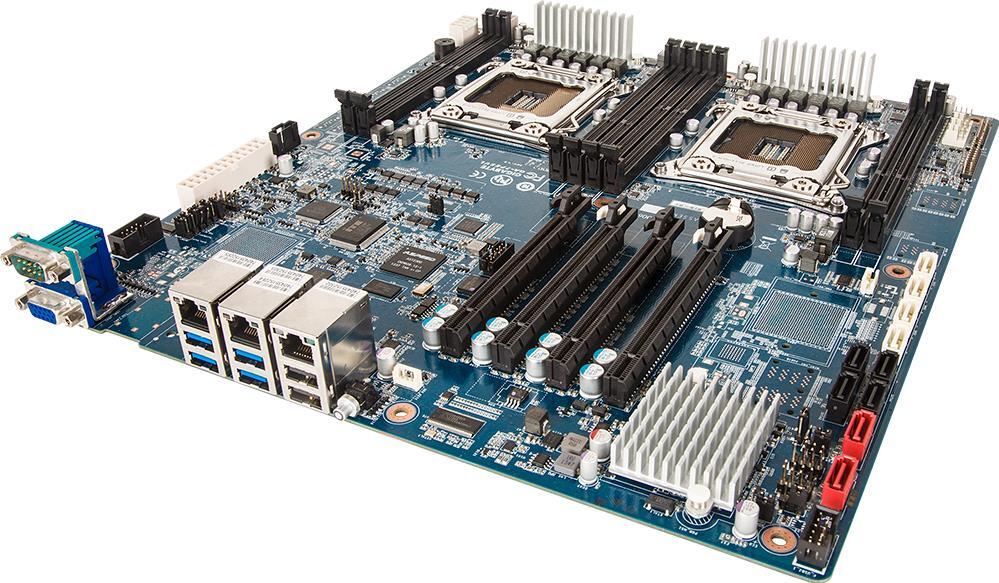

GA-7PESVLLegacy | Firmware updates supported

Intel® C602 chipset
  • Intel® Xeon® processor E5-2600 & E5-2600 V2 product families
  • 8 x RDIMM/UDIMM ECC DIMM slots
  • 2 x GbE LAN ports (Intel® I210)
  • 2 x SATA III 6Gb/s + 8 x SATA II 3Gb/s
  • Aspeed® AST2300 remote management controller
Save
This model has been saved to favorite!
  • Overview
  • Specifications
  • Support
  • Related Resources

Specifications

Form Factor
E-ATX / SSI EEB
305W x 330D (mm)
CPU
Supports:
  • Intel® Xeon® E5-2600 V2 processors
  • Intel® Xeon® E5-1600 V2 processors (single CPU configuration only)
  • Intel® Xeon® E5-2600 processors
  • Intel® Xeon® E5-1600 processors (single CPU configuration only)
Socket
2 x LGA 2011
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset
Intel® C602
Memory
8 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz

*Supported by Intel® Xeon® E5-2600 V2 processors only

Download the detailed memory configuration table for the E5-1600/2600 V2 processors
Download the detailed memory configuration table for the E5-1600/2600 processors
LAN
2 x GbE LAN ports (Intel® I210)
1 x 10/100 management LAN
Video
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
128MB memory
1920x1200@60Hz 32bpp
Audio
-
SAS
-
SATA
2 x SATA III 6Gb/s
8 x SATA II 3Gb/s
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
2 x PCIe x16 (Gen3 x16 bus) slots
2 x PCIe x16 (Gen3 x8 bus) slots
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
4 x System fan headers
1 x USB 2.0 header
2 x SATA III 6Gb/s ports
8 x SATA II 3Gb/s ports
2 x SATA port DOM support jumpers
2 x SATA SGPIO headers
1 x Front panel header
1 x HDD back plane board header
1 x TPM header
1 x Serial header
1 x IPMB header
1 x Chassis intrusion header
1 x PMBus jumper
1 x BIOS recovery jumper
1 x Skip supervisor password jumper
1 x ME recovery jumper
1 x Clear CMOS jumper
1 x S3_MASK jumper
1 x Flash descriptor security jumper
1 x Force to Stop FRB3 Timer jumper
1 x BIOS write protect jumper
1 x SKU key header
Rear I/O
4 x USB 3.0
2 x USB 2.0
1 x Serial
1 x VGA
3 x RJ45
1 x ID button with LED
TPM
1 x TPM header
OS Compatibility
Windows Server 2008 R2 SP1 (x64)
Windows Server 2012 (x86/x64)

Red Hat Enterprise Linux 5.8 (x64)
Red Hat Enterprise Linux 6.3 (x64)

SUSE Linux Enterprise Server 11.3 (x86/x64)
Board Management
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (launch, configuration)
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Retail Packaging Content
1 x Driver CD
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)
Reference Numbers
Retail: 9M7PESVLMR-00
Bulk: 9M7PESVLNR-00
