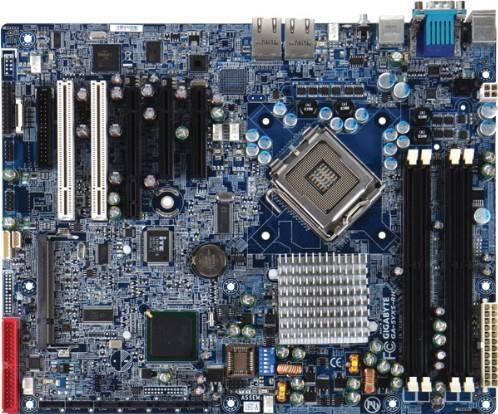

GA-5YXS1-RHLegacy | Software updates supported
Intel 3200 chipset + ICH9R
- ATX form factor easy to find suitable chassis.
- Entry server board with essential server-class features.
- Support one Intel Xeon processor 3000/ 3100/ 3200/ 3300 series.
- Up to 4 DIMMs of ECC unbuffered DDR2 memory.
- Well-rounded expansion: one PCIe x8, two PCIe x1, two PCI, and one SO-DIMM IF for external server management module.
- Specifications
- Support
- Related Resources
Specifications
Form Factor
- ATX (12" x 9.6")
CPU
- Single Intel Xeon processor 3000/ 3100/ 3200/ 3300 series
Chipset
- Intel 3200 chipset with Intel ICH9R
Memory
- 4 DDR2 DIMM sockets support ECC unbuffered
- 2 channel native 667/ 800MHz
LAN
- 2 Gigabit LAN (Intel 82566DM + Intel 82573)
Video
- XGI Volari Z9s 32MB DDR2
SATA
- 6 ports SATA 3Gbps via Intel ICH9R
RAID
- Intel SW RAID 0/ 1/ 5/ 10
Expansion Slots
- 1 PCI Express 1.0 x8 (mechanism for riser)
- 2 PCI Express 1.0 x1 (x8 mechanical)
- 2 PCI
- 1 SO-DIMM IF
Board Management
- Optional IPMI 2.0 module: GC-MMDS-RH
Reference Numbers
- 9M5YXS100R-00
