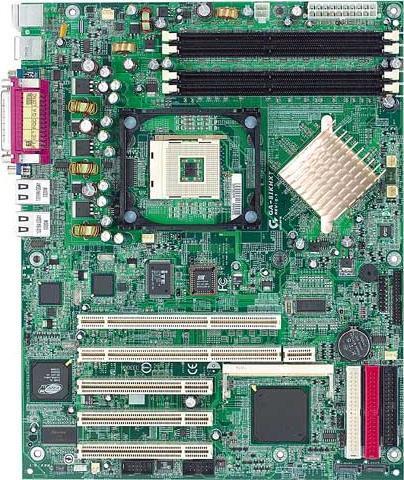

GA-8IKHXTLegacy | Software updates supported
- Intel® E7210, 6300ESB chipsets
- Intel® P4 Northwood and Prescott Processor (Socket 478, 533/800MHz FSB/3.6GHz)
- Max. 4GB Un-Buffered (ECC) DDR-333/400 Memory in 4 DIMM Slots
- 2 PCI-X 64-Bit/66MHz (3.3V) and 3 PCI 32-Bit/33MHz (5V)SATA x 2(built in HR), PATA 100x2 (built in HR)
- Intel® 82547GI Gigabit Ethernet x 1 and 82541GI Gigabit Ethernet x 1
- ITE® IT8712F-A Super I/O + Hardware Monitor
- ATX 12”Wx9.6”D, Power (20-Pin, 4-Pin 12V. Auxiliary), VRD 10.0
- OptionalIPMI 1.5 Module
- Specifications
- Support
- Related Resources
Specifications
CPU
- Single Intel® P4 processor with 512K L2 cache
- Supports 3.4GHz
- Supports 533/800MHz/Socket 478
Chipset
- Intel®E7210
- Intel®6300ESB
LAN
- Build in Intel® 82547GI Gigabit Ethernet and 82541GI Gigabit Ethernet
- Adapter Fault Tolerance (AFT)
- Adaptive Load Balancing (ALB)
- EtherChannel* (GEC)
Video
- Built-In ATI® Rage XL video chip with 8MB memory
RAID
- Raid 0/1 by Intel® 6300 ESB I/O controller (Adaptec HostRaid)
Expansion Slots
- 2 PCI-X 64-bit/66MHz Slots
- 3 PCI 32bit/33MHz Slots
- IPMI 1.5 module slot(So-DIMM type for SR-147series system)
Rear I/O
- 2 x PS/2
- 2 x USB
- 1 x COM
- 1 x VGA
- 2 x LAN RJ45
