ML945GCISLegacy | Firmware updates supported

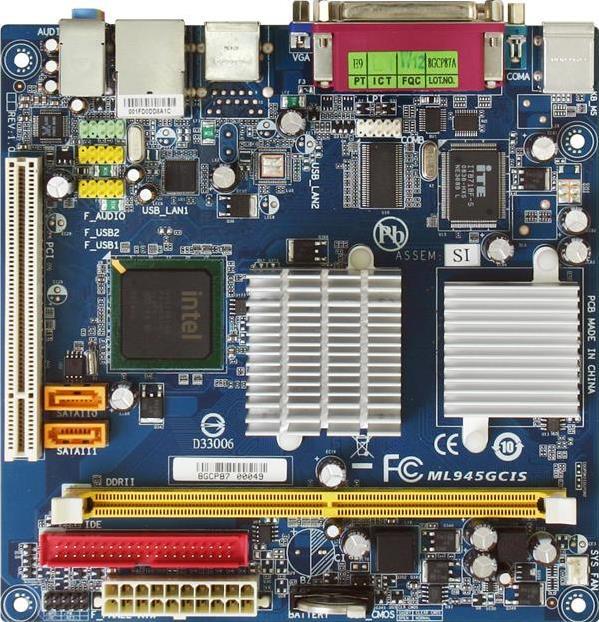

MT945GCIS: Cost-Effective Mini-ITX Solution
  • Though small perfectly formed.
  • Onboard Intel Atom 230 1.6GHz Processor or optional Atom 330 dual-core.
  • Maximum 2GB DDR2-533, 2 SATA ports, one PCI slot, and one PATA for basic need of whole system.
  • Well-rouned rear I/O including DVI, D-sub, dual PS/2 and dual Serial Ports for versatility.
  • Onboard Realtek RTL8102E Fast Ethernet and Realtek ALC662 HD Audio codec.
  • Optional dual LAN and GbE.
    • Save
    This model has been saved to favorite!
    • Specifications

    Specifications

    Form Factor
    Mini-ITX(170mm*170mm)
    CPU
  • Intel Atom 230
  • Optional Atom 330
    • Chipset
    Intel 945GC+ICH7
    Video
    GMA950 Integrated In 945GC
    Audio
    RealtekALC662
    SATA
    2*SATA2
    IDE/ SCSI
    1*PATA
    Expansion Slots
    1*PCI
    Rear I/O
  • 2*PS2
  • 1*LPT
  • 1*COM
  • 1*VGA
  • 1*RJ45
  • 4*USB
  • 3*Audio
