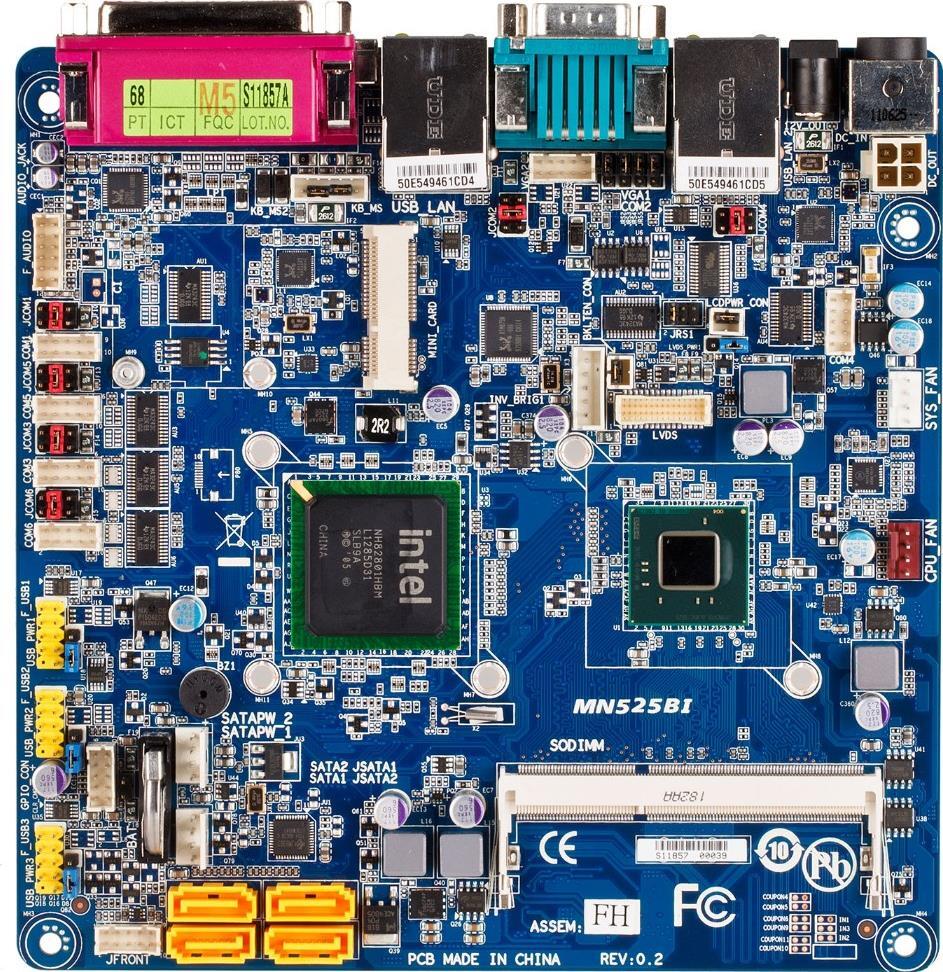

MN525BILegacy | Firmware updates supported
Intel Mini-ITX Storage Solution
- Support 45nm Intel® Atom™ dual core processor D525
- New DDR3 technology
- Integrated Intel graphic with DirectX 9 support
- Features dual high speed Gigabit Ethernet connection
- Specifications
- Support
Specifications
Form Factor
Mini-ITX ( 170mm x 170mm )
CPU
Intel® Atom™ processor D525 (1M Cache, 1.80 GHz, Dual Core, 13W)
Chipset
Intel® 82801HM I/O Controller Hub (ICH8M)
Memory
1 x DDR3 800MHz SO-DIMM Slot (up to 4GB)
LAN
2 x Gigabit Ethernet Controllers (Realtek RTL8111E)
Video
Intel GMA3150
SATA
2 x SATA 3.0 Gb/s ports
opt: 2x SATA 3.0 Gb/s ports(JMB362, support Raid 0,1)
opt: 2x SATA 3.0 Gb/s ports(JMB362, support Raid 0,1)
RAID
Support RAID 0 and RAID 1 mode (option)
Expansion Slots
1 x Mini-PCIe slot (Full size, support USB interface)
Internal I/O
5x USB 2.0
5x COM (RI/5V/12V)
1x Front Audio header
1x LVDS 18bit
1x GPIO 8 pin
1 x System Fan
1 x CPU Fan
2 x SATA Power
1 x Front Panel
1 x ATX DC 12V In ( 4 Pin )
5x COM (RI/5V/12V)
1x Front Audio header
1x LVDS 18bit
1x GPIO 8 pin
1 x System Fan
1 x CPU Fan
2 x SATA Power
1 x Front Panel
1 x ATX DC 12V In ( 4 Pin )
Rear I/O
1x DSUB
2x RJ45
1x PS/2
1x RJ11(CASH DRAWER)
1xLPT
1x Line-out
1x DC power out(12V)
4x USB
1x DC In Jack ( 4 Pin )
2x RJ45
1x PS/2
1x RJ11(CASH DRAWER)
1xLPT
1x Line-out
1x DC power out(12V)
4x USB
1x DC In Jack ( 4 Pin )
Power Supply
DC-in 12V
