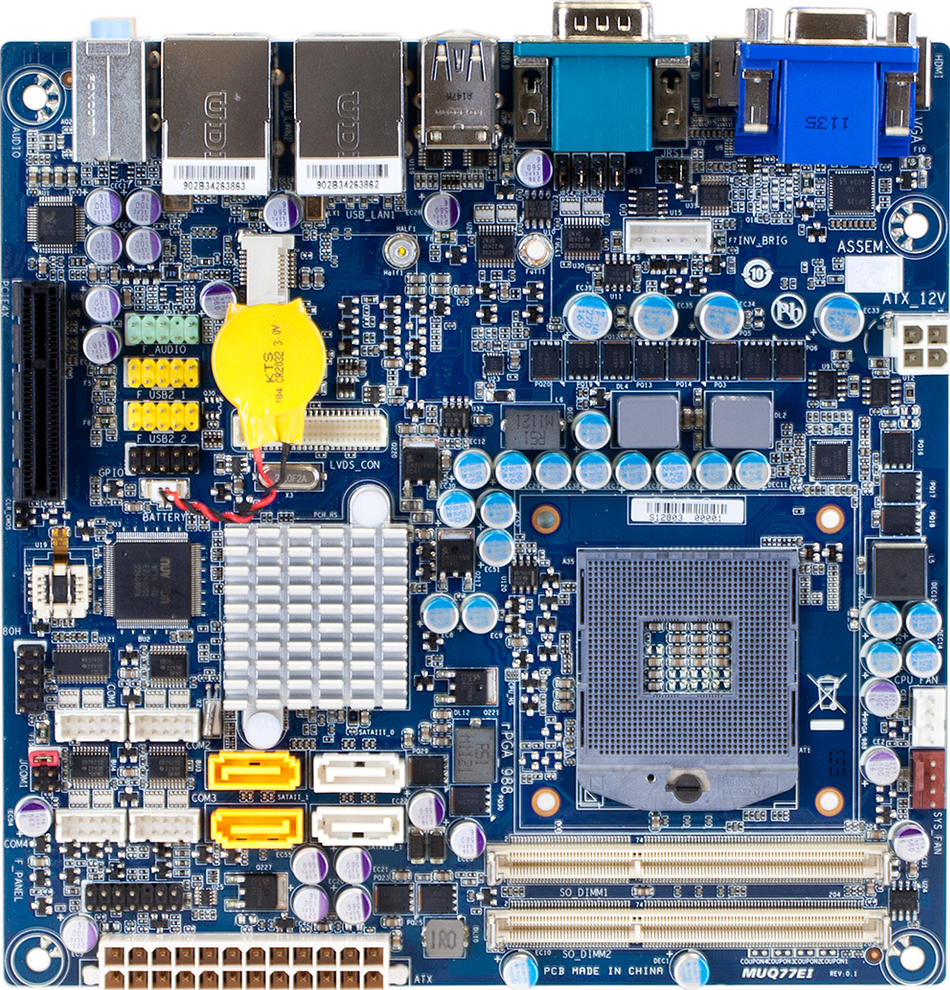

MUQ77EILegacy | Firmware updates supported
Intel® QM77 chipset
- Mini-ITX form factor
- Intel® 2nd/3rd Gen. Core™ processors
- 2 x SO-DIMM, up to 16GB 1600MHz
- 2 x GbE LAN
- 5 x COM ports (1 x external, 4 x internal)
- 2 x SATA III 6Gbs ports
- 2 x SATA II 3Gbs ports
- RAID support
- Specifications
- Support
Specifications
Form Factor
Mini-ITX
170W x 170D (mm)
170W x 170D (mm)
CPU
LGA 988 socket
Intel® 2nd/3rd Gen. Core™ processors
Intel® 2nd/3rd Gen. Core™ processors
Chipset
Intel® QM77 chipset
Memory
2 x SO-DIMM slots
Up to 16GB DDR3 memory
1600/1333MHz
Up to 16GB DDR3 memory
1600/1333MHz
LAN
2 x GbE LAN
1 x Intel 82579LM supporting AMT8.0
1 x Realtek RTL8111E
1 x Intel 82579LM supporting AMT8.0
1 x Realtek RTL8111E
Video
Intel® integrated graphics
Audio
Realtek ALC887
- Support High Definition Audio
- Support speaker 2 Channel: 3W / 4ohm 2ch
- Support 7.1 Channel Jack
SATA
2 x SATA III 6Gbs
2 x SATA II 3Gbs
2 x SATA II 3Gbs
RAID
Intel® RAID 0/1/10/5
Expansion Slots
1 x PCIe x4
1 x Mini-PCIe (full size)
1 x Mini-PCIe (full size)
Internal I/O
4 x USB 2.0
4 x COM (RI/ 5V/ 12V)
1 x Front audio header
1 x LVDS (single channel 18/ 24bits, dual channel 36/ 48bits)
1 x 10bit GPIO
1 x CPU fan
1 x System fan
1 x Front Panel header
1 x ATX DC in (4-pin)
1 x ATX DC in (24-pin)
4 x COM (RI/ 5V/ 12V)
1 x Front audio header
1 x LVDS (single channel 18/ 24bits, dual channel 36/ 48bits)
1 x 10bit GPIO
1 x CPU fan
1 x System fan
1 x Front Panel header
1 x ATX DC in (4-pin)
1 x ATX DC in (24-pin)
Rear I/O
2 x USB 3.0
4 x USB 2.0
1 x D-Sub
1 x HDMI
1 x DisplayPort
1 x COM (232/ 422/ 485 & RI/ 5V/ 12V)
1 x COM
3 x Audio jacks
2 x RJ45
4 x USB 2.0
1 x D-Sub
1 x HDMI
1 x DisplayPort
1 x COM (232/ 422/ 485 & RI/ 5V/ 12V)
1 x COM
3 x Audio jacks
2 x RJ45
OS Supported
Windows 7 (32/64bit)
Windows 8 (32/64bit)
Windows 8 (32/64bit)
Power Supply
1 x 24-pin ATX main power connector
Ordering Information
9MUQ77EINR-SI
