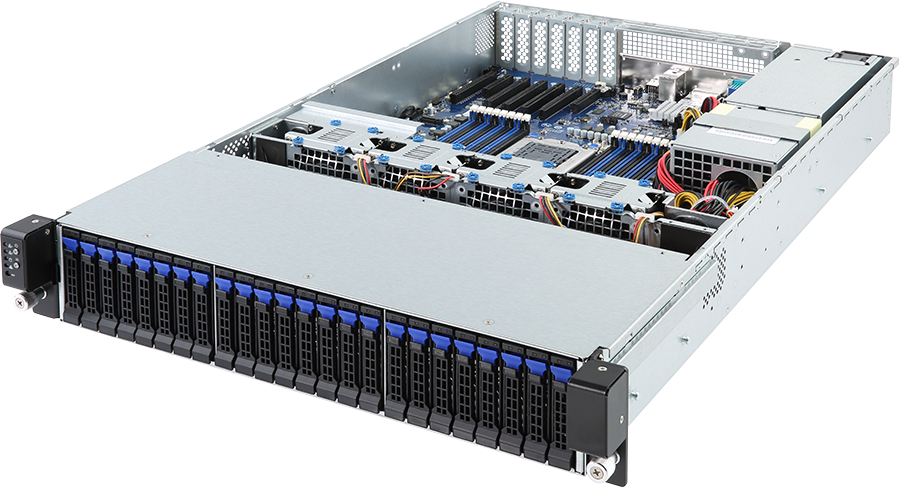

R271-Z31Legacy | Software updates supported

2U
430 x 87 x 710 mm

AMD EPYC™ 7001 series processor family
Single processor, 14nm, Socket SP3
Up to 32-core, 64 threads
TDP up to 200W

System on Chip

16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: 2666(1DPC)/2400/2133* MHz

- Note:
Memory speed run at 2133MHz when 1R/2R memory modules are fully populated

2 x SFP+ 10Gb/s LAN ports (Broadcom^® BCM 57810S)
1 x 10/100/1000 management LAN

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

N/A

24 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
16 x 2.5" SATA/SAS drives available by default setting

Default hard drives location:
From left to right, HDD_0 to HDD_7 and HDD_12 to HDD_19

SAS card is required for SAS devices support

N/A

N/A

Slot_7: 1 x PCIe x8 (Gen3 x8 bus) slot
Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_5: 1 x PCIe x16 (Gen3 x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_3: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_2: 1 x PCIe x8 (Gen3 x8 bus) slot
Slot_1: 1 x PCIe x16 (Gen3 x16 bus) slot
All PCIe slots support low profile HBAs

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2280/2260/2242 cards

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
4 x SlimSAS connectors
1 x M.2 slot
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
2 x LAN activity LED
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer

1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs

2 x USB 3.0
2 x USB 2.0
1 x VGA
1 x COM_1
2 x SFP+
1 x MLAN
1 x ID button with LED

Backplane P/N: 9CBP20O1NR-00
Speed and bandwidth:
SAS 12Gb/s, SATA 6Gb/s

1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000

2 x 800W redundant PSUs
80 PLUS Platinum

AC Input:
- 100-240V~/ 10-4A, 50-60Hz

DC Input:
- 240Vdc/ 4.5A

DC Output:
- Max 800W
+ 12V/ 66A
+ 12Vsb/ 2.5A

Aspeed^® AST2500 management controller
Avocent^® MergePoint IPMI 2.0 web interface:

• Network settings
• Network security settings
• Hardware information
• Users control
• Services settings
• IPMI settings
• Sessions control
• LDAP settings
• Power control
• Fan profiles
• Voltages, fans and temperatures monitoring
• System event log
• Events management (platform events, trap settings, email settings)
• Serial Over LAN
• vKVM & vMedia (HTML5)

Windows Server 2012 R2 with Update
Windows Server 2016

Red Hat Enterprise Linux 7.4 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 11 SP4 (x64) or later
SUSE Linux Enterprise Server 12 SP3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 16.04 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.5 Update1 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later

4 x 80x80x38mm (14,900rpm)

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

21 kg (barebone)

982 x 588 x 268 (mm)

1 x R271-Z31 system
1 x CPU heatsink
1 x Quick Installation Guide
1 x Rail kit

Rackmount: 6NR271Z31MR-00-1*
Motherboard: 9MZ31AR0NR-00-1*
CPU heatsink: 25ST1-15320E-J1R
Back plane board: 9CBP20O1NR-00
Fan module: 25ST2-883825-S0S
Power supply: 25EP0-208001-L0S
Power Supply PDB: 25EP0-207508-L0S
Rail Kit: 25HB2-3A6101-K0R
