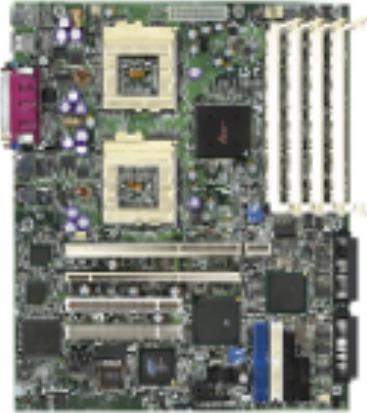

GA-6EXDRLegacy | Firmware updates supported
- Dual Intel® Pentium Ⅲ processors up to 1 GHz
- Dual 10/100 LAN
- ATX Form Factor
- Specifications
- Support
- Related Resources
Specifications
CPU
- Dual Intel® Pentium Ⅲ processors up to 1 GHz
Chipset
- ServerSet ⅢLE chipset
- North Bridge：CNB30LE
- South Bridge：OSB4
LAN
- Two Intel® Pro/100+ Server Ethernet Controllers（Intel 82559）Supports 100BASE-T and 10BASE-T, RJ45 output
- Adapter Fault Tolerance（AFT）
- Adaptive Load Balancing（ALB）
- WOL（Wake On LAN）
Video
- ATI Rage XL
IDE / SCSI
- LSI SYM53C1010-66 Dual ChannelTwo 68 pin “wide” SCSI connectors
Expansion Slots
- Two 64bit/66MHz PCI Slots
- Two 32bit/33MHz PCI Slots
Rear I/O
- 2 x PS/2
- 2 x USB
- 1 x COM
- 1 x LPT
- 1 x LAN RJ45
