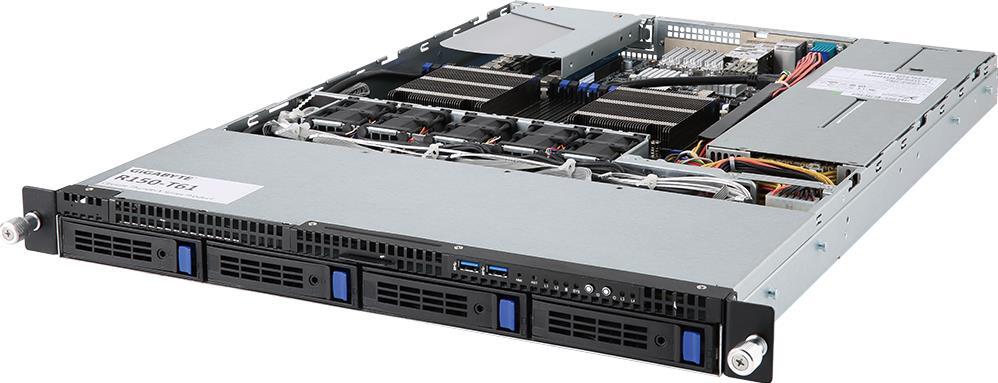

R150-T63Legacy | Software updates supported

1U
430 x 43.5 x 625 mm

MT60-SC6

Cavium^® ThunderX™ family
2 x ThunderX_CP™ processors
64bit ARMv8 architecture
32 cores per processor, 1.8GHz
BGA 2601, 28nm technology

-

16 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
Up to total 512GB memory capacity
1866 MHz with 2DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
2133 MHz with 1DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
NOTE: Due to processor specification, at least 4 x DIMM modules must be installed for this model

3 x 40GbE QSFP+ LAN ports
4 x 10Gb/s SFP+ LAN ports
1 x 10/100/1000 management LAN port

Integrated in Aspeed^® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

-

4 x 3.5" hot-swappable HDD bays
2.5" HDD/SSD supported

- NOTE: GIGABYTE recommends that you follow the QVL when selecting hard drives, to avoid any system compatibility issues

-

Depends on OS RAID

-

1 x Full-height half-length slot with PCIe x16 (Gen3 x8 bus) slot

1 x 24-pin main power connector
2 x 8-pin power connectors
2 x CPU fan header
5 x System fan headers
1 x USB 3.0 header
1 x COM2 header
1 x SATA SGPIO header
1 x Front panel headers
1 x back plane board header
1 x PMBUS header
1 x BMC JTAG header
1 x JTAG PLD header
1 x BMC reset header
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x IPMB connector

2 x USB 3.0
1 x Power button
1 x Power LED
1 x ID button
1 x Reset button
1 x HDD activity LED
2 x LAN activity LEDs(Dedicated for 10Gb/s SFP+ LAN ports)

1 x ID button with LED
2 x USB 3.0
1 x VGA
1 x COM1
3 x QSFP+
4 x SFP+
1 x RJ45

Speed and bandwidth:
SATA 6Gb/s

-

2 x 650W redundant PSUs
80 PLUS Platinum

AC input:
- 100-240V, 50-60Hz, 10/5A

DC output:
- 650W

Aspeed^® AST2400 management controller
Avocent^® MergePoint IPMI 2.0 web interface:

• Network settings
• Network security settings
• Users control
• Services settings
• IPMI settings
• Sessions control
• LDAP settings
• Power control
• Voltages, fans and temperatures monitoring
• System event log
• Events management (platform events, trap settings, email settings)
• Serial Over LAN
• vKVM & vMedia (launch, configuration)

Certified OS
Ubuntu 16.04.1 64bit
SLES12 SP2

Compatible OS
openSUSE Tumbleweed
openSUSE Leap 42.1+
RHEL 7.3 64bit
CentOS 7.3 64bit

5 x 40x40x56mm (23000rpm)

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

13 kg (barebone)

959 x 588 x 248 (mm)

1 x R150-T63 system
1 x Quick Installation Guide
1 x Rail kit

Rackmount: 6NR150T63MR-00
Motherboard: 9MT60SC6NR-00
Power supply: 25EP0-206504-F3S
Power Supply PDB: 25EP1-206500-F3S
Rail Kit: 25HB2-3A6101-K0R
