R120-T35
Discontinued

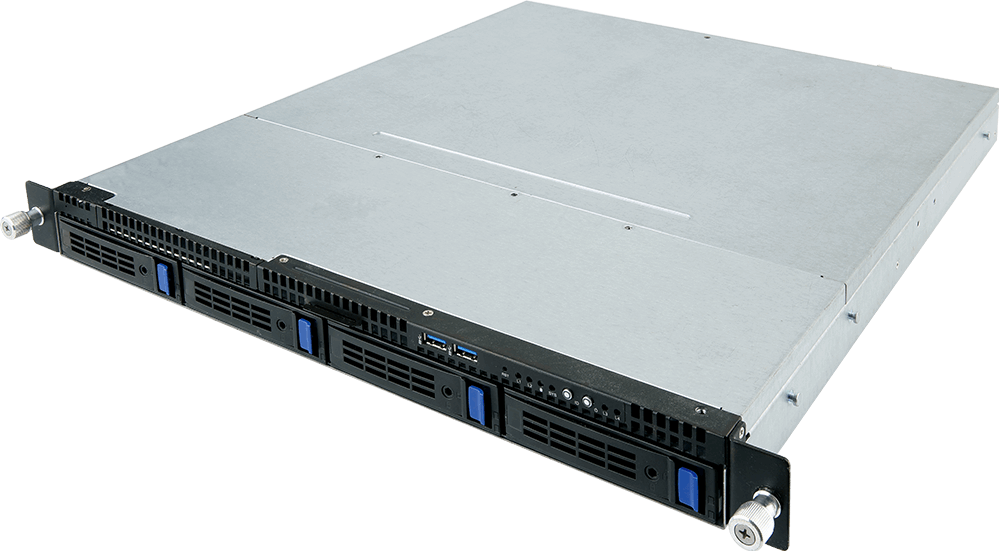

1U ARM Rackmount Server
- Supports blockchain infrastructure
- 1 x Marvell® ThunderX® 32-core ARM processor
- 8 x DDR4 DIMM slots
- 1 x 40GbE QSFP+ LAN port
- 4 x 10GbE SFP+ LAN ports
- 4 x 3.5” hot-swappable HDD/SSD bays
- 2 x 350W 80 PLUS Silver redundant PSU
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
430 x 43.5 x 533.4 mm
Motherboard
MT30-GS2
CPU
Marvell® ThunderX® family
1 x ThunderX_CP™ processor
64bit ARMv8 architecture
32 cores per processor, 1.8GHz
BGA 2601, 28nm technology
1 x ThunderX_CP™ processor
64bit ARMv8 architecture
32 cores per processor, 1.8GHz
BGA 2601, 28nm technology
Chipset
-
Memory
8 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
Up to total 256GB memory capacity
1866 MHz with 2DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
2133 MHz with 1DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
NOTE: Due to processor specification, at least 2 x DIMM modules must be installed for this model
DDR4 memory supported only
Quad channel memory architecture
Up to total 256GB memory capacity
1866 MHz with 2DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
2133 MHz with 1DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
NOTE: Due to processor specification, at least 2 x DIMM modules must be installed for this model
LAN
1 x 40GbE QSFP+ LAN port
4 x 10Gb/s SFP+ LAN ports
1 x 10/100/1000 management LAN port
4 x 10Gb/s SFP+ LAN ports
1 x 10/100/1000 management LAN port
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
Storage
4 x 2.5" / 3.5" hot-swappable HDD bays
- NOTE: GIGABYTE recommends that you follow the QVL when selecting hard drives, to avoid any system compatibility issues
- NOTE: GIGABYTE recommends that you follow the QVL when selecting hard drives, to avoid any system compatibility issues
SAS
-
RAID
Depends on OS RAID
Peripheral Drives
-
Expansion Slots
1 x Full-height half-length slot with PCIe x16 (Gen3 x8 bus) slot
Internal I/O
1 x 24-pin main power connector
1 x 8-pin power connectors
1 x CPU fan header
5 x System fan headers
1 x USB 3.0 header
1 x COM2 header
1 x SATA SGPIO header
1 x Front panel headers
1 x back plane board header
1 x PMBUS header
1 x BMC JTAG header
1 x JTAG PLD header
1 x BMC reset header
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x IPMB connector
1 x 8-pin power connectors
1 x CPU fan header
5 x System fan headers
1 x USB 3.0 header
1 x COM2 header
1 x SATA SGPIO header
1 x Front panel headers
1 x back plane board header
1 x PMBUS header
1 x BMC JTAG header
1 x JTAG PLD header
1 x BMC reset header
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x IPMB connector
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD activity LED
4 x LAN activity LEDs (Dedicated for 10Gb/s SFP+ LAN ports)
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD activity LED
4 x LAN activity LEDs (Dedicated for 10Gb/s SFP+ LAN ports)

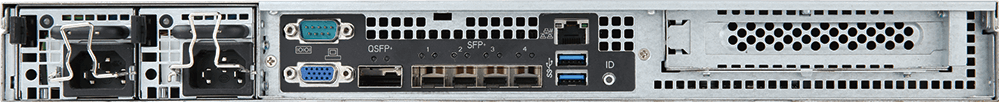

Rear I/O
2 x USB 3.0
1 x VGA
1 x COM1
1 x QSFP+
4 x SFP+
1 x RJ45
1 x VGA
1 x COM1
1 x QSFP+
4 x SFP+
1 x RJ45
Backplane Board
Speed and bandwidth:
SATA 6Gb/s
SATA 6Gb/s
TPM
-
Power Supply
2 x 350W redundant PSU
80 PLUS Silver
AC Input:
100-240Vac, 5-3A, 50-60Hz
DC Input:
190-310V, 3-1.5A
DC Output: 350W
+12V/28A
+5Vsb/ 3.0A
80 PLUS Silver
AC Input:
100-240Vac, 5-3A, 50-60Hz
DC Input:
190-310V, 3-1.5A
DC Output: 350W
+12V/28A
+5Vsb/ 3.0A
System Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
OS Compatibility
Certified OS
Ubuntu 16.04.1 64bit
SLES12 SP2
Compatible OS
openSUSE Tumbleweed
openSUSE Leap 42.1+
RHEL 7.3 64bit
CentOS 7.3 64bit
Ubuntu 16.04.1 64bit
SLES12 SP2
Compatible OS
openSUSE Tumbleweed
openSUSE Leap 42.1+
RHEL 7.3 64bit
CentOS 7.3 64bit
System Fans
5 x 40x40x28mm (18000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
8.6 kg (barebone)
Packaging Dimensions
815 x 588 x 250 (mm)
Packaging Content
1 x R120-T35 system
1 x Quick Installation Guide
1 x Rail kit
1 x Quick Installation Guide
1 x Rail kit
Part Numbers
Rackmount: 6NR120T35MR-00
Motherboard: 9MT30GS2NR-00
Power supply: 25EP0-203508-F3S
Power supply PDB board: 25EP1-203500-F3S
Rail Kit: 25HB2-3A6101-K0R
Motherboard: 9MT30GS2NR-00
Power supply: 25EP0-203508-F3S
Power supply PDB board: 25EP1-203500-F3S
Rail Kit: 25HB2-3A6101-K0R
