EL-20-3050-8GB

Discontinued

Intel® Bear Ridge IoT Gateway Solution
  • Intel® Celeron® processor N3060
  • 2 x SO-DIMM DDR3L slots
  • 2 x GbE LAN ports (Realtek RTL8111HS)
  • 8GB onboard eMMC memory
  • 1 x Full-size Mini-PCIe slot for 3G module or mSATA storage
  • 1 x SDXC card slot
  • Supports Windows 7/ 8.1/ 10 and Android 5.1
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Operating Properties
Operating temperature: 0°C to 40°C
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -20°C to 60°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Intel® Celeron® processor N3060
2 cores, 2 threads
1.6 - 2.48 GHz
2MB L2 cache
6W max. TDP
Socket
1 x BGA 1170
Memory
2 x SO-DIMM slots
1.35V DDR3L memory
Up to 8GB
1333/1600MHz
Flash Memory
8GB eMMC
LAN
2 x GbE LAN ports (Realtek RTL8111HS)
Video
Intel HD Graphics supports dual display
Max. resolution via HDMI ports:
3840 x 2160 @ 30Hz or
2560 x 1600 @ 60Hz with 2 memory installed
Max. resolution via eDP:
2560 x 1440 @ 60Hz with 2 memory installed
Audio
Realtek ALC255 controller
Supports 2/4/5.1/7.1 channel configurations via HDMI
Expansion Slots
1 x Full-size Mini-PCIe slot (for 3G module or mSATA storage)
1 x Half-size Mini-PCIe slot (for pre-installed WiFi+BT module)

3G module in option
Pre-installed:
- 1 x WiFi + Bluetooth card
- Intel Dual Band Wireless-AC 3160 or Azureware Daul Band Wireless-AW-CB161H
- Supports IEEE 802.11b/g/n/ac
- Supports Bluetooth 4.0
- Bluetooth function does not support under Windows 7 embedded OS
- Azureware Wireless-AW-CB161H supports Windows 10 only

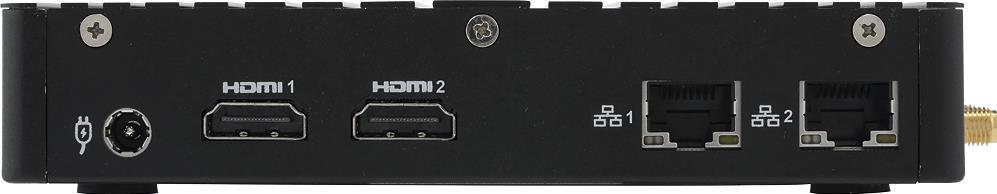

Rear I/O
1 x DC-in
2 x HDMI v1.4b
2 x RJ45
TPM
1 x TPM header
OS Compatibility
Windows 10 64bit
Windows 8.1 64bit
Windows 7 32bit / 64bit
Ubuntu 15.10
Ubuntu 16.04 LTS
Android 5.1

- Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7
Power Supply
AC 100~240V
19V DC-in
65W/3.42A
Packaging Content
1 x Quick start guide
1 x EL-20-3050-8GB
1 x Intel Dual Band Wireless-AC 3160 card
1 x 19V AC/DC power adapter
2 x WiFi antennas
1 x 3G antenna
Ordering Information
6BTCV6WMR-00
Storage
1 x SDXC card slot

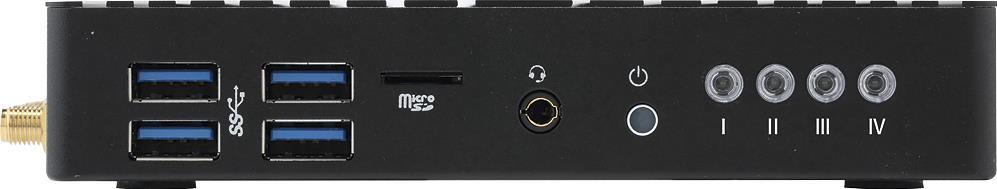

Front I/O
4 x USB 3.0
1 x SDXC card slot
1 x Headphone-out / MIC-in
1 x Power button with LED
1 x HDD activity LED
3 x LEDs reserved for user configuration
System Fans
Fanless
Dimension
140.8 x 107.5 x 27 mm
Motherboard
Weight
560g

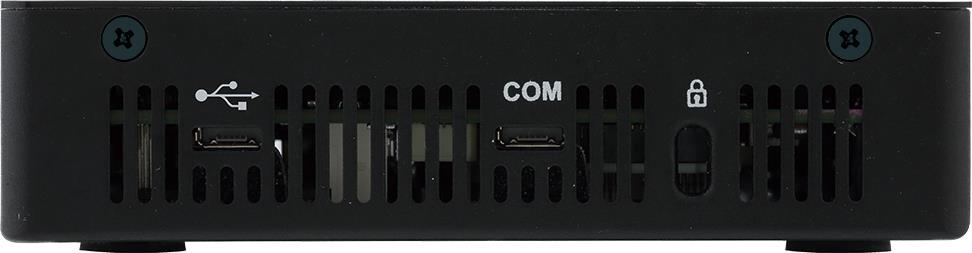

Side I/O
1 x Micro-B USB 2.0
1 x Micro-B 5-pin *RS232 full-duplex port ( TxD, RxD, CTS, RTS, GND)

*[NOTE]:
1. Please check the pin definition and ensure the port is suitable for your peripherals.
2. The serial driver GIGABYTE provided for Windows 10 and 8 is a trial version, please contact your peripheral vendor to get the correct driver.
