GS-R22PD1
Discontinued

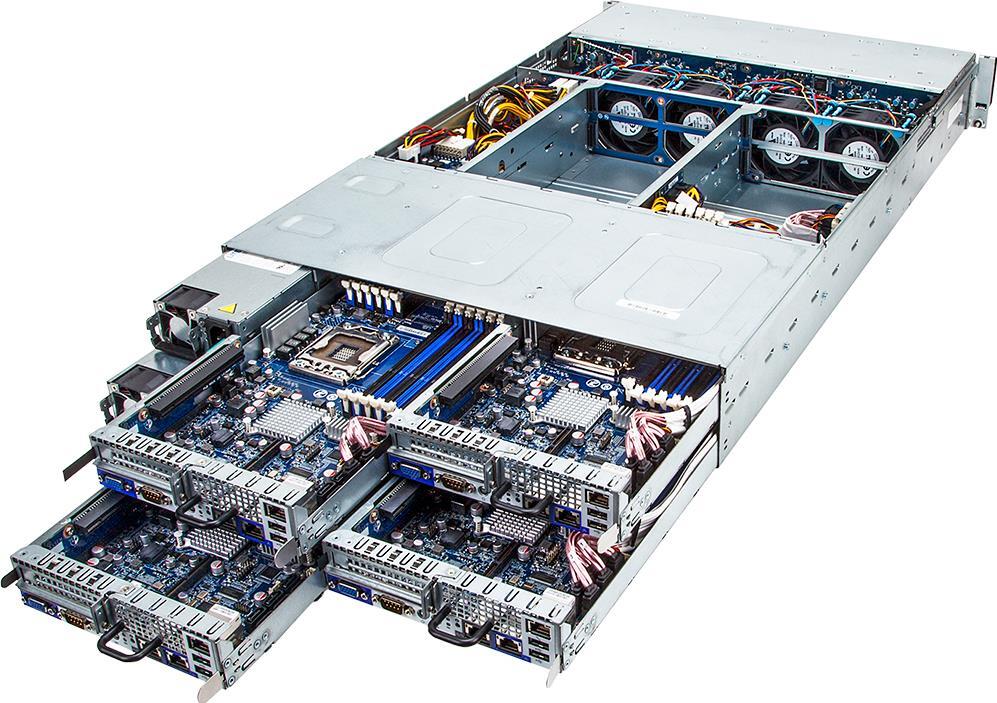

2U 4 Nodes High Density Rack Server
- 2U - 4 nodes high density rack with rear access to the node trays
- Intel® Xeon® processor E5-2400 & E5-2400 V2 product families
- 8 x LGA 1356 sockets
- Intel® C602 chipset
- 48 x DDR3 ECC slots
- 8 x GbE LAN ports (Broadcom® BCM5720)
- 24 x 2.5” hot-swappable HDD/SSD bays
-
Rear Access High Density Computing & Storage ServerGIGABYTE introduces its most advanced hardware specially designed for datacenter usage, where being able to match high density, excellent energy efficiency, and top computing performance are essential criteria.
This 2U multi-nodes barebone server regroups all the critical features required to satisfy these criteria, and is ready to meet the challenges of today's datacenter environments:
Space:
The chassis is equipped with four motherboards (computing nodes), when traditional 2U racks have only one. Here in 2U you get in total 8 processors from the Intel Xeon E5-2400 family, 48 memory DIMMs, and 16 HDD bays, while keeping optimal airflow and thermal properties.
The computing density is multiplied by 4, which means the space utilization of the chassis is improved by 3.
Power:
Within the chassis, the power supply and some cooling functions are removed from each board drawer to be shared and managed at the rack level. This implies less components obstruction, enhanced thermal performance, and reduced power consumption.
Serviceability:
With front access to the computing nodes and hot-swappable HDD bays, this rack can be serviced easily and can fit in most of existing datacenter infrastructure.
For routine monitoring, this rack comes with a management controller that allows it to be remotely controlled.
Also, it perfectly matches hot aisle/cold aisle designs.
Cost:
Being able to fit 4 motherboards within 1 chassis instead of 4, you save on the chassis cost. -
Intel® Xeon® Processor E5-2600 V2 Product FamilyDeployable through a simple BIOS update, the support of the Intel Xeon processors E5-2600 V2 product family delivers the benefits of the 22nm tri-gate process technology to the high end server industry. Those benefits include, among others, higher frequencies, higher core counts (up to 12 cores / 24 threads) and larger last-level caches, but especially a much more varied mix of core/frequencies with notably the introduction of a new dual socket workstation segment. This new die shrink also allows for overall energy efficiency increase, with up to 30% average decrease in idle power consumption.
Finally, virtualization applications will benefit from increased performance thanks to the Advanced Programmable Interrupt Controller (APIC) technology, and more security features are included in the mix as well, such as the Intel® Platform Protection Technology with OS Guard, and Intel® Data Protection Technology with Secure Key. -
Support of PCIe Generation 3.0
-
Server Management
-
Red Hat Certified HardwareGIGABYTE has certified the GS-R22PXL with Red Hat Enterprise Linux to provide its customers with the confidence of knowing that their hardware systems are supported by Red Hat when they run Red Hat Enterprise Linux.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
445.8 x 87 x 735
445.8 x 87 x 735
Motherboard
GA-7PTSV
Mounted in rear-access drawers
Mounted in rear-access drawers
CPU
Supports Intel® Xeon® processor E5-2400 & E5-2400 V2 product families
Socket
Per node:
2 x LGA 1356
2 x LGA 1356
Chipset
Per node:
Intel® C602
Intel® C602
Memory
Per node:
12 x DIMM slots
Total:
48 x DIMM slots
Tri channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 800/1066/1333 MHz
1.5V modules: 800/1066/1333/(1600*) MHz
*RDIMM only
12 x DIMM slots
Total:
48 x DIMM slots
Tri channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 800/1066/1333 MHz
1.5V modules: 800/1066/1333/(1600*) MHz
*RDIMM only
LAN
Per node:
Dual GbE LAN ports (Broadcom® BCM5720)
1 x 10/100 management LAN
Dual GbE LAN ports (Broadcom® BCM5720)
1 x 10/100 management LAN
Video
Per node:
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Per node:
6 x 2.5" hot-swappable HDD/SSD bays
Total:
24 x 2.5" hot-swappable HDD/SSD bays
6 x 2.5" hot-swappable HDD/SSD bays
Total:
24 x 2.5" hot-swappable HDD/SSD bays
SATA
Per node:
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
Total:
8 x SATA III 6Gb/s ports
16 x SATA II 3Gb/s ports
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
Total:
8 x SATA III 6Gb/s ports
16 x SATA II 3Gb/s ports
SAS
-
RAID
Intel® SATA RAID 0/1/5/10
Peripheral Drives
-
Expansion Slots
Per node:
1 x Half-length low-profile slot
1 x PCIe x16 (Gen3 x16 bus) connector
1 x Mezzanine I/F PCIe x8 (Gen3 x8 bus) connector
Total:
4 x Half-length low-profile slots
4 x PCIe x16 (Gen3 x16 bus) connectors
4 x Mezzanine I/F PCIe x8 (Gen3 x8 bus) connectors
1 x Half-length low-profile slot
1 x PCIe x16 (Gen3 x16 bus) connector
1 x Mezzanine I/F PCIe x8 (Gen3 x8 bus) connector
Total:
4 x Half-length low-profile slots
4 x PCIe x16 (Gen3 x16 bus) connectors
4 x Mezzanine I/F PCIe x8 (Gen3 x8 bus) connectors
Internal I/O
Per node:
1 x 9-pin ATX 12V power connector
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
1 x IPMB header
1 x Front panel header
1 x USB 2.0 header
1 x Serial header
1 x VGA header
1 x SPGIO header
1 x PMBus header
1 x 9-pin ATX 12V power connector
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
1 x IPMB header
1 x Front panel header
1 x USB 2.0 header
1 x Serial header
1 x VGA header
1 x SPGIO header
1 x PMBus header
Front I/O
Per node:
1 x Power button with LED
1 x ID button with LED
1 x Power button with LED
1 x ID button with LED
Rear I/O
Per node:
2 x USB 2.0
1 x Serial
1 x VGA
3 x RJ45
1 x Power button
1 x ID button with LED
1 x NMI button
1 x BMC reset button
1 x Power status LED
2 x USB 2.0
1 x Serial
1 x VGA
3 x RJ45
1 x Power button
1 x ID button with LED
1 x NMI button
1 x BMC reset button
1 x Power status LED
Backplane Board
12 x SATA/SAS 6Gb/s ports
2 x 10-pin power connectors
2 x Front panel headers
4 x Bridge board connectors
2 x 10-pin power connectors
2 x Front panel headers
4 x Bridge board connectors
TPM
-
Power Supply
2 x 1200W redundant PSU
80 PLUS Platinum
100~230V AC
80 PLUS Platinum
100~230V AC
System Management
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
OS Compatibility
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 SP1 (x64)
Red Hat Enterprise Linux 6.2 (x86/x64)
SUSE Linux Enterprise Server 11.2 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Windows Server 2008 R2 SP1 (x64)
Red Hat Enterprise Linux 6.2 (x86/x64)
SUSE Linux Enterprise Server 11.2 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
System Fans
4 x 80x80x38mm (13800rpm)
Operating Properties
Operating temperature: 5°C to 35°C
Non-operating temperature: 0°C to 40°C
10-80% operating humidity at 30°C
Non-operating temperature: 0°C to 40°C
10-80% operating humidity at 30°C
Weight
N/A
Part Numbers
Barebone: 6NR22PD1MR-00
Rail kit: 25HB2-AN6804-K0R
Rail kit: 25HB2-AN6804-K0R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Firmware
QVL
- All
- All
- Windows Server 2008 R2
- Windows Server 2008 Enterprise Service Pack 2 32bit
- Windows Server 2008 Enterprise R2 Service Pack 1 64bit
- Windows Server 2008 64bit
- Windows Server 2008 32bit
- Windows Server 2003 Enterprise R2 Service Pack 2 64bit
- Windows Server 2003 Enterprise R2 Service Pack 2 32bit
- SuSE Linux Enterprise 11.1 64bit
- SuSE Linux Enterprise 11.1 32bit
- Red Hat Enterprise Linux Server 6.1 64bit
- Red Hat Enterprise Linux Server 6.1 32bit
Chipset
Chipset
Version
Size
Date
Intel INF driver
Version : 9.2.3.1022
2.69 MB
Aug 19, 2013
OS: Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2003 Enterprise R2 Service Pack 2 32bit,Windows Server 2003 Enterprise R2 Service Pack 2 64bit
LAN
LAN
Version
Size
Date
Broadcom BCM5720 LAN driver
Version : 15.4.2.2
93.06 MB
Aug 19, 2013
OS: Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2003 Enterprise R2 Service Pack 2 32bit,Windows Server 2003 Enterprise R2 Service Pack 2 64bit,Windows Server 2008 Enterprise Service Pack 2 32bit,Red Hat Enterprise Linux Server 6.1 32bit,Red Hat Enterprise Linux Server 6.1 64bit,SuSE Linux Enterprise 11.1 32bit,SuSE Linux Enterprise 11.1 64bit
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
- Intel RAID driver
- Intel RAID utility for Windows x86/x64
Version : 3.5.0.1101
277.29 MB
May 06, 2013
OS: Windows Server 2008 R2,Windows Server 2008 Enterprise Service Pack 2 32bit,Windows Server 2008 Enterprise R2 Service Pack 1 64bit
VGA Driver
VGA Driver
Version
Size
Date
ASPEED VGA driver
Version : 0.96.06
28.01 MB
Jul 11, 2013
OS: Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2003 Enterprise R2 Service Pack 2 32bit,Windows Server 2003 Enterprise R2 Service Pack 2 64bit,Windows Server 2008 Enterprise R2 Service Pack 1 64bit,Red Hat Enterprise Linux Server 6.1 32bit,Red Hat Enterprise Linux Server 6.1 64bit
BIOS
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Firmware
Description
Version
Size
Date
1. improve get CPU and DIMM temperature from ME.
2. add OEM command to get FCB require data.
Version : 113
36.23 MB
Jul 22, 2014
English
1. Remove S3_MASK & AC back action function
2. implement new LAN disable function
Version : 111
36.27 MB
Aug 02, 2013
English
Description
Version
Size
Date
