R160-S34
Discontinued

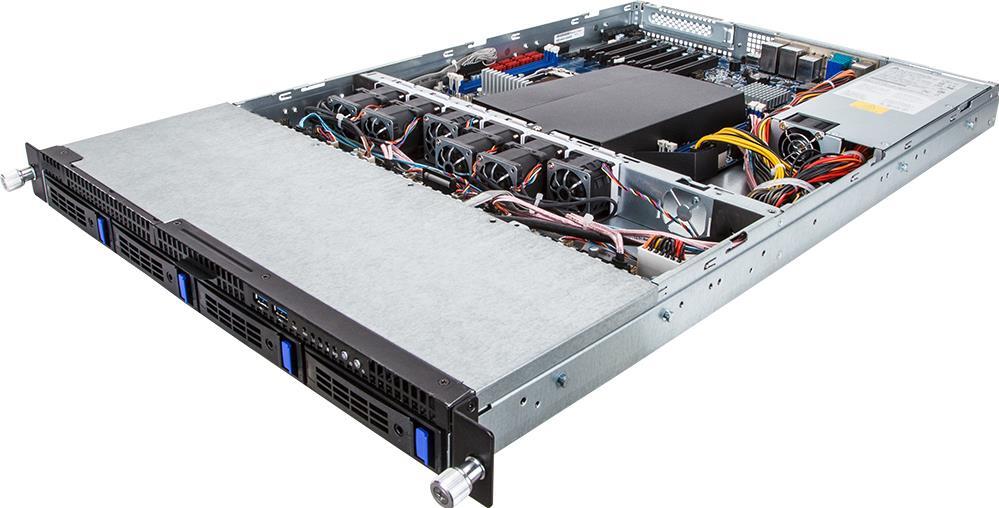

Dual Socket 1U Rackmount Server
Standard Rackmount Server
- Intel® Xeon® processor E5-2600/ E5-1600 V3 / V4 product family
- 8 x RDIMM/LRDIMM ECC DIMM slots
- 4 x 3.5" hot-swappable HDD/SSD bays
- 1 x Slim type ODD in option
- Supports SAS 6Gb/s (in option) and SATA III 6Gb/s connections
- 4 x GbE LAN ports (Intel® I210)
- 1 x 600W 80 PLUS Gold 100~220V AC PSU
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
430 x 43.5 x 710
430 x 43.5 x 710
Motherboard
CPU
Intel® Xeon® E5-2600 V3 processors
Intel® Xeon® E5-2600 V4 processors
Intel® Xeon® E5-1600 V3 processors
Intel® Xeon® E5-1600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.
Intel® Xeon® E5-2600 V4 processors
Intel® Xeon® E5-1600 V3 processors
Intel® Xeon® E5-1600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.
Socket
2 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset
Intel® C612
Memory
8 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
LAN
4 x GbE LAN ports (Intel® I210)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
Storage
4 x 3.5" hot-swappable HDD/SSD bays
2.5" HDD supported
2.5" HDD supported
SATA
9 x SATA III 6Gb/s ports
1 x SATA III 6Gb/s ports supporting SATA DOM
1 x SATA III 6Gb/s ports supporting SATA DOM
SAS
8 x SAS 6Gb/s ports (disabled, can be enabled with the CRA220-8 add-on card)
RAID
Intel® SATA RAID 0/1/10/5
Peripheral Drives
1 x Slim type ODD as an option
NOTE: For 12.7mm ODD only
NOTE: For 12.7mm ODD only
Expansion Slots
1 x Half-length full-height slot
1 x PCIe x16 (Gen3 x8 bus) connector
1 x PCIe x16 (Gen3 x8 bus) connector
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
8 x SAS 6Gb/s ports
10 x SATA III 6Gb/s ports
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x JTAG PLD header
1 x BMC JTAG header
1 x Chassis intrusion header
2 x SAS SGPIO headers
2 x SATA SGPIO headers
1 x Software RAID jumper
1 x SATA DOM jumper
1 x BIOS password recovery jumper
1 x BIOS recovery jumper
1 x Clear CMOS jumper
1 x ME recovery jumper
1 x ME update jumper
1 x S3 mask jumper
1 x BMC FRB jumper
1 x PMBus connector
1 x IPMB connector
2 x 8-pin ATX 12V power connectors
8 x SAS 6Gb/s ports
10 x SATA III 6Gb/s ports
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x JTAG PLD header
1 x BMC JTAG header
1 x Chassis intrusion header
2 x SAS SGPIO headers
2 x SATA SGPIO headers
1 x Software RAID jumper
1 x SATA DOM jumper
1 x BIOS password recovery jumper
1 x BIOS recovery jumper
1 x Clear CMOS jumper
1 x ME recovery jumper
1 x ME update jumper
1 x S3 mask jumper
1 x BMC FRB jumper
1 x PMBus connector
1 x IPMB connector

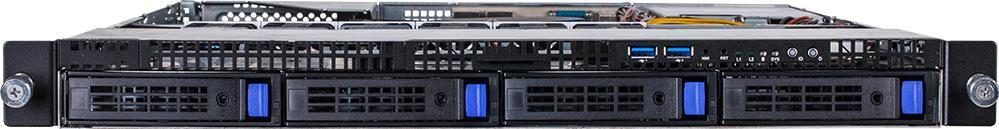

Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
4 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
4 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

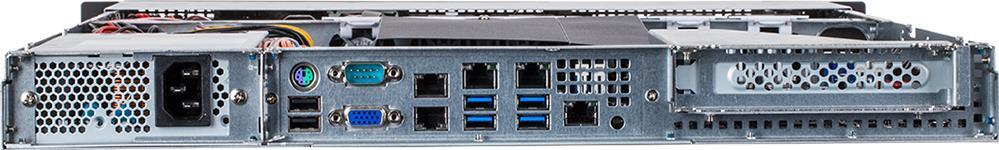

Rear I/O
4 x USB 3.0
2 x USB 2.0
1 x PS/2
1 x VGA
1 x COM
5 x RJ45
1 x ID button with LED
2 x USB 2.0
1 x PS/2
1 x VGA
1 x COM
5 x RJ45
1 x ID button with LED
Backplane Board
4 x SAS/SATA ports
TPM
1 x TPM header
Power Supply
1 x 600W PSU
80 PLUS Gold
AC input:
- 100-127V/ 9A, 50-60Hz
- 200-240V/ 5A, 50-60Hz
DC output:
- 600W
System Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
OS Compatibility
Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
System Fans
4 x 40x40x56mm (23'000rpm)
2 x 40x40x28mm (18'000rpm)
2 x 40x40x28mm (18'000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
10 kg
Packaging Dimensions
959 x 588 x 248 mm
Packaging Content
1 x R160-S34
1 x Driver CD
2 x CPU heatsinks
1 x Rail kit
1 x Driver CD
2 x CPU heatsinks
1 x Rail kit
Part Numbers
Barebone package: 6NR160S34MR-00
Spare parts:
- Rail kit: 25HB2-086300-I0R
- CPU heatsink: 25ST1-443202-T4R
- Back plane board: 9CBP1040NR-00
- Power supply: 25EP0-206001-D0S
- Screws for 1 x HDD: 25KSD-130041-S0R
- Riser card - CRS1011: 9CRS1011NR-00
Spare parts:
- Rail kit: 25HB2-086300-I0R
- CPU heatsink: 25ST1-443202-T4R
- Back plane board: 9CBP1040NR-00
- Power supply: 25EP0-206001-D0S
- Screws for 1 x HDD: 25KSD-130041-S0R
- Riser card - CRS1011: 9CRS1011NR-00
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
Firmware
QVL
- All
- All
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows Server 2008 R2 64bit
- Ubuntu 14.04 LTS x86
- Ubuntu 14.04 LTS x64
- Ubuntu 12.04 LTS x86
- Ubuntu 12.04 LTS x64
- SLES 12 x64
- SLES 11.4 x86
- SLES 11.4 x64
- RHEL 7.2 x64
- RHEL 6.7 x86
- RHEL 6.7 x64
Chipset
Chipset
Version
Size
Date
Intel® INF Driver
Version : 10.1.2.10
2.76 MB
Mar 31, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® Management Engine Driver
Version : 9.1.0.1120
102.8 MB
Mar 31, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 20.7
242.15 MB
Mar 30, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® LAN Driver and Utility
Version : 20.7
242.15 MB
Mar 30, 2016
OS: Ubuntu 14.04 LTS x86,Ubuntu 14.04 LTS x64,RHEL 6.7 x86,RHEL 6.7 x64,RHEL 7.2 x64,Ubuntu 12.04 LTS x86,Ubuntu 12.04 LTS x64,SLES 11.4 x86,SLES 11.4 x64,SLES 12 x64
Intel® LAN Driver and Utility
Version : 22.1
322.42 MB
Mar 22, 2017
OS: Windows Server 2016 64bit
SAS
SAS
Version
Size
Date
LSI SAS3008/SAS2308/SAS2208 Utility
Version : 13.04.03.01
73.01 MB
Dec 03, 2014
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
CRA220-8 add-on Card Driver
LSI SAS2308 controller
LSI SAS2308 controller
Version : 2.00.66.00
4.81 MB
Jan 31, 2015
OS: Windows Server 2008 R2 64bit
CRA220-8 add-on Card Driver
LSI SAS2308 controller
LSI SAS2308 controller
Version : 2.00.66.02
2.44 MB
Jan 31, 2015
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 4.5.0.1333
3.59 MB
Mar 31, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 4.5.0.1333
18.62 MB
Mar 31, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 4.6.0.1085
7.41 MB
Mar 22, 2017
OS: Windows Server 2016 64bit
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 4.6.0.1085
19.4 MB
Mar 22, 2017
OS: Windows Server 2016 64bit
USB 3.0
USB 3.0
Version
Size
Date
Intel® USB 3.0 Driver
Version : 3.0.0.33
5.17 MB
Dec 01, 2014
OS: Windows Server 2008 R2 64bit
Etron USB 3.0 Driver
Version : 0.118
11.41 MB
Dec 01, 2014
OS: Windows Server 2008 R2 64bit
Etron USB 3.0 Driver
Version : 0.119
11.42 MB
Dec 02, 2014
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit
BIOS
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2019
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows Server 2008 R2 64bit
- Ubuntu
- Linux CentOS
- Linux
Utility
Description
Version
Size
Date
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM CLI
Version : 1.00
125.66 MB
Aug 01, 2017
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Ubuntu,Windows Server 2016 64bit
Manual
Description
Version
Size
Date
Description
Version
Size
Date
RESOURCES
Success Case
Articles
Success Case | June 01, 2023
Using GIGABYTE, NIPA Cloud Soars Among CSP Giants in Thailand
NIPA Cloud is a leading public and private cloud service provider in Thailand. It has purchased multiple GIGABYTE R-Series Rack Servers to support the launch of its new service: NIPA Enterprise Public Cloud. Featuring powerful AMD EPYC™ processors and smart management functions, GIGABYTE servers boast the performance, availability, and power efficiency that can help NIPA Cloud go toe-to-toe with some of the world’s biggest CSPs, such as AWS, GCP, and Microsoft Azure.
Success Case | May 30, 2023
Spain’s IFISC Tackles COVID-19, Climate Change with GIGABYTE Servers
By using GIGABYTE, Spain’s Institute for Cross-Disciplinary Physics and Complex Systems is pitting the world’s foremost server solutions against some of the world’s most pressing issues, including the effects of climate change, pollution, and COVID-19. GIGABYTE servers are up to the diverse and daunting tasks, because they are designed for high performance computing, intensive numerical simulations, AI development, and big data management.
Tech Guide | July 18, 2023
How to Pick a Cooling Solution for Your Servers? A Tech Guide by GIGABYTE
As CPUs and GPUs continue to advance, they consume more power and generate more heat. It is vital to keep temperature control in mind when purchasing servers. A good cooling solution keeps things running smoothly without hiking up the energy bill or requiring persistent maintenance. GIGABYTE Technology, an industry leader in high-performance servers, presents this Tech Guide to help you choose a suitable cooling solution. We analyze three popular options—air, liquid, immersion—and demonstrate what GIGABYTE can do for you.
Tech Guide | May 31, 2022
What is Private Cloud, and is it Right for You?
In the era of cloud computing, just about everyone has heard of the terms “private cloud” and “public cloud”. Chances are, you are using one or both of them in your everyday life—but how much do you really know about them? If you had the chance, could you build a private cloud for yourself or your organization? GIGABYTE Technology, an industry leader in server solutions used by global cloud service providers, is pleased to present our latest Tech Guide. We will examine the difference between private and public clouds, introduce the private cloud’s advantages and limitations, and then introduce GIGABYTE products that may help you build and operate a private cloud of your own.
Tech Guide | March 16, 2022
What is Big Data, and How Can You Benefit from It?
You may be familiar with the term, “big data”, but how firm is your grasp of the concept? Have you heard of the “5 V’s” of big data? Can you recite the “Three Fundamental Steps” of how to use big data? Most importantly, do you know how to reap the benefits through the use of the right tools? GIGABYTE Technology, an industry leader in high-performance server solutions, is pleased to present our latest Tech Guide. We will walk you through the basics of big data, explain why it boasts unlimited potential, and finally delve into the GIGABYTE products that will help you ride high on the most exciting wave to sweep over the IT sector.
Tech Guide | February 11, 2022
The Advantages of ARM: From Smartphones to Supercomputers and Beyond
Processors based on the ARM architecture, an alternative to the mainstream x86 architecture, is gradually making the leap from mobile devices to servers and data centers. In this Tech Guide, GIGABYTE Technology, an industry leader in high-performance server solutions, recounts how ARM was developed. We also explain the various benefits of ARM processors and recommend ARM servers for different sectors and applications.
Tech Guide | January 11, 2022
Cluster Computing: An Advanced Form of Distributed Computing
Cluster computing is a form of distributed computing that is similar to parallel or grid computing, but categorized in a class of its own because of its many advantages, such as high availability, load balancing, and HPC. GIGABYTE Technology, an industry leader in high-performance servers, presents this tech guide to help you learn about cluster computing. We also recommend GIGABYTE servers that can help you benefit from cluster computing.
Tech Guide | January 10, 2022
Setting the Record Straight: What is HPC? A Tech Guide by GIGABYTE
The term HPC, which stands for high performance computing, gets thrown around a lot nowadays, as server solutions become more and more ubiquitous. It is running the risk of becoming a catchall phrase: anything that is “HPC” must be the right choice for your computing needs. You may be wondering: what exactly are the benefits of HPC, and is HPC right for you? GIGABYTE Technology, an industry leader in high-performance servers, presents this tech guide to help you understand what HPC means on both a theoretical and a practical level. In doing so, we hope to help you evaluate if HPC is right for you, while demonstrating what GIGABYTE has to offer in the field of HPC.
Video
Video | July 28, 2021
Heroes Ascension
Over the past year or so, due to global warming and climate changes, all parts of the world have witnessed extreme weather events that are more severe than ...
Video | March 25, 2021
What is it? Data Center in 60 Seconds
What is a data center? A data center is a facility that an organization uses for housing their IT equipment, including servers, storage, ...
Security & Technical Advisory
Others

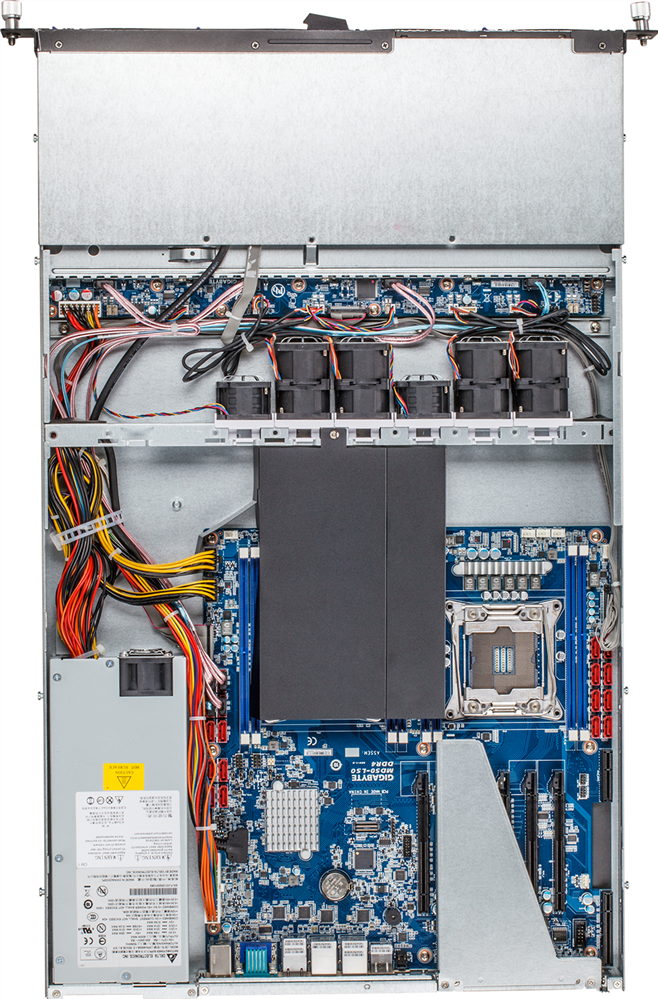

Back to R160-S34
