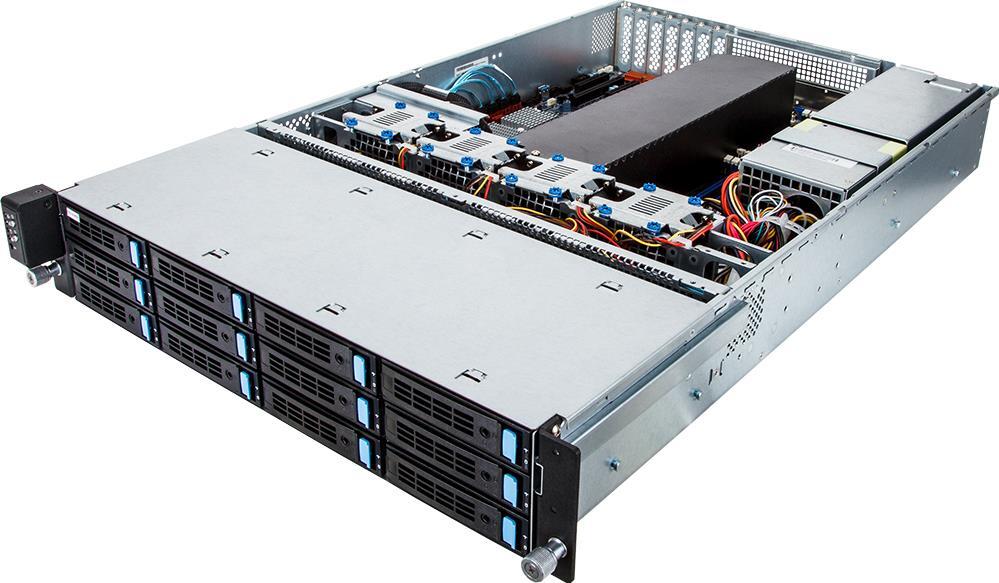

R270-R3C
Discontinued
Dual Socket 2U Rackmount Server
Standard Rackmount Server
- Intel® Xeon® processor E5-2600 V3 / V4 product family
- 16 x RDIMM/LRDIMM ECC DIMM slots
- 12 x 3.5" hot-swappable HDD/SSD bays
- Supports SAS 12Gb/s and SATA III 6Gb/s connections
- 2 x 10GbE BASE-T LAN ports (Intel® X540)
- 2 x 750W 80 PLUS Gold 100~220V AC redundant PSUs
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
430 x 87 x 712.4
430 x 87 x 712.4

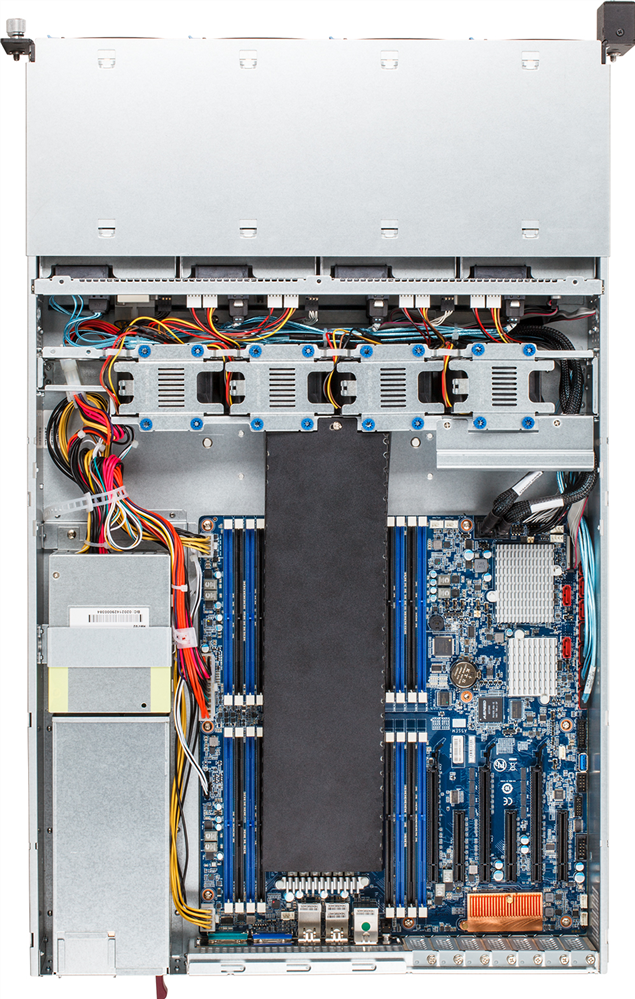

Motherboard
CPU
Intel® Xeon® E5-2600 V3 processors
Intel® Xeon® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.
Intel® Xeon® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.
Socket
2 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset
Intel® C612
Memory
16 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
LAN
2 x 10GbE BASE-T LAN ports (Intel® X540)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
Storage
12 x 3.5" hot-swappable HDD/SSD bays
2.5" HDD/SSD supported
Default configuration supports:
- 4 x SATA drives (from Intel® C612)
- 8 x SAS drives (from LSI® SAS 3008 controller)
SATA
8 x SATA III 6Gb/s ports
2 x SATA III 6Gb/s ports supporting SATA DOM
2 x SATA III 6Gb/s ports supporting SATA DOM
SAS
2 x Mini-SAS HD connectors (for 8 x SAS 12Gb/s)
LSI® SAS 3008 controller
LSI® SAS 3008 controller
RAID
Intel® SATA RAID 0/1/10/5
LSI® SAS RAID 0/1/1E/10
LSI® SAS RAID 0/1/1E/10
Peripheral Drives
-
Expansion Slots
3 x PCIe x16 (Gen3 x16 bus) connectors
1 x PCIe x8 (Gen2 x4 bus) connector
or (via PCIe switch):
1 x PCIe x16 (Gen3 x16 bus) connector
2 x PCIe x16 (Gen3 x8 bus) connectors
2 x PCIe x8 (Gen3 x8 bus) connectors
1 x PCIe x8 (Gen2 x4 bus) connector
1 x PCIe x8 (Gen2 x4 bus) connector
or (via PCIe switch):
1 x PCIe x16 (Gen3 x16 bus) connector
2 x PCIe x16 (Gen3 x8 bus) connectors
2 x PCIe x8 (Gen3 x8 bus) connectors
1 x PCIe x8 (Gen2 x4 bus) connector
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
5 x System fan headers
10 x SATA III 6Gb/s ports
2 x Mini-SAS HD connectors
1 x USB 3.0 vertical type A
1 x USB 3.0 header
1 x USB 2.0 header
1 x Serial header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
2 x SATA SGPIO headers
1 x Chassis intrusion header
1 x LSI UART header
2 x JTAG headers
1 x PMBus connector
1 x IPMB connector
2 x SATA DOM jumpers
1 x BIOS recovery jumper
1 x BIOS password recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x BMC FRB jumper
1 x Clear CMOS jumper
1 x S3 mask jumper
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
5 x System fan headers
10 x SATA III 6Gb/s ports
2 x Mini-SAS HD connectors
1 x USB 3.0 vertical type A
1 x USB 3.0 header
1 x USB 2.0 header
1 x Serial header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
2 x SATA SGPIO headers
1 x Chassis intrusion header
1 x LSI UART header
2 x JTAG headers
1 x PMBus connector
1 x IPMB connector
2 x SATA DOM jumpers
1 x BIOS recovery jumper
1 x BIOS password recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x BMC FRB jumper
1 x Clear CMOS jumper
1 x S3 mask jumper

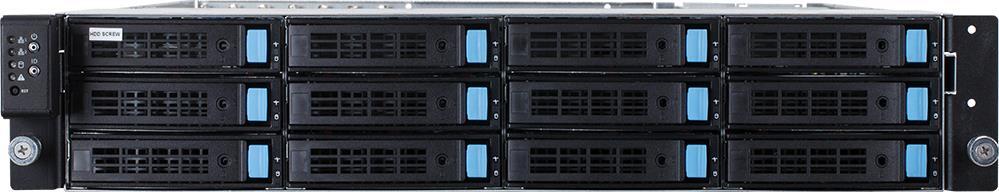

Front I/O
1 x Power button with LED
1 x ID button with LED
2 x LAN LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button
1 x ID button with LED
2 x LAN LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button

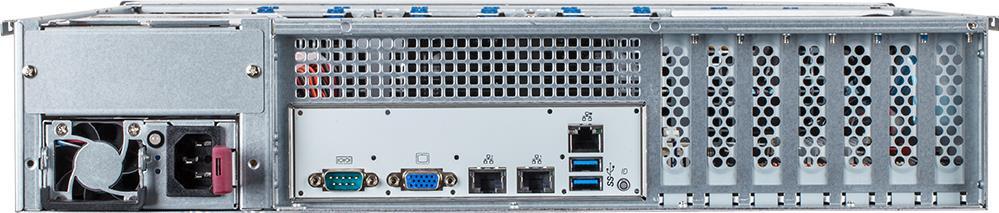

Rear I/O
2 x USB 3.0
1 x Serial
1 x VGA
3 x RJ45
1 x ID button with LED
1 x Serial
1 x VGA
3 x RJ45
1 x ID button with LED
Backplane Board
12 x SAS/SATA ports
Default configuration supports:
- 8 x SAS drives
- 4 x SATA drives
Default configuration supports:
- 8 x SAS drives
- 4 x SATA drives
TPM
1 x TPM header
Power Supply
2 x 750W redundant PSUs
80 PLUS GOLD
AC input:
- 100-240V, 50-60Hz, 9.50/5.00A
DC output:
- 750W
System Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
OS Compatibility
Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
System Fans
4 x 80x80x38mm (14'900rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
18 kg
Packaging Dimensions
982 x 588 x 268 mm
Packaging Content
1 x R270-R3C
1 x Driver CD
2 x CPU heatsinks
1 x Rail kit
1 x Driver CD
2 x CPU heatsinks
1 x Rail kit
Part Numbers
Barebone package: 6NR270R3CMR-00
Spare parts:
- Rail kit: 25HB2-086300-I0R
- CPU heatsink: 25ST1-24320B-A8R/25ST1-24320C-A8R
- Back plane board: 9CBP20C0NR-00
- Power supply: 25EP0-207506-L0S
- Power supply PDB: 25EP0-207508-L0S
- AC/DC power supply: 25EP0-20750A-L0S (in option)
- Screws for 1 x 2.5" HDD: 25KSD-130041-S0R
