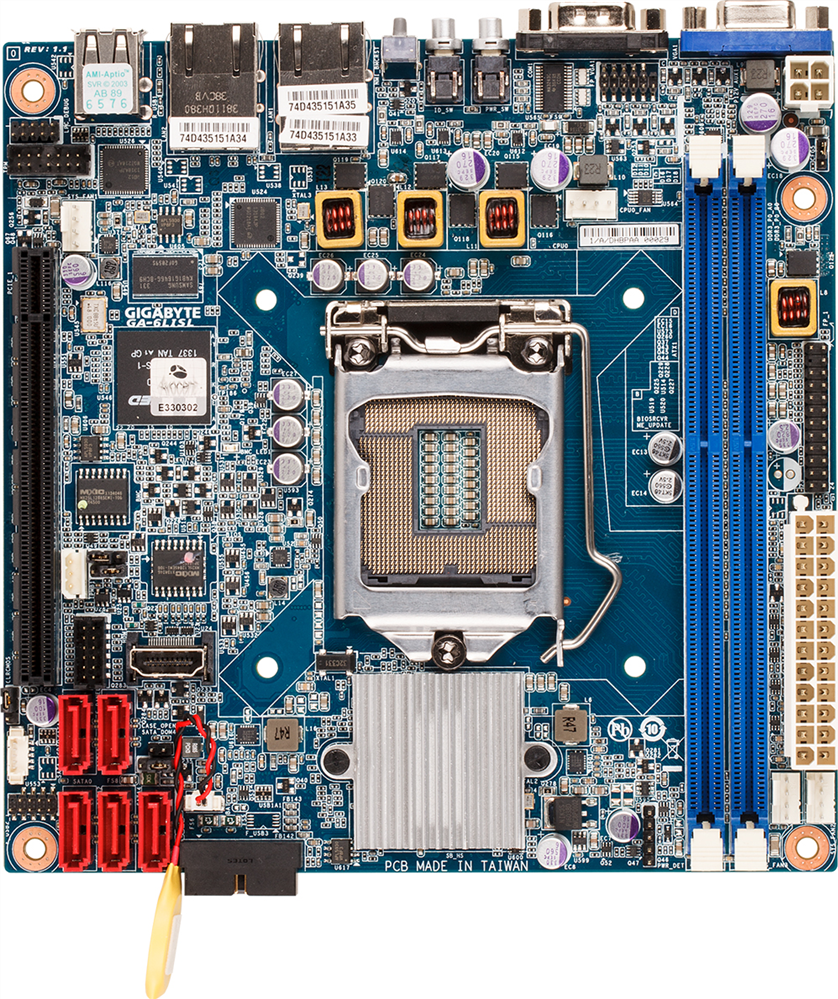

GA-6LISL

Discontinued

Intel® C226 chipset
  • Mini-ITX form factor
  • Intel® Xeon® processor E3-1200 V3 & V4 product families
  • Intel® C226
  • 2 x GbE LAN ports (Intel® I210)
  • 2 x DIMM slots, up to 16GB UDIMM ECC 1600MHz
  • 5 x SATA III 6Gb/s
  • Aspeed® AST2300 remote management controller
  • Buy online
  • Super Small Footprint for High Density Server Farms or Mini SMB Servers
    With a full feature set of ports and connectors, this motherboard is an ideal start to build very compact home or SMB servers, or to build high density storage and hosting servers at larger scales.
  • Xeon E3V3E5V2
  • Dual GbE LAN
  • PCIe Gen.3
  • Server Management
    The GA-6UASV4 is equipped with an ASPEED AST2150 board management controller (BMC), providing support for:
    • iKVM
    • Native PCIe
    • 2D Video Graphic Adapter with PCIe bus interface
  • Red Hat Certified Hardware
    GIGABYTE certifies its server hardware with Red Hat Enterprise Linux to provide its customers with the confidence of knowing that their hardware systems are supported by Red Hat when they run Red Hat Enterprise Linux.
  • VMware Ready
    The VMware Ready program allows customers to quickly identify products and solutions from VMware's partners, which are optimized for VMware vSphere.
    The VMware Ready logo certifies that this product addresses VMware's specific criteria in terms of integration and compatibility, and that it is ready to execute mission-critical applications and operations.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Form Factor
Mini-ITX
170W x 170D (mm)
CPU
Supports Intel® Xeon® processor E3-1200 V3 & V4 product families
Supports 4th gen Intel® Core™ i3, Pentium® and Celeron® processors*

*If used with non-ECC memory, supported on client OS only. If used with ECC memory, supported on both client and server OS.
Socket
1 x LGA 1150
Chipset
Intel® C226
Memory
2 x DIMM slots
Supports unbuffered ECC UDIMM modules
Supports single rank and dual rank UDIMM modules
Up to 16GB
1333/1600/(1866*) MHz

*Supported by Intel® Xeon® E3-1200 V4 processors only
LAN
2 x GbE LAN ports (Intel® I210-AT)
Video
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
(Aspeed® AST1300 in option)
Audio
-
SAS
-
SATA
5 x SATA III 6Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) slot
Internal I/O
1 x Front panel VGA header
1 x 24-pin ATX main power connector
1 x 4-pin 12V auxiliary power connector
1 x PCIe x16 and x8 bandwidth switch jumper
1 x CPU fan header
1 x Front panel header
3 x System fan headers
1 x PMBus connector
1 x USB 3.0 header
1 x USB 2.0 header
1 x HDMI connector
1 x SATA port 4 DOM support jumper
1 x Case open intrusion header
1 x Battery power cable connector
5 x SATA III 6Gb/s ports
1 x SATA SGPIO header
1 x Clear CMOS jumper
1 x ME update jumper
1 x BIOS recovery jumper
1 x BMC readiness LED
1 x IPMB connector
1 x TPM header

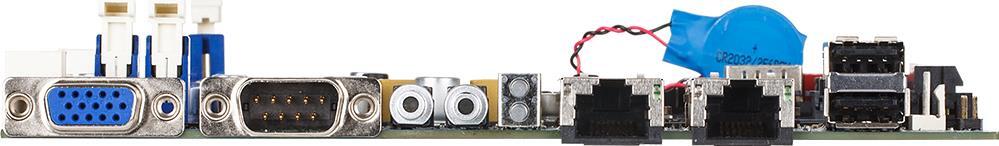

Rear I/O
2 x USB 2.0
1 x VGA
1 x Serial
2 x RJ45
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
TPM
1 x TPM header
OS Compatibility
Windows Server 2012 R2 (x64)
Windows Server 2008 R2 (x64)

Red Hat Enterprise Linux 5.9 (x86/x64)
Red Hat Enterprise Linux 6.4 (x86/x64)

SUSE Linux Enterprise Server 11.3 (x86/x64)

VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Board Management
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
-Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
PSU Connectors
1 x 24-pin ATX main power connector
1 x 4-pin 12V auxiliary power connector
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x Driver CD
1 x I/O shield
1 x Manual
1 x SATA III 6Gb/s cable
2 x SATA II 3Gb/s
Reference Numbers
Retail:9M6LISLMR-00
Bulk: 9M6LISLNR-00
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SUPPORT

  • All
  • All
  • Windows Server 2012 R2 64bit
  • Windows Server 2012 64bit
  • Windows Server 2008 R2 64bit
  • Windows Server 2008 R2
  • Windows Server 2008 64bit
  • Windows Server 2008 32bit
  • Windows 8.1 64bit
  • Windows 7 64bit
  • Windows 7 32bit
  • SuSE Linux Enterprise 11.3 64bit
  • SuSE Linux Enterprise 11.3 32bit
  • Red Hat Enterprise Linux Server 6.4 64bit
  • Red Hat Enterprise Linux Server 6.4 32bit
Chipset
Chipset
Version
Size
Date
Intel® INF Driver
Version : 9.4.0.1027
5.23 MB
May 15, 2014
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 18.8
78.49 MB
May 15, 2014
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® LAN Driver and Utility
Version : 18.8
78.49 MB
May 15, 2014
OS: Red Hat Enterprise Linux Server 6.4 32bit,Red Hat Enterprise Linux Server 6.4 64bit,SuSE Linux Enterprise 11.3 32bit,SuSE Linux Enterprise 11.3 64bit
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 3.8.0.1111
16.07 MB
May 16, 2014
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 3.8.0.1111
3.55 MB
May 16, 2014
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
USB 3.0
USB 3.0
Version
Size
Date
Intel® USB 3.0 Driver
Version : 3.0.0.16
5.2 MB
May 20, 2014
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2008 R2 64bit
VGA
VGA
Version
Size
Date
ASPEED Graphic Driver
Version : 0.98
26.52 MB
Feb 10, 2014
OS: Red Hat Enterprise Linux Server 6.4 32bit,Red Hat Enterprise Linux Server 6.4 64bit,SuSE Linux Enterprise 11.3 32bit,SuSE Linux Enterprise 11.3 64bit
ASPEED Graphic Driver
Version : 0.98
26.52 MB
Feb 10, 2014
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.

What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
