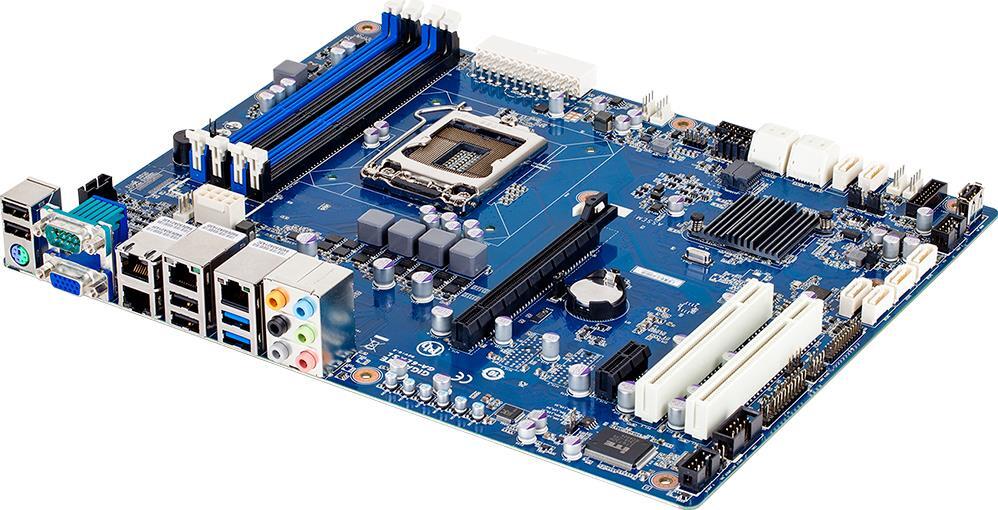

GA-6LXSLLegacy | Software updates supported

ATX
305W x 244D (mm)

Supports Intel^® Xeon^® processor E3-1200 V3 product family
Supports 4^th gen Intel^® Core™ processor family

1 x LGA 1150

Intel^® H87

4 x DIMM slots
Supports non-ECC, un-buffered UDIMM modules only
Supports single rank and dual rank UDIMM modules
Up to 32GB
1333/1600/(1866*) MHz

*Supported by Intel^® Xeon^® E3-1200 V4 processors only

4 x GbE LAN ports (Realtek^® 8111F-VB)

Integrated graphics processor
1 x VGA port, supporting a maximum resolution of 1920x1200

Realtek^® ALC887 controller

• Supports 2/4/5.1/7.1 channel configurations
• Support for S/PDIF-Out

-

6 x SATA III 6Gb/s ports via Intel^® H87 chipset
4 x SATA III 6Gb/s ports via Marvell^® 88SE9230 chipset

Intel^® SATA RAID 0/1/10/5
Marvell^® SATA RAID 0/1/10

1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x1 (Gen2 x1 bus) slot
2 x PCI slots

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
10 x SATA III 6Gb/s ports
1 x TPM header
1 x USB 3.0 header
1 x USB 2.0 header
1 x USB 2.0 Type A connector
1 x Front panel header
1 x Back plane board header
1 x Front panel audio header
4 x System fan headers
1 x CPU fan header
1 x S/PDIF-In header
1 x S/PDIF-Out header
1 x Serial header
1 x SATA SGPIO header
1 x Case open intrusion header
1 x Clear CMOS jumper
1 x SATA port 0 DOM Support jumper
1 x SATA port 1 DOM Support jumper
1 x Clear password jumper
1 x BIOS Recovery jumper
1 x ME Recovery jumper

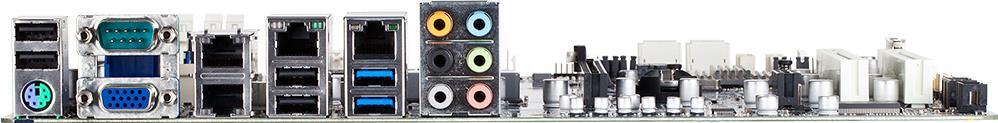

2 x USB 3.0
4 x USB 2.0
1 x PS/2
1 x VGA
1 x Serial
4 x RJ45
6 x Audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

1 x TPM header

Windows Server 2008 R2 SP1 (x64)
Windows Server 2012 (x64)
Windows 7 SP1 Ultimate (x86/x64)
Windows 8 Enterprise (x86/x64)

Red Hat Enterprise Linux 5.9 (x86/x64)
Red Hat Enterprise Linux 6.4 (x86/x64)

SUSE Linux Enterprise Server 11.3 (x86/x64)

-

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

1 x Driver CD
1 x I/O shield
2 x SATA II 3Gb/s cable (500mm)

Retail: 9M6LXSLMR-00
Bulk: 9M6LXSLNR-00
