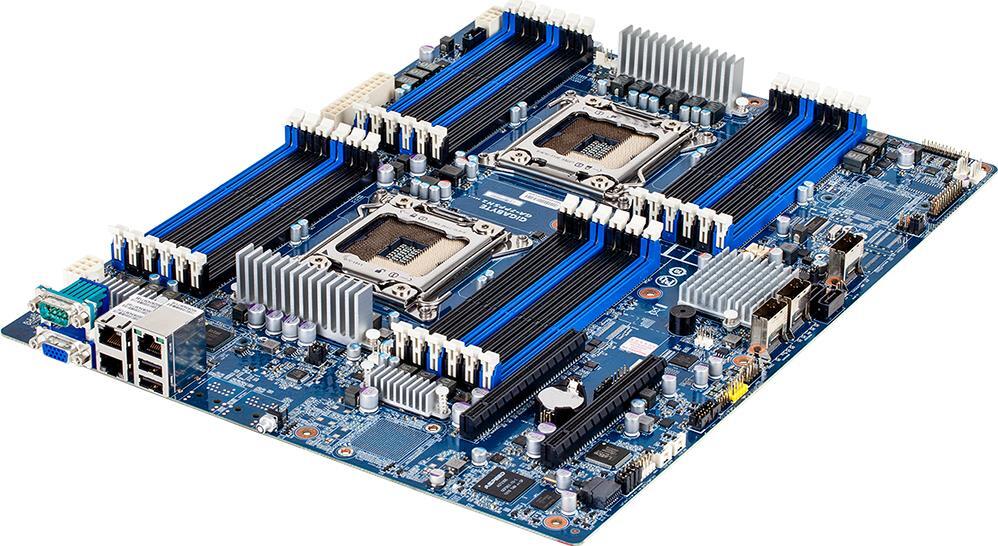

GA-7PPSH2Legacy | Software updates supported
Intel® C602 chipset
- Intel® Xeon® processor E5-2600 & E5-2600 V2 product families
- 24 x RDIMM/UDIMM ECC DIMM slots
- 2 x GbE LAN ports (Intel® I350-AM2)
- 2 x SATA III 6Gb/s + 4 x SATA II 3Gb/s
- Aspeed® AST2300 remote management controller
- Overview
- Specifications
- Support
- Related Resources
Specifications
Form Factor
Proprietary form factor, compatible with EEB
305W x 395D mm
305W x 395D mm
CPU
Supports:
- Intel® Xeon® E5-2600 V2 processors
- Intel® Xeon® E5-1600 V2 processors (single CPU configuration only)
- Intel® Xeon® E5-2600 processors
- Intel® Xeon® E5-1600 processors (single CPU configuration only)
Socket
2 x LGA 2011
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset
Intel® C602
Memory
24 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E5-2600 V2 processors only
Download the detailed memory configuration table for the E5-1600/2600 V2 processors
Download the detailed memory configuration table for the E5-1600/2600 processors
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E5-2600 V2 processors only
Download the detailed memory configuration table for the E5-1600/2600 V2 processors
Download the detailed memory configuration table for the E5-1600/2600 processors
LAN
2 x GbE LAN ports (Intel® I350-AM2)
1 x 10/100 management LAN
1 x 10/100 management LAN
Video
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
SAS
1 x Mini-SAS (for 4 x SATA II 3Gb/s ports)
2 x Mini-SAS (disabled, can be enabled via Intel® upgrade key)
2 x Mini-SAS (disabled, can be enabled via Intel® upgrade key)
SATA
2 x SATA III 6Gb/s ports
RAID
Intel® SATA RAID 0/1/5/10
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x16 (Gen3 x8 bus) slot
1 x PCIe x16 (Gen3 x8 bus) slot
Internal I/O
2 x 8-pin ATX 12V power connectors
1 x 24-pin ATX main power connector
1 x PMBus connector
1 x HDD back plane board connector
2 x CPU fan headers
2 x System fan headers
1 x Front panel header
3 x Mini-SAS cable connectors
2 x SATA III 6Gb/s ports
2 x USB 2.0 headers
1 x IPMB connector
1 x TPM header
1 x Patsburg-A SKU Select connector
1 x RAID select connector
1 x Serial header
1 x CMOS battery
1 x 24-pin ATX main power connector
1 x PMBus connector
1 x HDD back plane board connector
2 x CPU fan headers
2 x System fan headers
1 x Front panel header
3 x Mini-SAS cable connectors
2 x SATA III 6Gb/s ports
2 x USB 2.0 headers
1 x IPMB connector
1 x TPM header
1 x Patsburg-A SKU Select connector
1 x RAID select connector
1 x Serial header
1 x CMOS battery
Rear I/O
2 x USB 2.0
1 x VGA
1 x Serial
3 x RJ45
1 x ID button with LED
1 x VGA
1 x Serial
3 x RJ45
1 x ID button with LED
TPM
1 x TPM header
OS Compatibility
Windows Server 2003 R2 SP1 (x64)
Windows Server 2008 SP2 (x86/x64)
Red Hat Enterprise Linux 6.2 (x86/x64)
SUSE Linux Enterprise Server 11.2 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Windows Server 2008 SP2 (x86/x64)
Red Hat Enterprise Linux 6.2 (x86/x64)
SUSE Linux Enterprise Server 11.2 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Board Management
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 8-pin ATX 12V power connectors
Retail Packaging Content
-
Reference Numbers
Bulk: 9M7PPSH2NR-00
