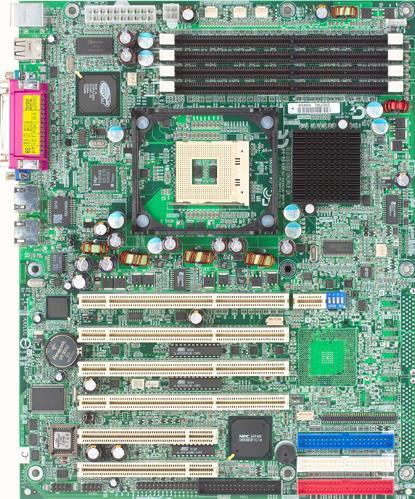

GA-8EGXR-CLegacy | Software updates supported
- Server Works® GC-SL, CSB6, ATI® Rage XL 8MB
- Intel® P4 Processor (Socket 478/533MHz FSB/3.06Hz)
- Max. 4GB Registered (ECC) DDR-266 Memory in 4 DIMM Slots
- 4 PCI 64-Bit/33MHz (3.3V) and 2 PCI 32-Bit/33MHz
- 2 ATA-100 Channels
- Intel® 82550PM 10/100 Mbps Fast Ethernet and 82540EM Gigabit Ethernet with Advanced Software Functions
- ATX 12”W x 9.6”D, ATX + 12V Auxiliary Power, VRM 9.0
- Specifications
- Support
- Related Resources
Specifications
CPU
- Supports Intel® P4 Processor up to3.06 GHz
- 533 Mhz FSB
- Socket 478
Chipset
- Serverworks® GC-SL/CSB6
LAN
- Intel® 82540EM Gigabit Controller
- Intel® 82550PM 10/100 Controller
- Wake On LAN (WOL)
- Adapter Fault Tolerance (AFT)
- Adaptive Load Balancing (ALB)
- EtherChannel* (FEC/GEC)
Video
- ATI® Rage-XL on board with 8MB memory
IDE / SCSI
- Dual ATA 100 IDE channels
Expansion Slots
- 4 x PCI 64/33MHz
- 2 x PCI 32/33MHz
Rear I/O
- 2 x PS/2
- 2 x USB
- 1 x COM
- 1 x LPT
- 2 x LAN RJ45
[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#2] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#3] All trademarks and logos are the property of their respective owners.
