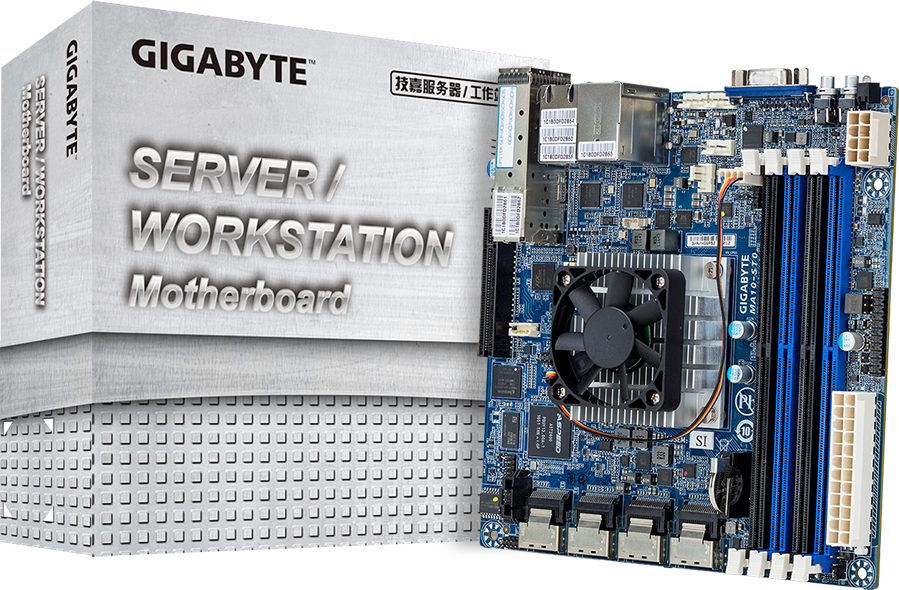

MA10-ST0
(rev. 1.1)
Discontinued
Intel® Atom™ C3958 SoC
- Intel® Atom™ C3958 SoC
- Intel® QuickAssist Technology (QAT)
- 32GB eMMC flash memory
- Dual Channel RDIMM/ECC UDIMM DDR4, 4 x DIMMs
- 2 x 10Gb/s SFP+ and 2 x 1Gb/s LAN ports
- 1 x Dedicated management port
- 4 x Mini-SAS up to 16 x SATA 6Gb/s ports
- 1 x PCIe Gen3 x8 slot
- Aspeed® AST2400 remote management controller
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
Mini-ITX
170W x 170D (mm)
170W x 170D (mm)
CPU
Intel® Atom™ C3958 SoC, 2.0Ghz, 16 cores
16MB L2 cache
31W TDP
DDR4 Frequency 2400Mhz
16MB L2 cache
31W TDP
DDR4 Frequency 2400Mhz
Socket
1 x BGA 1310
Chipset
-
Memory
4 x DDR4 slots
Dual channels, 2DPC, 1.2V
2400/2133/1866 MHz
up to 32GB for ECC R-DIMM
up to 32GB for ECC/non-ECC UDIMM
Dual channels, 2DPC, 1.2V
2400/2133/1866 MHz
up to 32GB for ECC R-DIMM
up to 32GB for ECC/non-ECC UDIMM
Flash Memory
32GB eMMC
LAN
2 x 10Gb/s SFP+ LAN ports
2 x 1Gb/s LAN ports (Intel® I210-AT)
1 x 10/100/1000 management LAN
2 x 1Gb/s LAN ports (Intel® I210-AT)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
SAS
-
SATA
4 x Mini-SAS up to 16 x SATA 6Gb/s ports
- 2 x Mini-SAS ports are shared with PCIe x8 slot
- 2 x Mini-SAS ports are shared with PCIe x8 slot
RAID
-
Expansion Slots
1 x PCIe x8 (Gen3 x8 bus) slot
- Shared with Mini-SAS ports, Mini_CN2, Mini_CM3
- Shared with Mini-SAS ports, Mini_CN2, Mini_CM3
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x Mini-SAS SFF8087 ports
1 x CPU fan header
4 x System fan headers
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x JTAG BMC header
1 x Clear CMOS jumper
1 x IPMB connector
1 x PMBus connector
1 x COM (RS-232)
1 x 8-pin ATX 12V power connector
4 x Mini-SAS SFF8087 ports
1 x CPU fan header
4 x System fan headers
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x JTAG BMC header
1 x Clear CMOS jumper
1 x IPMB connector
1 x PMBus connector
1 x COM (RS-232)
Rear I/O
1 x Power button with LED
1 x ID button with LED
1 x Status LED
1 x VGA port
2 x USB 2.0 ports
2 x SFP+ LAN ports
2 x RJ45 LAN ports
1 x MLAN RJ45 port
1 x ID button with LED
1 x Status LED
1 x VGA port
2 x USB 2.0 ports
2 x SFP+ LAN ports
2 x RJ45 LAN ports
1 x MLAN RJ45 port
TPM
1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
Optional TPM2.0 kit: CTM000
OS Compatibility
Windows Server 2012 R2 with Update
Windows Server 2016
Red Hat Enterprise Linux Server 7.1
SuSE Linux Enterprise Server 12
Ubuntu 14.04.2 LTS
Fedora 22
CentOS 7.1
Windows Server 2016
Red Hat Enterprise Linux Server 7.1
SuSE Linux Enterprise Server 12
Ubuntu 14.04.2 LTS
Fedora 22
CentOS 7.1
Board Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin 12V auxiliary power connector
1 x 8-pin 12V auxiliary power connector
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MA10-ST0
1 x I/O shield
1 x Quick start guide
1 x I/O shield
1 x Quick start guide
Reference Numbers
Retail: 9MA10ST0MR-SI
I/O shield: 12AIO-MB10D0-00R
I/O shield: 12AIO-MB10D0-00R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
Firmware
QVL
- All
- All
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
Chipset
Chipset
Version
Size
Date
Intel® INF Driver
Version : 10.1.2.85
3.16 MB
Aug 28, 2017
OS: Windows Server 2012 R2 64bit,Windows Server 2016 64bit
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 22.4
313.98 MB
Aug 28, 2017
OS: Windows Server 2012 R2 64bit,Windows Server 2016 64bit
VGA
VGA
Version
Size
Date
ASPEED Graphic Driver
Version : 1.03
0.57 MB
Aug 28, 2017
OS: Windows Server 2012 R2 64bit,Windows Server 2016 64bit
BIOS
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2019
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows Server 2008 R2 64bit
- Linux
Utility
Description
Version
Size
Date
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM CLI
Version : 1.00
125.66 MB
Jul 31, 2017
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit,Windows Server 2016 64bit
