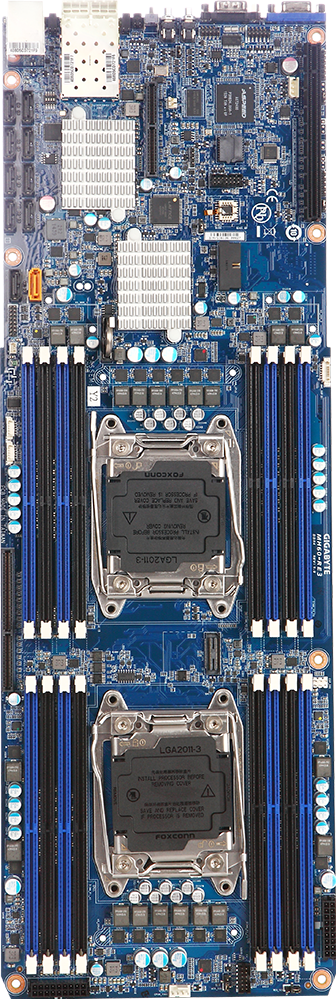

MH60-RE1
Discontinued
Intel® C612 chipset
- Intel® Xeon® processor E5-2600 V3 / V4 product families
- 16 x RDIMM/LRDIMM DDR4 DIMM slots
- 2 x 10GbE SFP+ LAN port (Mellanox® ConnectX-3)
- 1 x GbE LAN port (Intel® I210)
- 10 x SATA III 6Gb/s
- 4 x USB 3.0
- Aspeed® AST2400 remote management controller
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
Proprietary half-width form factor
165W x 492D (mm)
165W x 492D (mm)
CPU
Intel® Xeon® E5-2600 V3 processors
Intel® Xeon® E5-2600 V4 processors
NOTE: If only one CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.
Intel® Xeon® E5-2600 V4 processors
NOTE: If only one CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.
Socket
2 x LGA 2011-3
Mounting pitch: narrow ILM (56x94mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Mounting pitch: narrow ILM (56x94mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset
Intel® C612
Memory
16 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
LAN
2 x 10GbE SFP+ LAN port (Mellanox® ConnectX-3)
1 x GbE LAN ports (Intel® I210)
1 x GbE LAN ports (Intel® I210)
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
SAS
-
SATA
10 x SATA III 6Gb/s ports
SATA DOM supported
SATA DOM supported
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x8 mezzanine (Gen3 x8 bus) slot
1 x Slim PCIe x16 (Gen3 x16 bus) slot for max. 2 x NVMe supported
1 x PCIe x8 mezzanine (Gen3 x8 bus) slot
1 x Slim PCIe x16 (Gen3 x16 bus) slot for max. 2 x NVMe supported
Internal I/O
2 x 18-pin ATX 12V power connectors
10 x SATA III 6Gb/s ports
1 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x COM_2 header
1 x Front VGA header
1 x Front panel header
1 x Front MLAN header
1 x SATA SGPIO header
1 x SSATA SGPIO header
1 x BMC SGPIO header
1 x Software RAID header
1 x JTAG BMC header
1 x PMBus header
1 x PLD header
1 x Clear CMOS jumper
1 x S3 mask jumper
1 x ME recovery jumper
1 x LT debug jumper
1 x BIOS WP jumper
1 x BIOS recovery jumper
1 x BIOS password recovery jumper
1 x ME update jumper
1 x IPMB connector
10 x SATA III 6Gb/s ports
1 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x COM_2 header
1 x Front VGA header
1 x Front panel header
1 x Front MLAN header
1 x SATA SGPIO header
1 x SSATA SGPIO header
1 x BMC SGPIO header
1 x Software RAID header
1 x JTAG BMC header
1 x PMBus header
1 x PLD header
1 x Clear CMOS jumper
1 x S3 mask jumper
1 x ME recovery jumper
1 x LT debug jumper
1 x BIOS WP jumper
1 x BIOS recovery jumper
1 x BIOS password recovery jumper
1 x ME update jumper
1 x IPMB connector

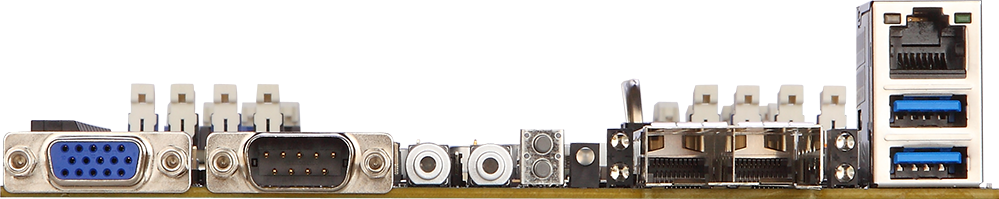

Rear I/O
2 x USB 3.0
1 x VGA
1 x COM_1
2 x SFP+
1 x RJ45
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x BMC reset button
1 x System status LED
4 x LAN activity LEDs
1 x VGA
1 x COM_1
2 x SFP+
1 x RJ45
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x BMC reset button
1 x System status LED
4 x LAN activity LEDs
OS Compatibility
Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
Board Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
PSU Connectors
2 x 18-pin ATX 12V power connectors
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
Firmware
QVL
- All
- All
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows Server 2008 R2 64bit
- Ubuntu 14.04 LTS x86
- Ubuntu 14.04 LTS x64
- Ubuntu 12.04 LTS x86
- Ubuntu 12.04 LTS x64
- SLES 12 x64
- SLES 11.4 x86
- SLES 11.4 x64
- RHEL 7.2 x64
- RHEL 6.7 x86
- RHEL 6.7 x64
Chipset
Chipset
Version
Size
Date
Intel® INF Driver
Version : 10.1.2.10
2.76 MB
Mar 28, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® Management Engine Driver
Version : 9.1.0.1120
102.8 MB
Sep 24, 2014
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 20.7
242.15 MB
Mar 28, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® LAN Driver and Utility
Version : 20.7
242.15 MB
Mar 28, 2016
OS: Ubuntu 14.04 LTS x86,Ubuntu 14.04 LTS x64,RHEL 6.7 x86,RHEL 6.7 x64,RHEL 7.2 x64,Ubuntu 12.04 LTS x86,Ubuntu 12.04 LTS x64,SLES 11.4 x86,SLES 11.4 x64,SLES 12 x64
Intel® LAN Driver and Utility
Version : 21.1
303.94 MB
Mar 22, 2017
OS: Windows Server 2016 64bit
Mellanox LAN Driver
Version : 5.10
38.92 MB
Apr 13, 2017
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 4.5.0.1333
18.62 MB
Mar 28, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 4.5.0.1333
3.59 MB
Mar 28, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 4.6.0.1085
19.4 MB
Mar 21, 2017
OS: Windows Server 2016 64bit
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 4.6.0.1085
7.41 MB
Mar 21, 2017
OS: Windows Server 2016 64bit
USB 3.0
USB 3.0
Version
Size
Date
Etron USB 3.0 Driver
Version : 0.119
11.42 MB
Sep 09, 2014
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit
Intel® USB 3.0 Driver
Version : 3.0.0.33
5.17 MB
Sep 16, 2014
OS: Windows Server 2008 R2 64bit
Etron USB 3.0 Driver
Version : 0.118
11.41 MB
Sep 17, 2014
OS: Windows Server 2008 R2 64bit
VGA
VGA
Version
Size
Date
ASPEED Graphic Driver
Version : 0.99
35.32 MB
Sep 09, 2014
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
ASPEED Graphic Driver
Version : 1.03
0.57 MB
Aug 28, 2017
OS: Windows Server 2012 R2 64bit,Windows Server 2016 64bit
BIOS
Description
Version
Size
Date
Security update for 2019.2 Intel Platform Update (IPU)
[1] Update Microcode:Hasswell-EP M6F306F2_00000043,Broadwell-EP MEF406F1_0B000038
[2] Update ACM :SINIT 3.1.3
[3] Update Update SPS 03.01.03.72.0
[1] Update Microcode:Hasswell-EP M6F306F2_00000043,Broadwell-EP MEF406F1_0B000038
[2] Update ACM :SINIT 3.1.3
[3] Update Update SPS 03.01.03.72.0
Version : R20
13.23 MB
Dec 06, 2019
1. SPEED VBIOS update to 1.09.0 for CVE-2019-6260
2. Fixed INTEL-SA-00233
2. Fixed INTEL-SA-00233
Version : R19
12.98 MB
Jun 17, 2019
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2019
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows Server 2008 R2 64bit
- Linux
Utility
Description
Version
Size
Date
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM CLI
Version : 1.00
125.66 MB
Jul 31, 2017
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit,Windows Server 2016 64bit
