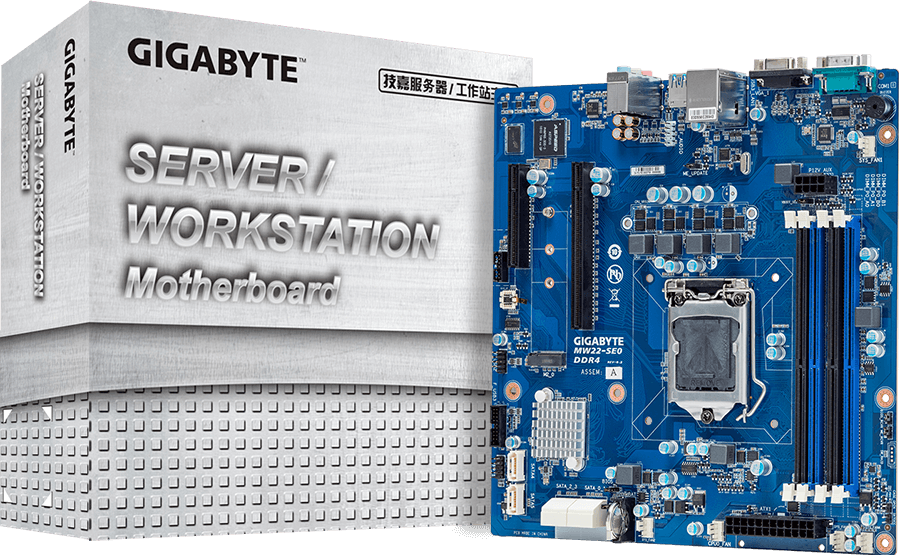

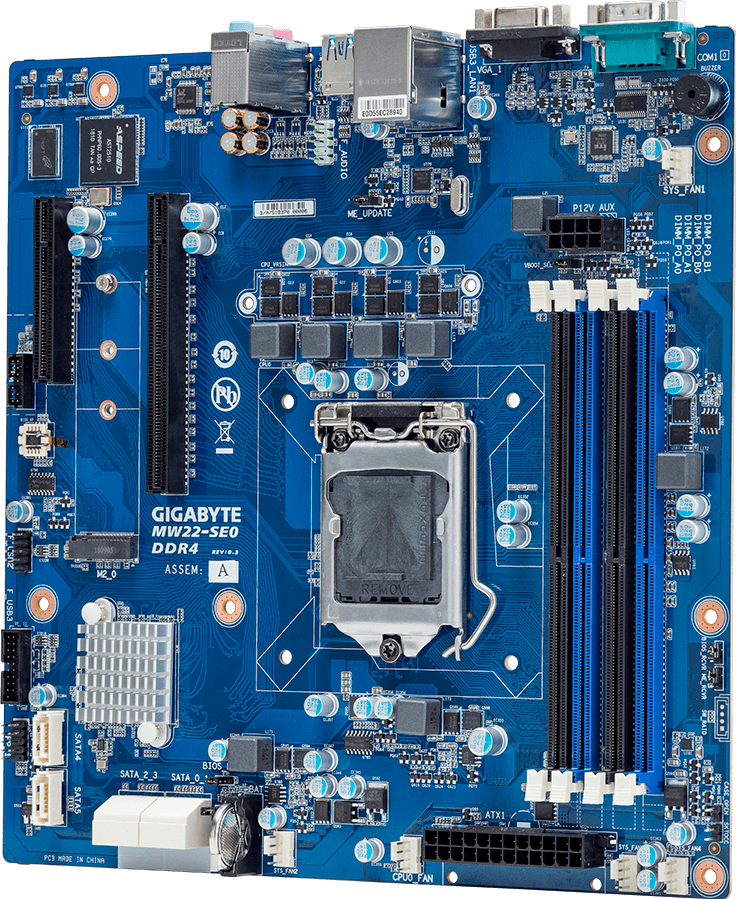

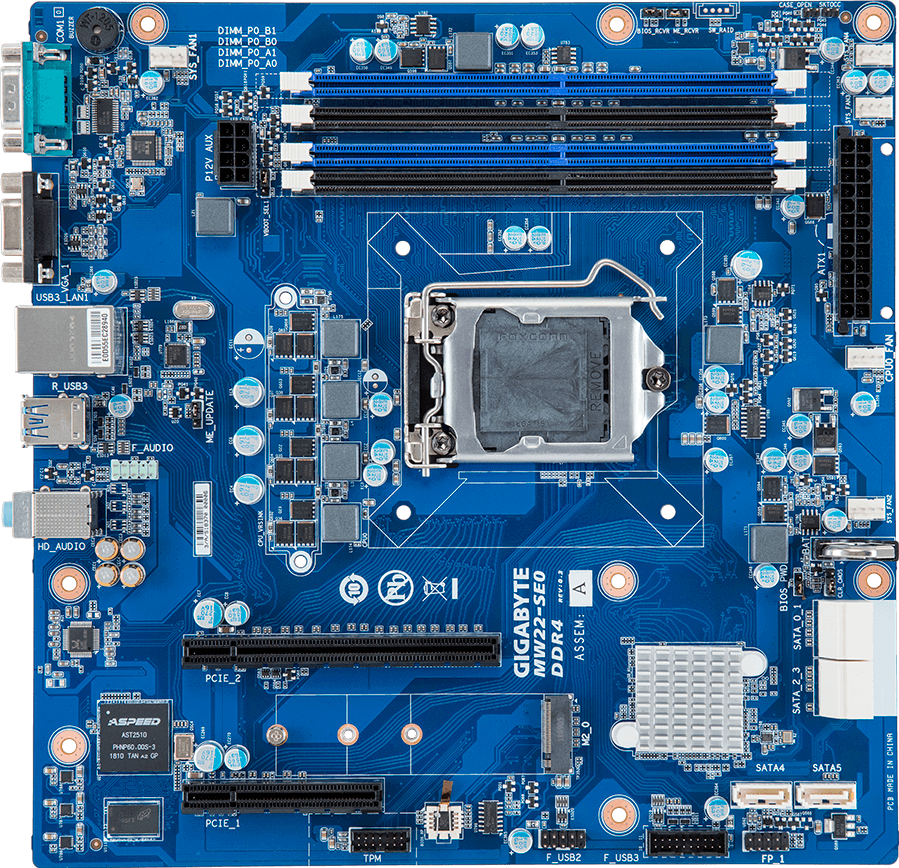

MW22-SE0Legacy | Software updates supported
Intel® C242 chipset
- Entry and small business workstation board
- microATX form factor
- Intel® Xeon® Processor E-2100/ E-2200 series
- Intel® C242 Express Chipset
- 4 x UDIMM slots, DDR4 2666/2400MHz
- 1 x GbE LAN ports (Intel® I219LM)
- 6 x SATA III 6Gb/s ports
- Ultra-Fast M.2 PCIe Gen3 x4 interface
- 2 x PCIe Gen3 expansion slots
- Realtek HD audio codec
- Aspeed® AST2510 video controller
- Intel® Optane™Memory Ready
- Overview
- Specifications
- Support
- Related Resources
Specifications
Form Factor
microATX
244W x 244D (mm)
244W x 244D (mm)
CPU
Intel® Xeon® Processor E-2100/ E-2200 series
8th Gen. Intel Core™ i3/ Pentium®/ Celeron® Processors
8th Gen. Intel Core™ i3/ Pentium®/ Celeron® Processors
Socket
LGA 1151
Chipset
Intel® C242 Express Chipset
Memory
4 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Up to 64GB
Supported speeds: 2666/2400 MHz
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Up to 64GB
Supported speeds: 2666/2400 MHz
LAN
1 x GbE LAN port (Intel® I219LM)
Video
Integrated in Aspeed® AST2510
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
Realtek® ALC887 controller
SAS
-
SATA
6 x SATA III 6Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x PCIe x16 (Gen 3 x16 bus) connector
1 x PCIe x8 (Gen 3 x4 bus) connector
1 x M.2 slot:
- M-key
- PCIe Gen3 x4 per slot
- Supports NGFF-2280/2260/2242 cards
- Intel® Optane™ Memory Ready
1 x PCIe x8 (Gen 3 x4 bus) connector
1 x M.2 slot:
- M-key
- PCIe Gen3 x4 per slot
- Supports NGFF-2280/2260/2242 cards
- Intel® Optane™ Memory Ready
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA III 6Gb/s ports
1 x CPU fan header
4 x System fan header
1 x USB 3.0 header
1 x USB 2.0 header
1 x Front panel header
1 x TPM header
1 x Case open header
1 x Clear CMOS jumper
1 x BIOS password recovery jumper
1 x ME update jumper 1 x Buzzer
1 x 8-pin ATX 12V power connector
6 x SATA III 6Gb/s ports
1 x CPU fan header
4 x System fan header
1 x USB 3.0 header
1 x USB 2.0 header
1 x Front panel header
1 x TPM header
1 x Case open header
1 x Clear CMOS jumper
1 x BIOS password recovery jumper
1 x ME update jumper 1 x Buzzer

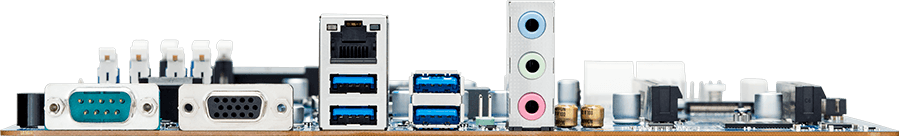

Rear I/O
4 x USB 3.0
1 x VGA
1 x COM
1 x RJ45
3 x Audio jacks
1 x VGA
1 x COM
1 x RJ45
3 x Audio jacks
TPM
1 x TPM header
OS Compatibility
Windows Server 2012 R2 with Update
Windows Server 2016
Red Hat Enterprise Linux 6.9 (x64)
Red Hat Enterprise Linux 7.3 (x64)
SUSE Linux Enterprise Server 11.4 (x64)
SUSE Linux Enterprise Server 12.2 (x64)
Ubuntu 16.04.2 LTS (x64)
VMware ESXi 6.5
Windows Server 2016
Red Hat Enterprise Linux 6.9 (x64)
Red Hat Enterprise Linux 7.3 (x64)
SUSE Linux Enterprise Server 11.4 (x64)
SUSE Linux Enterprise Server 12.2 (x64)
Ubuntu 16.04.2 LTS (x64)
VMware ESXi 6.5
Board Management
-
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
Operating Properties
Operating temperature: 0°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MW22-SE0
1 x I/O shield
1 x Quick start guide
4 x SATA III 6Gb/s cables
Box dimensions: 321 x 308.5 x 78.5 mm
1 x I/O shield
1 x Quick start guide
4 x SATA III 6Gb/s cables
Box dimensions: 321 x 308.5 x 78.5 mm
Bulk Packaging Content
10 x MW22-SE0
10 x I/O shields
Carton dimensions: 609 x 581 x 362 mm
10 x I/O shields
Carton dimensions: 609 x 581 x 362 mm
Reference Numbers
