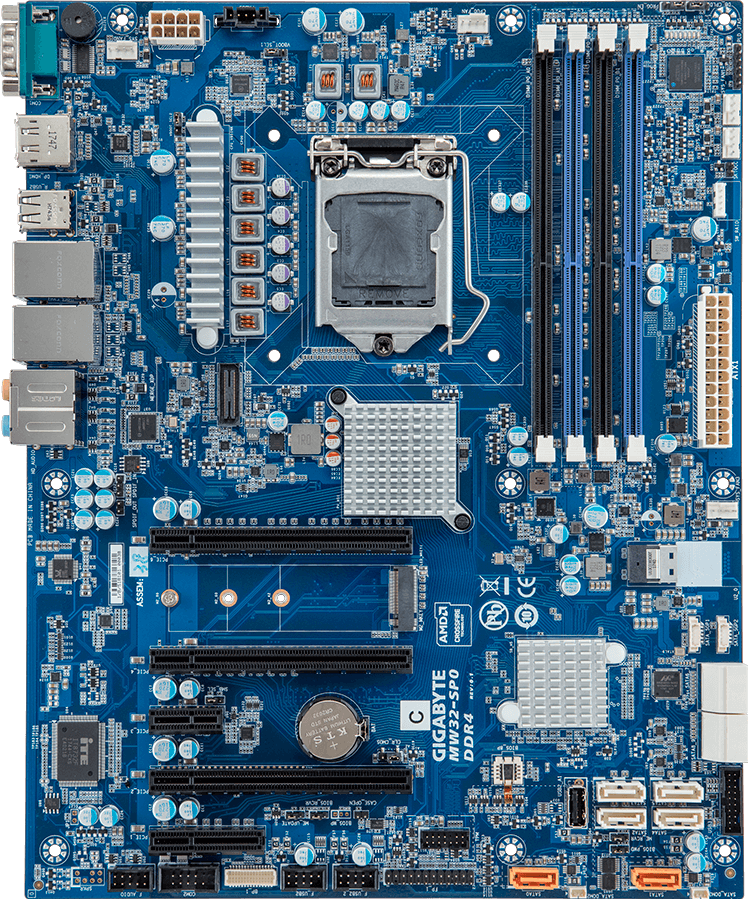

MW32-SP0Legacy | Software updates supported

ATX
305W x 244D (mm)

Intel^® Xeon^® Processor E-2100/ E-2200 series
8th Gen. Intel Core™ i3/ Pentium^®/ Celeron^® Processors

1 x LGA 1151

Intel^® C246 Express Chipset

4 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Up to 64GB
Supported speeds: 2666/2400 MHz

2 x GbE LAN ports (Intel^® I210 and I219LM)

Integrated Graphics Processor-Intel^® HD Graphics support:

1. 1 x DisplayPort, supporting a maximum resolution of 4096x2160@60 Hz or 3840x2160@60 Hz
   * Support for DisplayPort 1.2 version.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
   * Support for HDMI 1.4 version.

Support for up to 2 displays at the same time
Maximum shared memory of 1GB

Realtek^® ALC887 controller
Supports 2/4/5.1/7.1 channel configurations

-

Total 10 x SATA III 6Gb/s ports
- 6 x from Intel^® C246
- 4 x from Marvell^® 88SE9230 controller
SATA0 /SATA1 support SATA DOM

Intel^® SATA RAID 0/1/10/5
Marvell^® SATA RAID 0/1/10

2 x PCIe x16 (Gen3 x16 bus) slot from PCIe switch**
1 x PCIe x1 (Gen3 x1 bus) slot from Intel^® C246
1 x PCIe x16 (Gen3 x8 bus) slot from PCIe switch
1 x PCIe x4 (Gen3 x4 bus) slot from Intel^® C246
** PCIE_4(Gen3 x16 bus) supports Gen3 x8 only when PCIE_2(Gen3 x8 bus) is installed

1 x M.2 slot:
- M-key
- PCIe Gen3 x4 per slot
- Supports NGFF-2280/2260/2242 cards
- Intel® Optane™ Memory Ready

1 x U.2 port:
- Slimline SAS type
- PCIe Gen3 x4 per port

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
10 x SATA III 6Gb/s ports
1 x USB 2.0 vertical type A port
1 x CPU fan header
4 x System fan headers
1 x USB 3.1 header (Gen1 5Gb/s)
2 x USB 2.0 headers
1 x TPM header
1 x COM port header
1 x Front audio header
1 x S/PDIF-In header
1 x S/PDIF-Out header
1 x Front panel header
1 x HDD back plane board header
2 x SATA GPIO header
1 x JTAG header
1 x Chassis intrusion header
1 x BIOS recovery jumper
1 x BIOS password recovery jumper
1 x ME update jumper
1 x ME recovery jumper
1 x Clear CMOS jumper
1 x CPLD jumper
1 x SMB selection jumper
1 x PMBus connector
2 x SATA DOM connectors

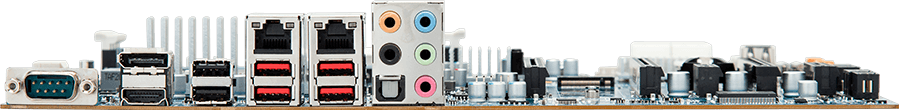

4 x USB 3.1 (Gen2 10Gb/s)
2 x USB 2.0
1 x HDMI
1 x DisplayPort
1 x COM
2 x RJ45
5 x Audio jacks
1 x Optical S/PDIF-Out

1 x TPM header

Windows 10 (x64)

-

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Operating temperature: 0°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

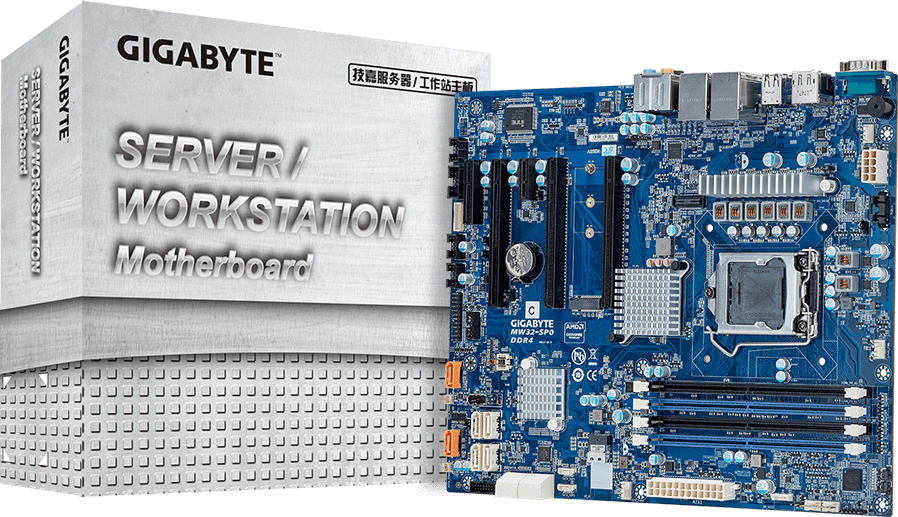

1 x MW32-SP0
1 x I/O shield
1 x Quick start guide
4 x SATA III 6Gb/s cables
1 x CrossFire™ bridge
Box dimensions: 360 x 330 x 80 mm

10 x MW32-SP0
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm

Retail: 9MW31SP0MR-00
Bulk: 9MW31SP0NR-00
TPM module: 9CTM000NR-00 (as an option)
