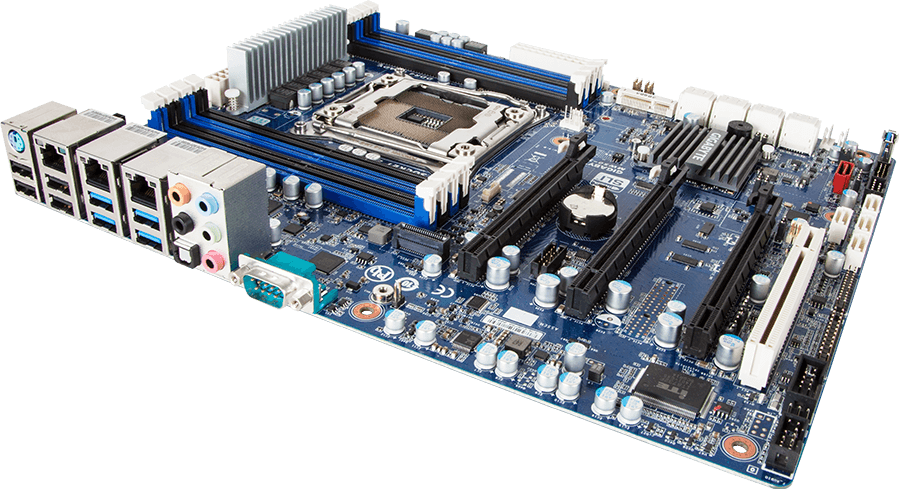

MW50-SV0 (rev. 1.0)
Intel® C612 chipset
- Intel® Xeon® processor E5-1600 & E5-2600 V3 / V4 product families
- 8 x RDIMM/LRDIMM ECC DDR4 DIMM slots
- 3 x GbE LAN port (Intel® I210 + I218)
- Supports 2-way, 3-way NVIDIA® SLI™ / AMD® CrossFireX™
- 13 x SATA III 6Gb/s
- 1 x mSATA slot
- 1 x USB 3.0 header + 1 x internal USB 3.0 port
1/4
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
ATX
305W x 244D (mm)
305W x 244D (mm)
CPU
Supports:
- Intel® Xeon® E5-2600 V3 processors
- Intel® Xeon® E5-1600 V3 processors
- Intel® Xeon® E5-2600 V4 processors
- Intel® Xeon® E5-1600 V4 processors
Socket
1 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset
Intel® C612
Memory
8 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
LAN
2 x GbE LAN ports (Intel® I210)
1 x GbE LAN port (Intel® I218)
1 x GbE LAN port (Intel® I218)
Video
-
Audio
Realtek® ALC887 controller
Supports 2/4/5.1/7.1 channel configurations
Supports 2/4/5.1/7.1 channel configurations
SAS
-
SATA
8 x SATA III 6Gb/s ports
4 x SATA III 6Gb/s ports (Marvell 88SE9230® controller)
1 x SATA III 6Gb/s port supporting SATA DOM
1 x mSATA 6Gb/s slot
4 x SATA III 6Gb/s ports (Marvell 88SE9230® controller)
1 x SATA III 6Gb/s port supporting SATA DOM
1 x mSATA 6Gb/s slot
RAID
Intel® SATA RAID 0/1/10/5
Marvell® SATA RAID 0/1/10
Marvell® SATA RAID 0/1/10
Expansion Slots
2 x PCIe x16 (Gen3 x16 bus) slots
1 x PCIe x16 (Gen3 x8 bus) slot
1 x PCIe x4 mezzanine card slot
1 x PCI slot
Support NVIDIA® SLI™ technologies
1 x PCIe x16 (Gen3 x8 bus) slot
1 x PCIe x4 mezzanine card slot
1 x PCI slot
Support NVIDIA® SLI™ technologies
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
4 x System fan headers
1 x USB 3.0 vertical Type A
1 x USB 3.0 header
1 x USB 2.0 header
1 x Front audio header
1 x S/PDIF-In header
1 x PMBus connector
2 x SATA SGPIO headers
1 x Clear CMOS jumper
13 x SATA III 6Gb/s ports
1 x SATA DOM jumper
1 x Chassis intrusion header
1 x Front panel header
1 x HDD back plane board header
1 x Serial header
1 x TPM header
1 x JPI header
1 x BIOS recovery jumper
2 x PCIe switch jumpers
1 x PMBus selection jumper
1 x 8-pin ATX 12V power connector
1 x CPU fan header
4 x System fan headers
1 x USB 3.0 vertical Type A
1 x USB 3.0 header
1 x USB 2.0 header
1 x Front audio header
1 x S/PDIF-In header
1 x PMBus connector
2 x SATA SGPIO headers
1 x Clear CMOS jumper
13 x SATA III 6Gb/s ports
1 x SATA DOM jumper
1 x Chassis intrusion header
1 x Front panel header
1 x HDD back plane board header
1 x Serial header
1 x TPM header
1 x JPI header
1 x BIOS recovery jumper
2 x PCIe switch jumpers
1 x PMBus selection jumper

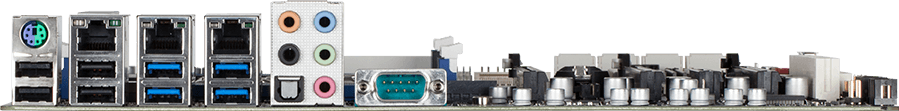

Rear I/O
4 x USB 3.0
4 x USB 2.0
1 x PS/2
1 x Serial
3 x RJ45
5 x Audio jacks
1 x Optical S/PDIF-Out
4 x USB 2.0
1 x PS/2
1 x Serial
3 x RJ45
5 x Audio jacks
1 x Optical S/PDIF-Out
TPM
1 x TPM header
OS Compatibility
Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Windows 7 Ultimate SP1 (x86/x64)
Windows 8 Enterprise (x86/x64)
Windows 8.1 Enterprise (x86/x64)
Windows 10 (x64)
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Windows 7 Ultimate SP1 (x86/x64)
Windows 8 Enterprise (x86/x64)
Windows 8.1 Enterprise (x86/x64)
Windows 10 (x64)
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
Board Management
Intel® Active Management Technology
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MW50-SV0
1 x Driver CD
1 x I/O shield
1 x User manual
2 x SATA III 6Gb/s cables (500mm)
1 x Mini-PCIe card bracket
1 x 2-way SLI™ bridge
1 x 3-way SLI™ bridge
Box dimensions: 360 x 330 x 80 mm
1 x Driver CD
1 x I/O shield
1 x User manual
2 x SATA III 6Gb/s cables (500mm)
1 x Mini-PCIe card bracket
1 x 2-way SLI™ bridge
1 x 3-way SLI™ bridge
Box dimensions: 360 x 330 x 80 mm
Bulk Packaging Content
10 x MW50-SV0
10 x I/O shields
Carton dimensions: 473 x 600 x 495 mm
10 x I/O shields
Carton dimensions: 473 x 600 x 495 mm
Reference Numbers
Retail: 9AW50SV0MR-00
Bulk: 9MW50SV0NR-00
Bulk: 9MW50SV0NR-00
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Firmware
- All
- All
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows Server 2008 R2 64bit
- Windows 8.1 64bit
- Windows 8.1 32bit
- Windows 8 64bit
- Windows 8 32bit
- Windows 7 64bit
- Windows 7 32bit
- Windows 10 64bit
- Ubuntu 14.04 LTS x86
- Ubuntu 14.04 LTS x64
- Ubuntu 12.04 LTS x86
- Ubuntu 12.04 LTS x64
- SLES 12 x64
- SLES 11.4 x86
- SLES 11.4 x64
- RHEL 7.2 x64
- RHEL 6.7 x86
- RHEL 6.7 x64
Audio
Audio
Version
Size
Date
Realtek Audio Driver
Version : R376
101.12 MB
2014/09/11
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Realtek Audio Driver
Version : R388
209.57 MB
2014/09/24
OS: Windows 7 32bit,Windows 7 64bit,Windows 8 32bit,Windows 8 64bit,Windows 8.1 32bit,Windows 8.1 64bit
Chipset
Chipset
Version
Size
Date
Intel® Management Engine Driver
Version : 9.1.0.1120
102.8 MB
2014/09/24
OS: Windows 7 32bit,Windows 7 64bit,Windows 8 32bit,Windows 8 64bit,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows 8.1 32bit,Windows 8.1 64bit,Windows Server 2012 R2 64bit
Intel® INF Driver
Version : 10.1.2.10
2.76 MB
2016/03/28
OS: Windows 7 32bit,Windows 7 64bit,Windows 8 32bit,Windows 8 64bit,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows 8.1 32bit,Windows 8.1 64bit,Windows Server 2012 R2 64bit,Windows 10 64bit
Intel® Management Engine Driver
Version : 11.0.1.1000
98.47 MB
2016/03/28
OS: Windows 10 64bit
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 20.7
242.15 MB
2016/03/28
OS: Windows 7 32bit,Windows 7 64bit,Windows 8 32bit,Windows 8 64bit,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows 8.1 32bit,Windows 8.1 64bit,Windows Server 2012 R2 64bit,Windows 10 64bit
Intel® LAN Driver and Utility
Version : 20.7
242.15 MB
2016/03/28
OS: Ubuntu 14.04 LTS x86,Ubuntu 14.04 LTS x64,RHEL 6.7 x86,RHEL 6.7 x64,RHEL 7.2 x64,Ubuntu 12.04 LTS x86,Ubuntu 12.04 LTS x64,SLES 11.4 x86,SLES 11.4 x64,SLES 12 x64
Intel® LAN Driver and Utility
Version : 21.1
303.94 MB
2017/03/22
OS: Windows Server 2016 64bit
SATA
SATA
Version
Size
Date
Marvell SATA/RAID Utility
Version : 4.1.0.2018
41.84 MB
2014/10/01
OS: Windows 7 32bit,Windows 7 64bit,Windows 8 32bit,Windows 8 64bit,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows 8.1 32bit,Windows 8.1 64bit,Windows Server 2012 R2 64bit
Marvell SATA/RAID Driver
Version : 1.2.0.1041
0.75 MB
2014/12/05
OS: Windows 7 32bit,Windows 7 64bit,Windows 8 32bit,Windows 8 64bit,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows 8.1 32bit,Windows 8.1 64bit,Windows Server 2012 R2 64bit
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 4.5.0.1333
3.59 MB
2016/03/28
OS: Windows 7 32bit,Windows 7 64bit,Windows 8 32bit,Windows 8 64bit,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows 8.1 32bit,Windows 8.1 64bit,Windows Server 2012 R2 64bit,Windows 10 64bit
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 4.5.0.1333
18.62 MB
2016/03/28
OS: Windows 7 32bit,Windows 7 64bit,Windows 8 32bit,Windows 8 64bit,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows 8.1 32bit,Windows 8.1 64bit,Windows Server 2012 R2 64bit,Windows 10 64bit
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 4.6.0.1085
19.4 MB
2017/03/21
OS: Windows Server 2016 64bit
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 4.6.0.1085
7.41 MB
2017/03/21
OS: Windows Server 2016 64bit
USB 3.0
USB 3.0
Version
Size
Date
Etron USB 3.0 Driver
Version : 0.119
11.42 MB
2014/09/09
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit
Intel® USB 3.0 Driver
Version : 3.0.0.33
5.17 MB
2014/09/16
OS: Windows Server 2008 R2 64bit
Etron USB 3.0 Driver
Version : 0.119
11.42 MB
2014/09/09
OS: Windows 7 32bit,Windows 8 32bit,Windows 8 64bit,Windows 8.1 32bit,Windows 8.1 64bit
VGA
VGA
Version
Size
Date
ASPEED Graphic Driver
Version : 1.03
0.57 MB
2017/08/28
OS: Windows Server 2012 R2 64bit,Windows Server 2016 64bit
BIOS
Description
Version
Size
Date
Security update for 2019.2 Intel Platform Update (IPU)
[1] Update Microcode:Hasswell-EP M6F306F2_00000043,Broadwell-EP MEF406F1_0B000038
[2] Update ACM :SINIT 3.1.3
[3] Update Update SPS 03.01.03.72.0
[1] Update Microcode:Hasswell-EP M6F306F2_00000043,Broadwell-EP MEF406F1_0B000038
[2] Update ACM :SINIT 3.1.3
[3] Update Update SPS 03.01.03.72.0
Version : R10
10.49 MB
2019/12/06
1. SPEED VBIOS update to 1.09.0 for CVE-2019-6260
2. Fixed INTEL-SA-00233
2. Fixed INTEL-SA-00233
Version : R09
10.42 MB
2019/06/17
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Firmware
Description
Version
Size
Date
Marvell 88SE9230 Firmware
Release Note: Fixed controller stability issue
Release Note: Fixed controller stability issue
Version : 1060
1.54 MB
2014/12/05
English
Support List
Description
Version
Size
Date
RESOURCES
Success Case
Video
![[CES 2022] Reimagine Your Connectivitywith 5G Technology](https://i.ytimg.com/vi/WEX5zHq7wuw/hqdefault.jpg)
![[CES 2022] Upgrade Your Everyday Life with Smart Retail Technologies](https://i.ytimg.com/vi/A9DHPAHVZMg/hqdefault.jpg)
![[CES 2022] How to Scale Up Your Smart Manufacturing?](https://i.ytimg.com/vi/LeM3UiA5aYI/hqdefault.jpg)
Media Review
Security & Technical Advisory
Others
Back to MW50-SV0
