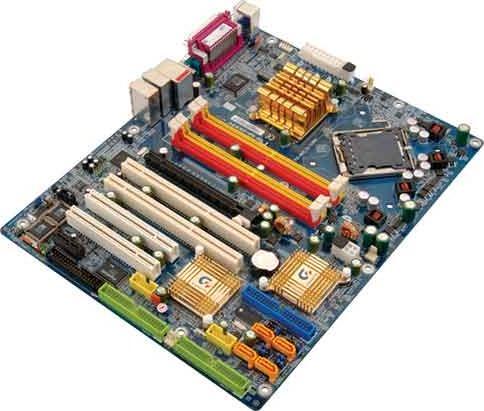

GA-4KXSV-RHLegacy | Software updates supported
- For SI Only
- Support Intel® LGA775 processor (Presler/Cedar Mill/Smithfield)
- Intel® 945G(LAKEPORT)/ICH7R/6700 PXH Chipset
- Max 4GB DDRII 533/667 ECC SDRAM module support
- One PCI-E X 16 slot & One PCI-E X1 slot & Two PCI-X 133MHz slots
- ITE® GigaRAID (0, 1)
Specifications
CPU
- Intel®Pentium®4 / Pentium® D processor
- Socket LGA775
- Supports 800/1066MHz FSB
Chipset
- Intel® 945G
- Intel® ICH7R
- Intel®6700 PXH
LAN
- Intel® 82573V Gigabit Ethernet controllers
Video
- Build in Intel®945G Chipset
Audio
- Realtek® ALC 880
RAID
- Built in Intel®ICH7R with SATA RAID 0,1,5, 0+1 without Linux support
- ITE® IT8212F built in IDE RAID 0,1, 0+1
Expansion Slots
- 2 x PCI slots 32-Bit/33MHz
- 2 x PCI-X slots 64-Bit/133MHz
- 1 x PCI-Express x1 slot
- 1 x PCI-Express x16 slot
Internal I/O
- 1 x ATA-133 connector
- 4 x Serial ATA 3Gb/s connectors
Rear I/O
- 2 x PS/2
- 4 x USB 2.0 (4 by cable)
- 1 x Parallel
- 1 x COM
- 1 x VGA
- 1 x LAN RJ45
