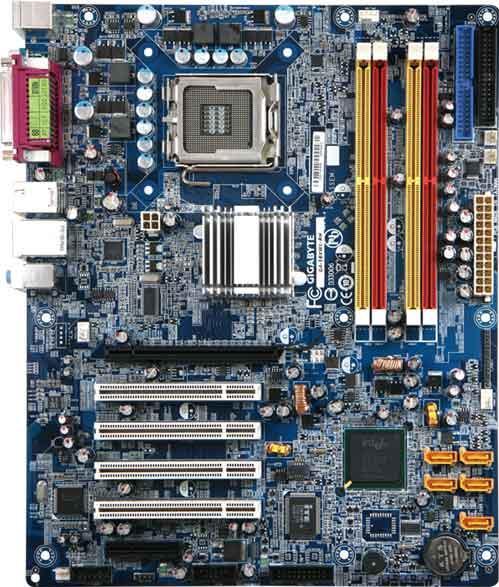

    GA-5BXWL-RH

    Legacy | Software updates supported

    Rev. 1.0
    • Intel® X38 “Bearlake-X” MCH supporting 1333/1066/800MHz FSB and ICH9R with RAID function
    • Supporting Intel dual-core/quad-core desktop processor included of upcoming 45nm “Wolfdale” and “Yorkfield” with 47 SSE4 instructions, larger L2 cache, and Super Shuffle Engine
    • 4 DIMM supporting up to 8GB dual-channel un-buffered ECC DDR2-533/667 memory
    • 1 PCIe x16, 1 PCIe x8 (x4 bandwidth), and 4 PCI 32bit/33MHz
    • 5 SATA 3Gb/s ports supporting RAID 0/1/5, and 1 ATA100.
    • 8 USB 2.0 ports, 1 IEEE 1394 ports
    • On board HD audio codec (Realtek ALC262)
    • Dual Broadcom 5728 GbE port
    • TPM 1.2 (Infineon SLB9635) for security feature
    • ATX form factor

    SPECIFICATIONS

    CPU
    • Intel®Pentium®4 / Pentium® D processor
    • Socket LGA775
    • Supports 800/1066/1333MHz FSB
    Chipset
    • Intel® X38
    • Intel®82801IR ICH9 RAID
    LAN
    • Broadcom® BCM5786KMLG Gigabit Ethernet controller
    Video
    • Build in Intel®x38 Chipset
    Audio
    • Realtek® ALC 262
    RAID
    • SW RAID 0, 1, 5, 10 in Windows
    • Optional SW RAID 0, 1, 10 in Linux via firmware upgrade
    Expansion Slots
    • 1 x PCI-E x4
    • 1 x PCI-E x16
    • 3 x PCI 32-Bit/33MHz
    Internal I/O
    • 1 x Floppy
    • 1 x IDE
    • 1 x IEEE1394
    • 1 x Audio
    • 5 x Serial ATA 3Gb/s connectors
    • 2 x USB 2.0
    Rear I/O
    • 2 x PS/2
    • 4 x USB 2.0
    • 1 x Parallel
    • 1 x COM
    • 1 x IEEE1394
    • 3 x Audio jacks
    • 1 x LAN RJ45
    [#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
    [#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
    [#3] All trademarks and logos are the property of their respective owners.

    SUPPORT

    • Downloads
      • Driver
      • BIOS
    • Manual
    • Support List
      • OS
      • QVL
    Online Support
    Driver
    BIOS
    OS
    QVL
    • All
    • All
    • Windows XP 64bit
    • Windows XP 32bit
    • Windows Vista 64bit
    • Windows Vista 32bit
    • Windows Server 2008 64bit
    • Windows Server 2008 32bit
    • Windows Server 2003 32bit
    • Windows 2000
    Default
    Default
    Version
    Size
    Date
    -
    0.32 MB
    Dec 15, 2008
    Download
    OS: Windows 2000,Windows XP 32bit
    Audio
    Audio
    Version
    Size
    Date
    -
    21.99 MB
    Dec 15, 2008
    Download
    OS: Windows Vista 32bit,Windows Vista 64bit
    Chipset Update Patch
    Chipset Update Patch
    Version
    Size
    Date
    -
    2.09 MB
    Dec 15, 2008
    Download
    OS: Windows XP 32bit,Windows XP 64bit,Windows Vista 32bit,Windows Vista 64bit
    Intel Chipset INF for GS-R22T61 / GS-R22T81
    Version : 9.1.0.1014
    2.39 MB
    Nov 23, 2009
    Download
    OS: Windows 2000,Windows XP 32bit,Windows XP 64bit,Windows Server 2003 32bit,Windows Vista 32bit,Windows Vista 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit
    LAN
    LAN
    Version
    Size
    Date
    -
    25.93 MB
    Dec 15, 2008
    Download
    OS: Windows 2000,Windows XP 32bit
    -
    0.43 MB
    Dec 15, 2008
    Download
    OS: Windows XP 32bit,Windows Vista 32bit
    BIOS
    Description
    Version
    Size
    Date
    1.Fix PERR/SERR behavior abnormal during POST.2. Add Microcode E-0/R-0(Wolfdale/Yorkfield). | Revision A07 | 3. Fix E7300 CPU L2 size incorrect.4. Fix Vista DTM "UAA Test" test failed.
    Version : P6
    0.45 MB
    Apr 06, 2009
    Download
    1. Fix Used Promise FastTrak PCI card it will has garbage code under BIOS setup menu.2. Adjust "CPU temperature" & "SMART FAN" for E8400 CPU.3. Add solution for avoid TPM Lifetime Lock be Locked by CMOS data incorrectly.4. Used PECI value to instead CPU temperature.5. Change Smart Fan rule by PECI.
    Version : P7
    0.45 MB
    Apr 06, 2009
    Download
    (1) Fix After Enabled PATA, the PCIE RAID card used hotkey Ctrl+H will hang up.(2) Adjust got CPU temperature by formula.
    Version : p5
    0.44 MB
    Mar 28, 2009
    Download
    Warning:
    Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.

    What is a BETA?
    BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
    Manual
    Description
    Version
    Size
    Date
    1. User's manual for GA-5BXWL-RH
    Version : 1001
    0.68 MB
    Jul 24, 2008
    Download
    English
    Description
    Version
    Size
    Date
    OS Support List
    Version : 1.0
    0.02 MB
    Mar 19, 2008
    Download
    1. OS Compatibility for GA-5BXWL-RH
    Description
    Version
    Size
    Date
    QVL Support List
    Version : 1.0
    0.05 MB
    Mar 19, 2008
    Download
    1. QVL for GA-5BXWL-RH
