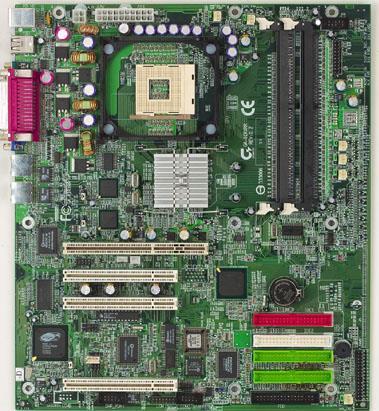

GA-8IRXRR(D)Legacy | Firmware updates supported
- Supports single Intel® Pentium 4 processor(Socket 478/400Mhz FSB up to 2.4 Ghz)
- Intel® 845D/ICH2 Chipset
- Max. 2GB Un-Buffered (ECC) DDR-200 Memory in 2 DIMM Slots
- Promise® PDC 20276 Chip supports IDE RAID
- Dual ATA-100 and Dual ATA-133 channels with RAID 0,1
- Dual Intel® 82550PM 10/100 Mps Fast Ethernet with Advanced Software Functions
- Winbond® W83910F BMC Chip with IPMI 1.0 Support
- ATX 12"W x 10.5"D, ATX +12V Auxiliary Power, VRM 9.0
- Specifications
- Support
- Related Resources
Specifications
Form Factor
12”W x 10.5”D
CPU
- Supports Intel® P4 Processor up to 2.4 GHz
- 400 Mhz FSB
- Socket 478
Chipset
Intel® Brookdale 845D/ICH2
Memory
Supports DDR-200
Video
ATI Rage-XL on board with 8MB memory
IDE / SCSI
- Promise® PDC 20276 RAID Controller
- Dual ATA-133 IDE Channels
- Dual ATA-100 IDE Channels
RAID
Dual ATA-133 IDE Channels with RAID 0,1
Expansion Slots
4 x PCI 32/33MHz PCI Slots
