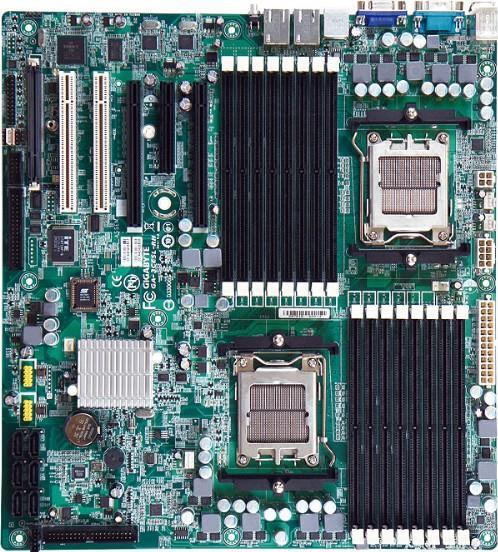

GA-3CESL3-RHLegacy | Software updates supported
Nvidia nForce Professional 3600
- Up to two AMD Opteron processors 2400 series.
- Up to 16 DIMMs of registered DDR2 memory.
- Well-rounded expansion: one PCIe x16, one PCIe x8, one PCIe x4, two PCI, and one SO-DIMM IF.
- 2 ports GbE provide ample network bandwidth.
- Optional IPMI 2.0 and iKVM module providing secure IP-based remote server management.
- Specifications
- Support
- Related Resources
Specifications
Form Factor
- SSI EEB (12" x 13")
CPU
- Dual AMD Opteron processor 2400 series
Chipset
- Nvidia nForce Professional 3600
Memory
- 16 DDR2 DIMM sockets support registered
- 4 channel native 533/ 667/ 800MHz
LAN
- 2 Gigabit LAN (Dual Marvell 88E1116)
Video
- XGI Volari Z9s 32MB DDR2
SATA
- 6 ports SATA 3Gbps via Nvidia nForce Professional 3600
RAID
- Nvidia NVRAID 0/ 1/ 0+1/ 5/ JBOD
Expansion Slots
- 1 PCI Express 1.0 x16
- 1 PCI Express 1.0 x8 (x16 mechanical)
- 1 PCI Express 1.0 x4 (x8 mechanical)
- 2 PCI
- 1 SO-DIMM IF
Board Management
- Optional IPMI 2.0 module: MMDS/ MMTS
- Optional iKVM module: MMTS1
Reference Numbers
- 9M3CESL30R-00
