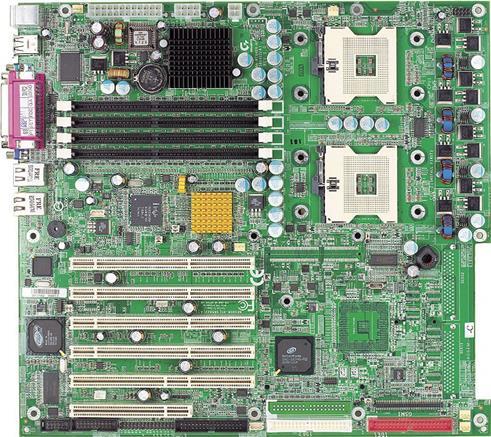

GA-8EGXDR-ECLegacy | Firmware updates supported
- ServerWorks® CMIC-SL, CSB6, CIOB-X2, ATI® Rage XL 8MB
- Dual Intel® Xeon™ Processors with 512KB L2 Cache (Socket 604/533MHz FSB/ Up to 2.8GHz)
- Max. 4GB Registered (ECC) DDR-266 Memory in 4 DIMM Slots
- Supports 1 PCI-X Slots with 100MHz, 1 PCI-X Slot with 133MHz, 2 PCI-X Slot with 64/66MHz
- 2 ATA-100 channels
- Intel® 82550PM 10/100 Mbps Fast Ethernet and RC82545EM PCI-X Gigabit Ethernet with Advanced Software Functions
- EATX 12”W x 13”D, SSI 3.0 Power (24-Pin, 8-Pin, 4-Pin, 12V. Auxiliary), VRM 9.1
- Optional IPMI 1.0 Module for System Monitoring
- Specifications
- Support
- Related Resources
Specifications
CPU
- Supports Dual Intel® Xeon(512KB L2 Cache) up to 2.8 GHz
- 533 Mhz FSB
- Socket 604
Chipset
- ServerWorks® CMIC-SL/CSB6 CIOB-X2(PCI-X)
LAN
- Intel® 82545EM Gigabit Controller
- Intel® 82550PM 10/100 Controller
- Supoorts Intel® ProServer Adapter Utilities:
- Wake On LAN (WOL)
- Adapter Fault Tolerance (AFT)
- Adaptive Load Balancing (ALB)
- EtherChannel* (FEC/GEC)
Video
- ATI® Rage-XL on board with 8MB memory
IDE / SCSI
- Dual ATA 100 IDE channels
Expansion Slots
- 1 x PCI-X 133MHz
- 1 x PCI-X 100MHz
- 1 x PCI-X 66MHz
- 1 x PCI 32/33MHz
Rear I/O
- 2 x PS/2
- 2 x USB 1.1
- 1 x COM
- 1 x LPT
- 2 x LAN RJ45
